NPM-TT2 EJM1EE-MB-05M-03
Maintenance
5-2
Cleaning the nozzle
holder 1
(3-nozzle head (option))
∗∗∗∗∗

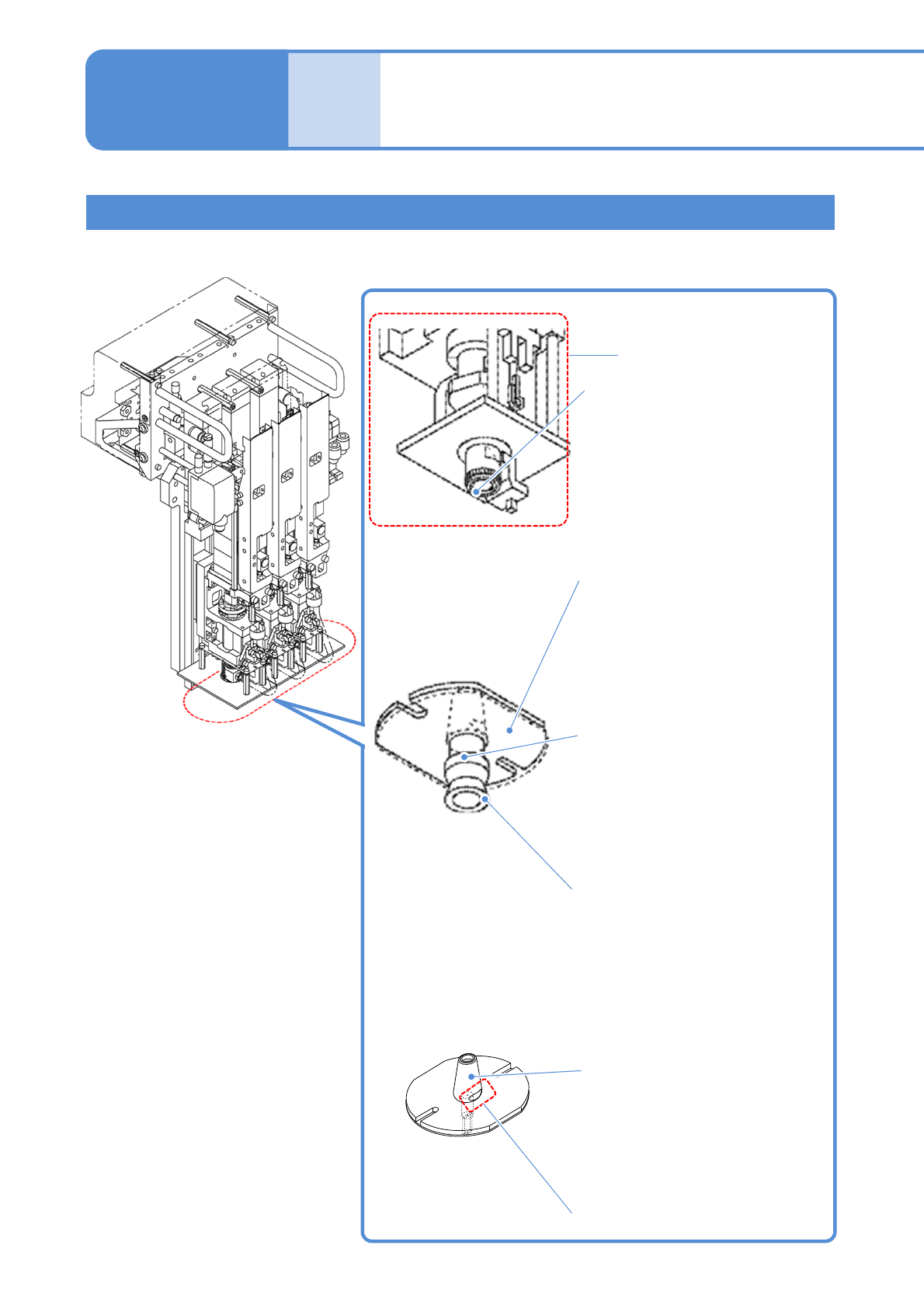

Cleaning parts
Nozzle holder taper surface
(If dust settles, it could cause a
pickup error or affect placement
accuracy due to air leaks caused
by the nozzle holder taper surface
that cannot keep in absolute
contact with the nozzle taper
surface while the nozzle is
securely fixed in place)
Nozzle reflector
●The reflector, made of black-
resin, is covered with special
coating that helps prevent
scratches. It recognizes
components by reflecting LED
light. (If dust settles, it could
cause recognition errors)
Pickup pad
●For the purpose of achieving
more stable pickups, the rubber
pad is attached to the nozzle tip.
(Cracks in the pickup pad could
cause a pickup error due to air
leaks)
Nozzle tip (Nozzle section)
●Picks up components.
(If dust settles on the side of the
tip, it could casts a shadow
during recognition, thus causing
a recognition error. And also, if
dust settles on the pickup hole,
it could cause a pickup error)
Nozzle taper surface
●The part that is grasped in the
chuck of the placement head’s
nozzle holder. (If dust settles on
the taper surface and the
chucking groove, it could cause
air leaks or chucking problem)
5-2-1
Nozzle holder
Chucking groove
Tool used: Air blow gun, lint free cloth, cotton swab, Allen wrench, (2.5 mm, supplied), spanner (7 mm)
Time required: 30 minutes per head
NPM-TT2 EJM1EE-MB-05M-03
ACTIVATION
Every
140
hours
PeriodicPeriodicPeriodic
inspection
Removing the nozzle
5-2-2
●For the rear,
3
Remove the nozzle
●Pull it straight out. If pulled out at an angle, the clamp claws could
be damaged.
NOTICE
●Move the head to the position where your
workability enhances.
●Hold and pull down the edge of the nozzle
reflector.
To
4
1
2
Detach the tray
feeder or the
feeder cart
●For a tray feeder
(→ P.14-8)
●For a feeder cart
(→ P.3-2)
