NPM- TT2 EJ M1EE-MB-05M-0 3 Every 140 hours Periodic Periodic Periodic inspection 5-2 -4 7 Clean with an air blow gun 8 Attach the nozzle filter Spanner (7 mm) (for rotation stop) ● The filter is small, so be careful not…
NPM-TT2 EJM1EE-MB-05M-03
Maintenance
5-2
Cleaning the nozzle
holder 2
(3-nozzle head (option))

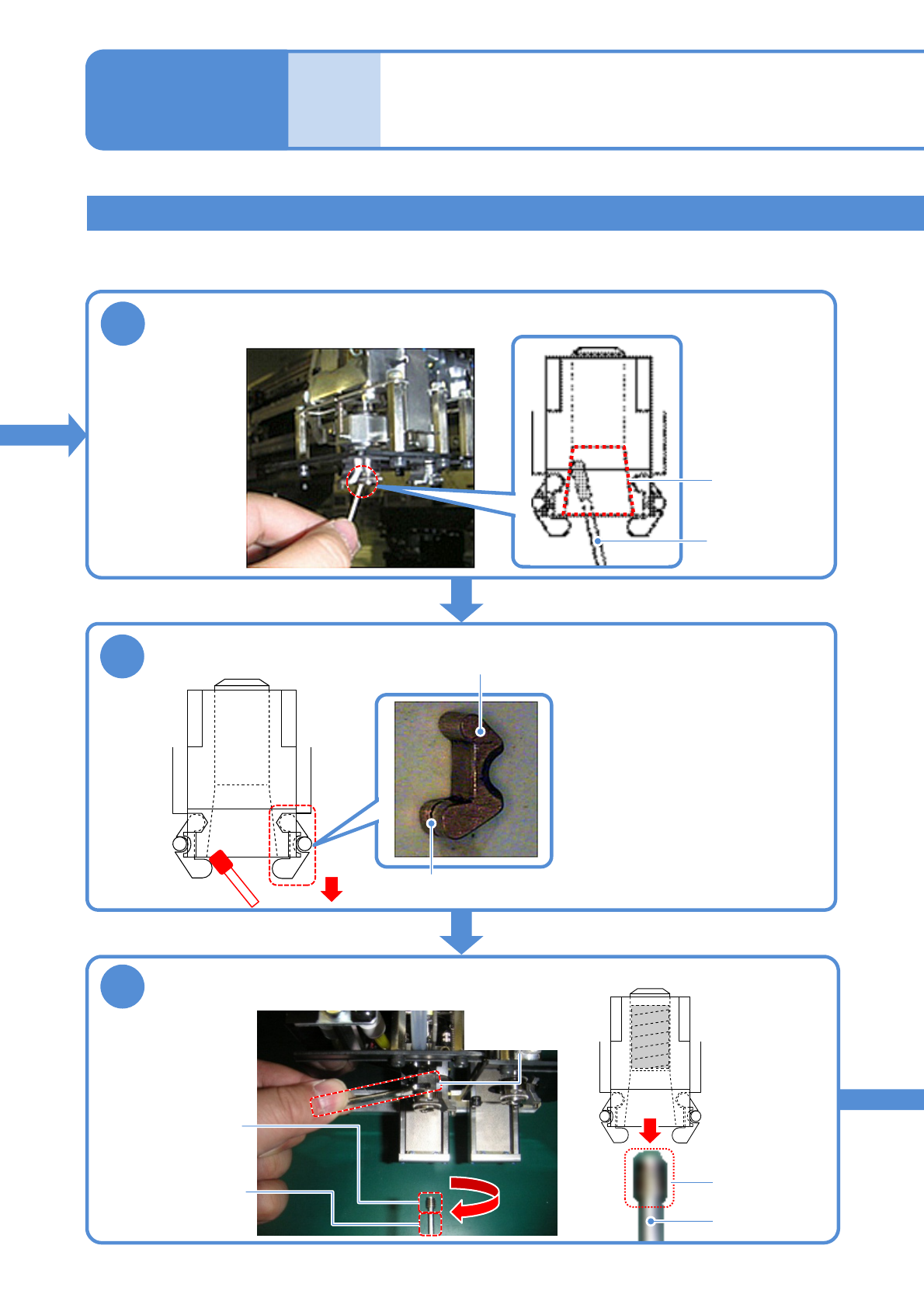

5-2-3
6
Remove the nozzle filter
Nozzle holder
Spanner (7 mm)
(for rotation stop)
Allen wrench
Nozzle filter
Nozzle filter
Allen wrench: Turn it
counterclockwise as
viewed from below
Cleaning the nozzle holder
4
Clean the nozzle holder taper surface
Nozzle holder
taper surface
5
●Wipe off grease adhering to any
parts other than the oil groove
with a cotton swab.
●Grease: BARRIERTA IEL/V
Lubricate the oil groove with
grease
Clamp claw
Oil groove (1 location)
Cleaning solvent
dampened swab
NPM-TT2 EJM1EE-MB-05M-03
Every
140
hours
PeriodicPeriodicPeriodic
inspection

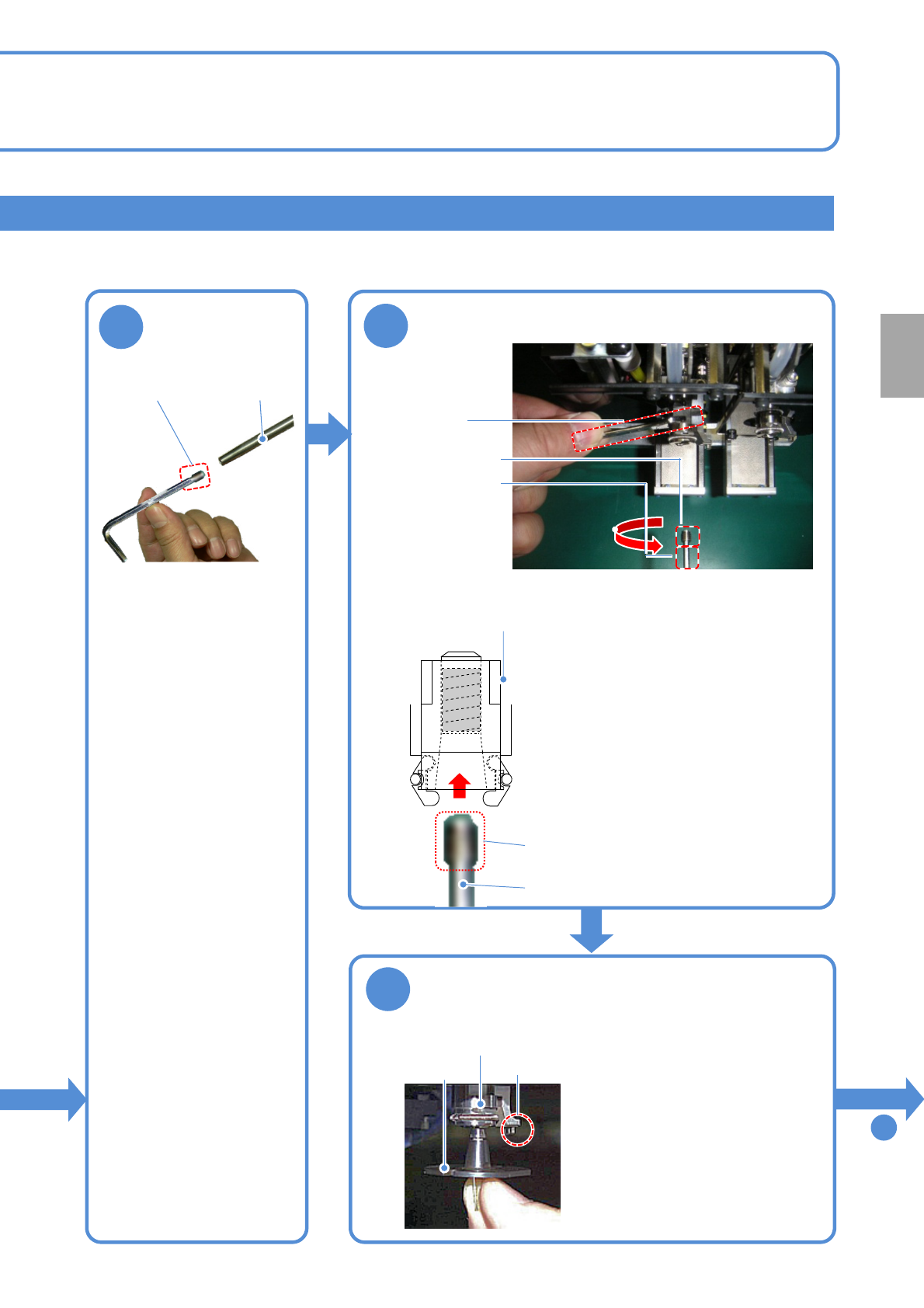

5-2-4
7
Clean with an air
blow gun
8
Attach the nozzle filter
Spanner (7 mm)
(for rotation
stop)
●The filter is small, so be careful
not to drop it.
●Spread cloth over the machine in
advance to prevent the filter from
dropping inside the machine.
●If you cannot remove dust, replace
the filter.
Filter No.: N610009394AC
Nozzle holder
Allen wrench
Nozzle filter
Nozzle filter
Allen wrench:
Turn it clockwise
as viewed from
below.
9
Check the θ-direction stopper
Nozzle holder
Nozzle
θ-direction stopper
●Set it so that the protrusion of the
θ -direction stopper is aligned
with the narrower groove on the
nozzle brim. If set in reverse, the
placement accuracy is reduced
due to backlash.
To
10
Nozzle filter
Air blow
gun (tip)
●Blow in the opposite
direction of the Allen
wrench insertion. The
filter is small so ensure
that it is not blown off.
NPM-TT2 EJM1EE-MB-05M-03
Maintenance
5-2
Cleaning the nozzle
holder 3
(3-nozzle head (option))
5-2-5
10
Attach the nozzle
∗∗∗∗∗
Inscription
(nozzle No.)
Narrow groove
Wide groove
Nozzle taper surface
●Align the narrow groove with
the θ -direction stopper and
lift the nozzle vertically.
●Check if it is grasped in
chuck.
●Make sure that the nozzle
attachment position is correct.
Attaching the nozzle
11
Attach the tray
feeder or the
feeder cart
●For a tray feeder
(→ P.14-8)
●For a feeder cart
(→ P.3-2)
