NPM-TT2 EJM1EE-MB-05M-03
ACTIVATION
Maintenance
5-6
5-6

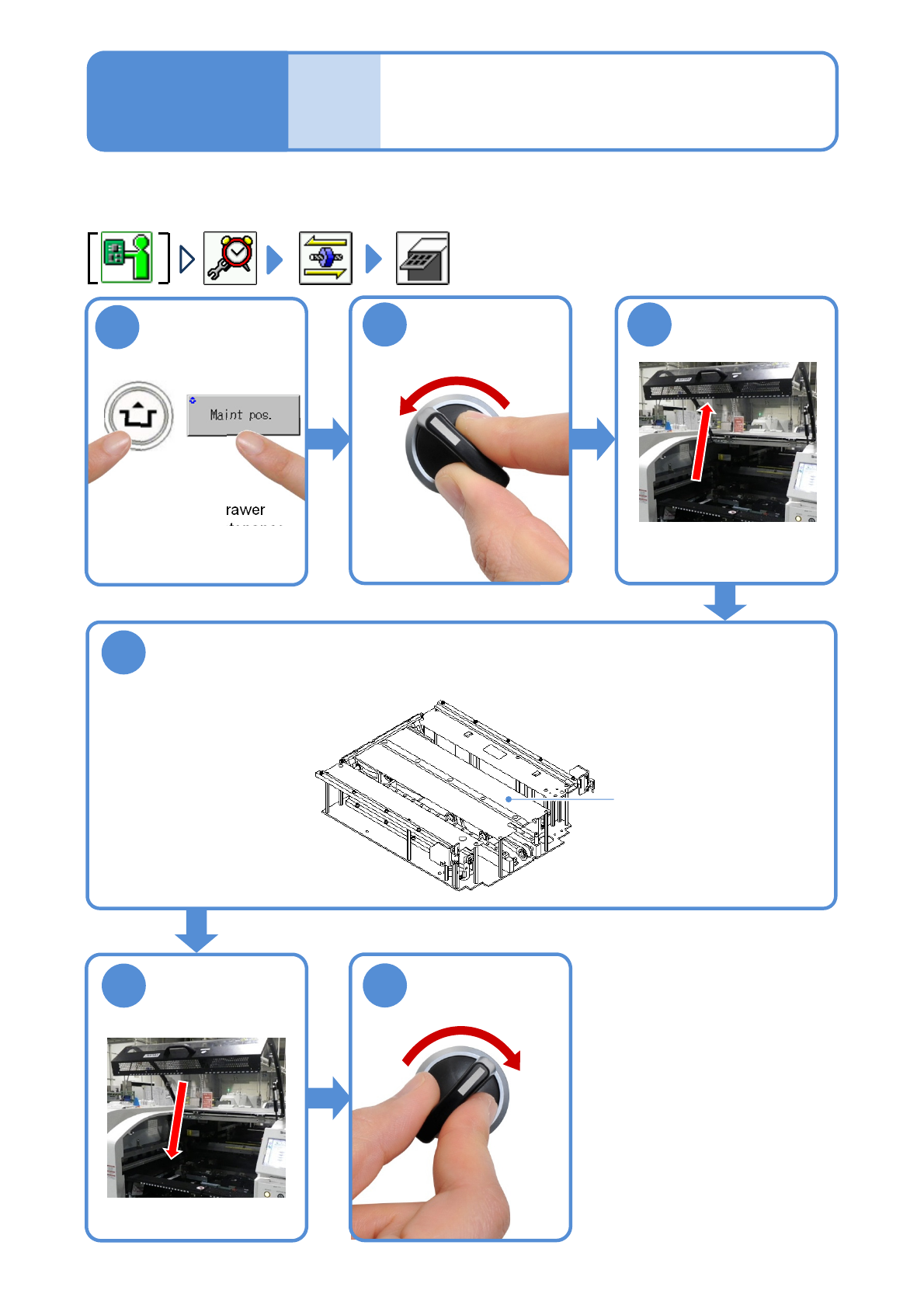

Describes cleaning of the table surface of the tray feeder drawer.
Tool used: Lint free cloth Time required: 5 minutes
●Before cleaning it, ensure that the magazine is removable. (→P.6-13)
4
5
SERVO
ON
6
Tray feeder drawer
table surface
Clean the table surface
●Wipe off with a soft lint free cloth.
(The tray feeder drawer
moves to the maintenance
position)
1
2
OFF
SERVO
3
Cleaning the table surface
(tray feeder drawer (option))
NPM-TT2 EJM1EE-MB-05M-03
Maintenance
5-7
5-7-1
Every
140
hours
PeriodicPeriodicPeriodic
inspection
Connector
Describes checking of the connector.
Tool used: Flashlight, vacuum cleaner, brush and tweezers Time required : 15 minutes per location
●Perform checking after all intelligent feeders are removed.
(→P.2-4-1 ‘Preparation of the intelligent feeder’ in “Operating Procedure”)
●Do not use an air blow gun. Doing so may scatter dust and chips to the machine, having a bad influence.
●Also regularly check and clean intelligent feeders as well.
(→ “Intelligent feeder” operating instruction), (→ "Intelligent Stick Feeder" operating manual)
Check if a connector is not deformed or damaged, and insertion or adhesion of foreign materials
inside/outside of the connector. Use a flashlight to check inside of the connector.
If any foreign material is found, carefully remove it not to damage the connector using thin tweezers. Clean
dust with a vacuum cleaner or a brush.
Pay full attention to your surroundings and keep a safe distance
from people around you while moving the feeder cart
(Collisions with the feeder cart may result in injury.)
WARNING
●If any abnormality is found, stop using
the 13-slot feeder or feeder cart and
contact us, a sales distributor or an
agency.
Normal state
Abnormal state (cases)
13-slot feeder
Feeder cart
Checking connector
(13-slot feeder, Feeder cart (option))
NPM-TT2 EJM1EE-MB-05M-03
5-7-2
