Maintenance

5-7

5-7-1

Every

140

hours

PeriodicPeriodicPeriodic

inspection

Connector

Describes checking of the connector.

Tool used: Flashlight, vacuum cleaner, brush and tweezers Time required : 15 minutes per location

●Perform checking after all intelligent feeders are removed.

(→P.2-4-1 ‘Preparation of the intelligent feeder’ in “Operating Procedure”)

●Do not use an air blow gun. Doing so may scatter dust and chips to the machine, having a bad influence.

●Also regularly check and clean intelligent feeders as well.

(→ “Intelligent feeder” operating instruction), (→ "Intelligent Stick Feeder" operating manual)

Check if a connector is not deformed or damaged, and insertion or adhesion of foreign materials

inside/outside of the connector. Use a flashlight to check inside of the connector.

If any foreign material is found, carefully remove it not to damage the connector using thin tweezers. Clean

dust with a vacuum cleaner or a brush.

Pay full attention to your surroundings and keep a safe distance

from people around you while moving the feeder cart

(Collisions with the feeder cart may result in injury.)

WARNING

●If any abnormality is found, stop using

the 13-slot feeder or feeder cart and

agency.

Normal state

Abnormal state (cases)

13-slot feeder

Feeder cart

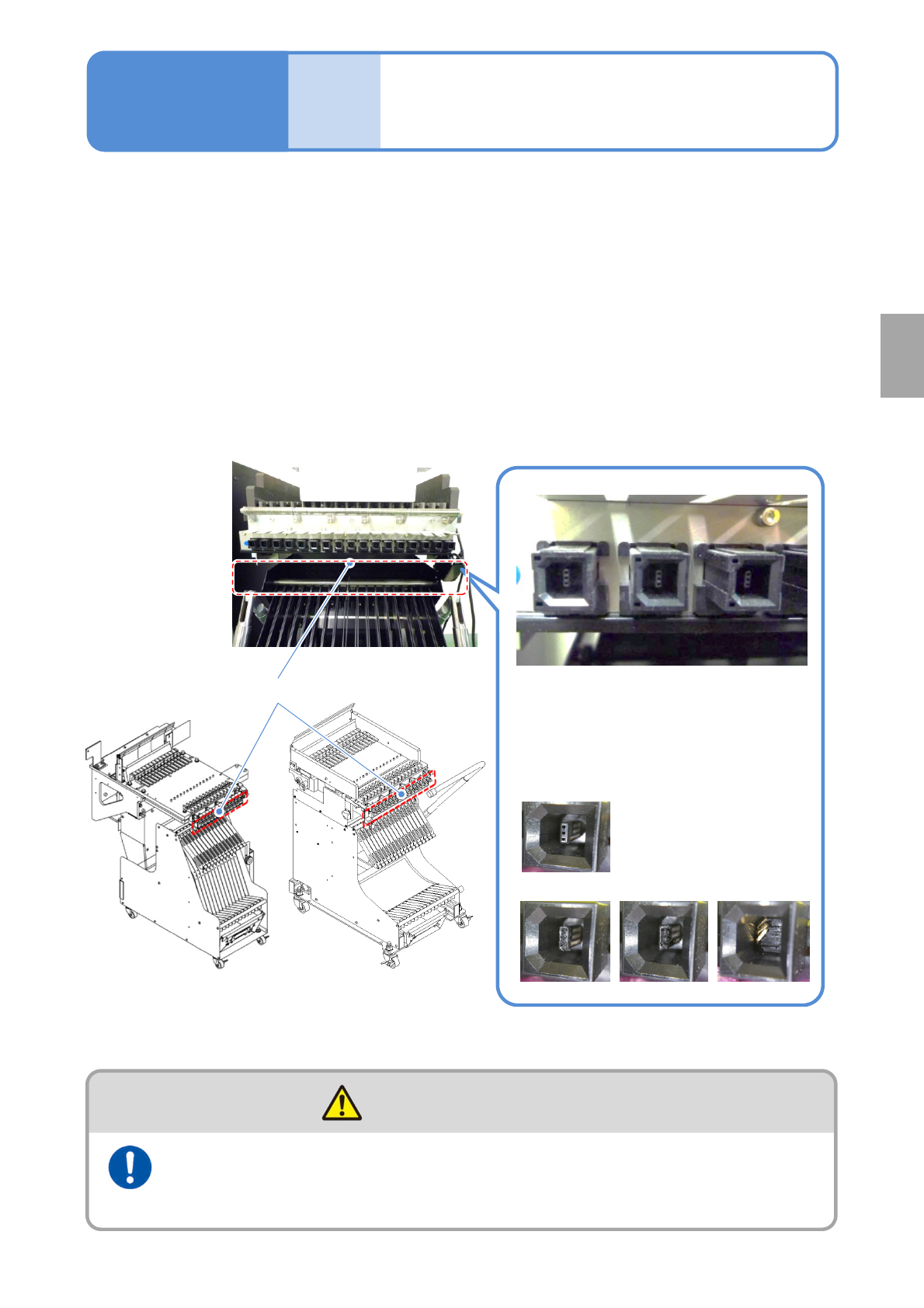

Checking connector

(13-slot feeder, Feeder cart (option))
