6 Periodic inspection Every-560- hours

100%1 / 502
NPM-TT2 EJM1EE-MB-05M-03
5-7-2
6 Periodic inspection
Every-560- hours
EJM1EJ-MB-06M-02NPM-TT2
6-1-1
1
Apply grease to the linear guides and ball splines
3
●Confirm there is no
support pins before work.
Greasing the PCB
conveyor 1

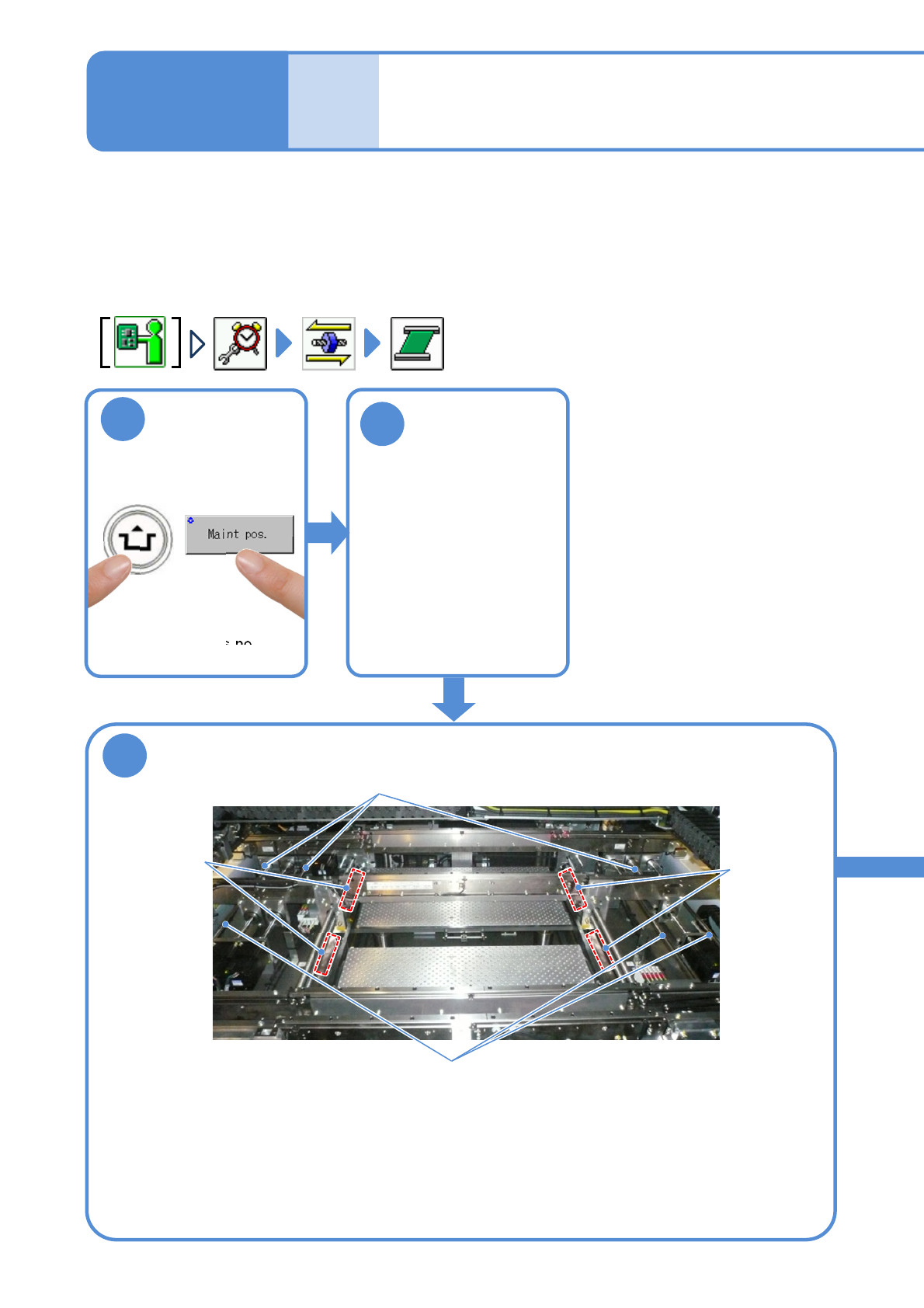

Describes the method for greasing the PCB conveyor.
Tool used: Grease gun, Time required: 25 minutes
●Apply grease to the width-adjustment ball screws and linear guides of the PCB conveyor.
●We recommend you to work in dual lane mode. (→ P.11-2-1)
2
Detach the tray
feeder or the
feeder cart
●For a tray feeder
(→ P.14-8)
●For a feeder cart
(→ P.3-2)
Linear guide
Linear guide
Ball spline
Ball spline
For a linear guide rail
●Apply grease directly the linear guide rail.
●Grease: LCG100
For a ball spline
●Apply grease directly the center of the ball spline.
●Grease: LCG100
