EJM1EJ-MB-06 M-02 NPM- TT2 6-1 -3 5 ● Make sure that there is no pin on the PCB plate. ● Continuou sly moves the width adjustment axis of the transfer conveyor at least five round. 8 ACTIVATION 7 Confirm the message 6 Gr…
EJM1EJ-MB-06M-02NPM-TT2
Grease nipple
4

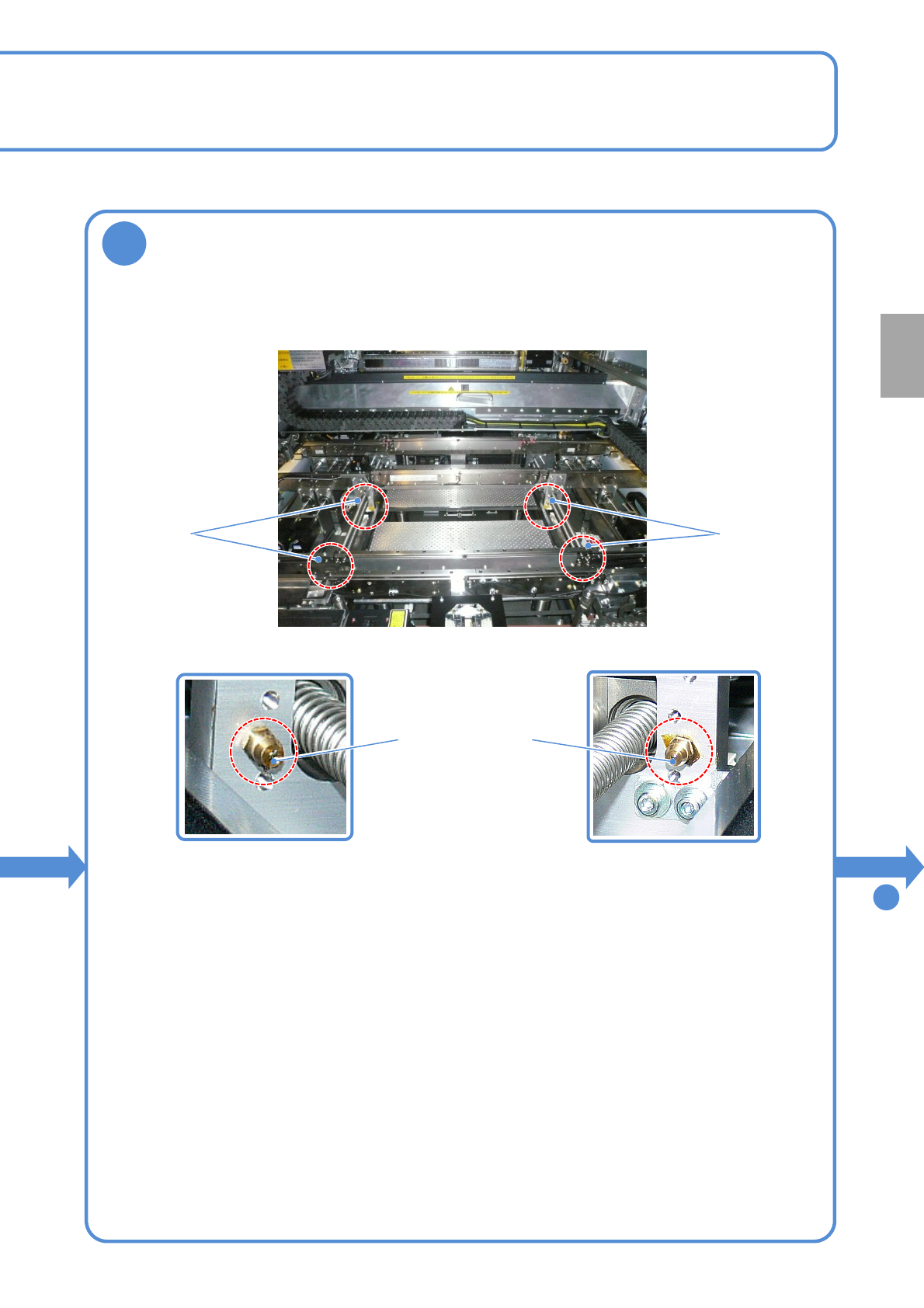

Apply grease to the width-adjustment ball
screw from grease nipple
●Apply grease via each grease nipple (on the movable rail) with the grease gun.
(2 locations on each lane) (about 0.9 cm
3
per pump)
●Grease: LCG100
6-1-2
To
5
Width-
adjustment
ball screw
Width-
adjustment
ball screw
Every
560
hours
PeriodicPeriodicPeriodicPeriodic
inspection
EJM1EJ-MB-06M-02NPM-TT2
6-1-3
5
●Make sure that there is no pin on
the PCB plate.
●Continuously moves the width
adjustment axis of the transfer
conveyor at least five round.
8

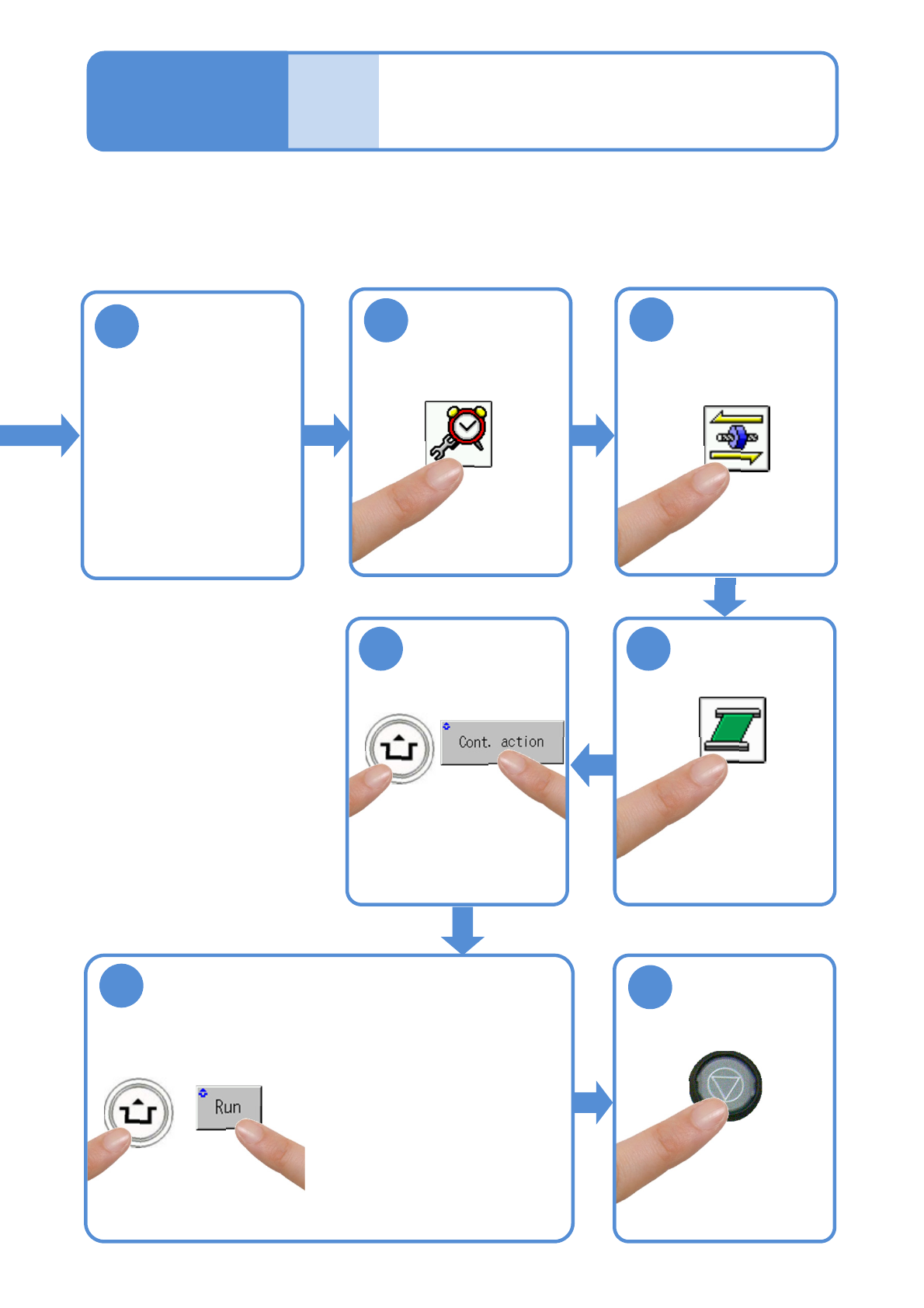

ACTIVATION
7
Confirm the message
6
Greasing the PCB
conveyor 2
Maintenance
6-1
11
STOP
10
ACTIVATION
9
Attach the tray
feeder or the
feeder cart
●For a tray feeder
(→ P.14-8)
●For a feeder cart
(→ P.3-2)
■Select a lane;
W1 or W2
EJM1EJ-MB-06M-02NPM-TT2
6-1-4
Every
560
hours
PeriodicPeriodicPeriodicPeriodic
inspection
