EJM1EJ-MB-06 M-02 NPM-TT2 6-5 -3 Maintenance 6-5 Inspecting the PCB / e xtension con v e y or (option) 2 Inspecting the extension conveyor belt Explains an inspecting method when an extension conveyor is ins talled to th…

100%1 / 502
EJM1EJ-MB-06M-02NPM-TT2
6-5-2

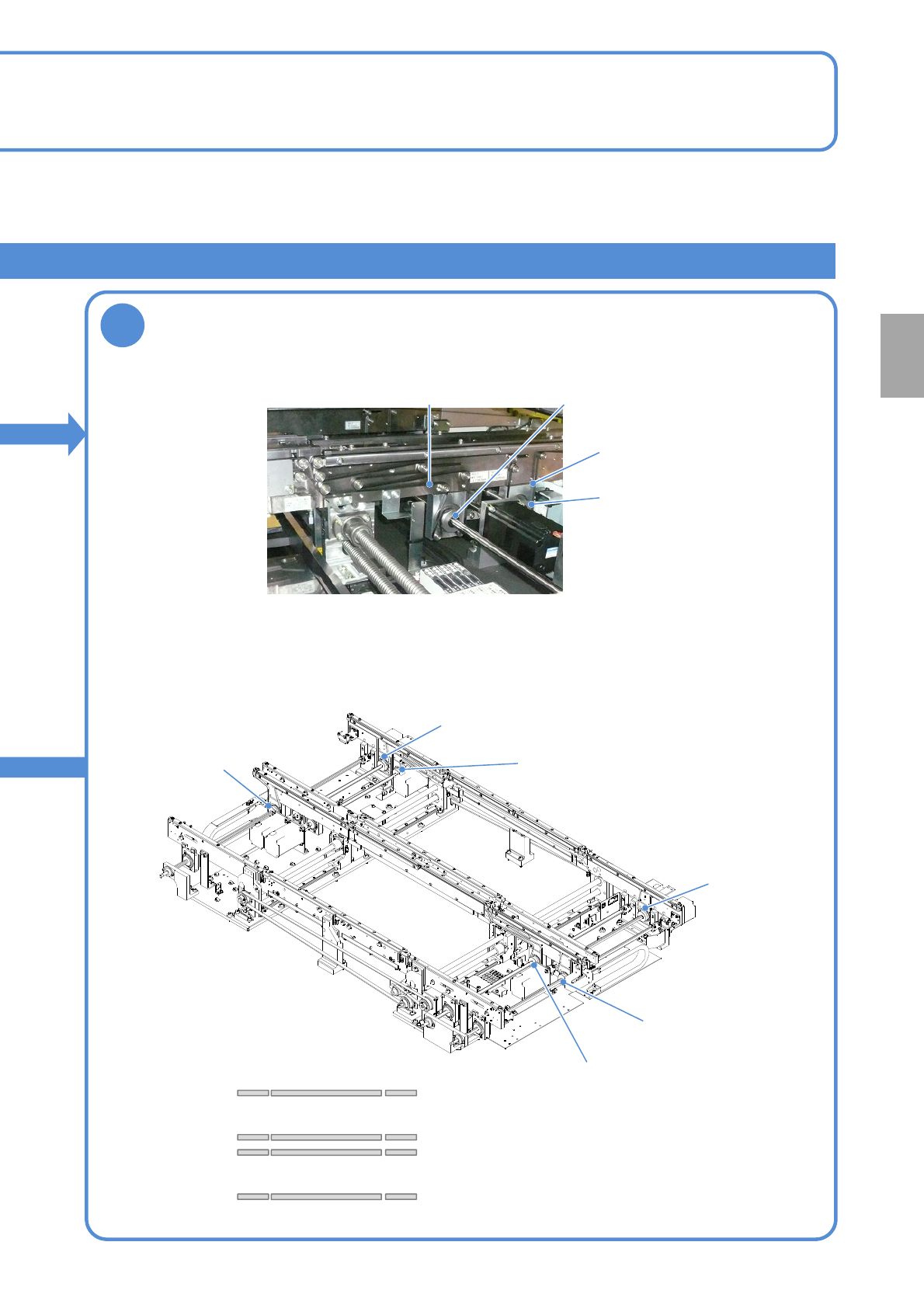

Check the belt
●Rotate the belt with hands and replace it if any flaw,
contamination or wear out is found.
●Six belts on each lane (See the figure below)
4
Every
560
hours
PeriodicPeriodicPeriodicPeriodic
inspection
Belt
(Mount section)
Pulley
(Mount section)
Belt
(Standby section)
Pulley
(Standby section)
Lane 1
Lane 2
Pulley
(Mount section)
Pulley
(Standby section)
Pulley
(Standby section)
Pulley
(Mount section)
Pulley
(Standby section)
Pulley
(Standby section)
Movable side
Fixed side
Movable side
Fixed side
Lane 1
Lane 2
EJM1EJ-MB-06M-02NPM-TT2
6-5-3
Maintenance
6-5
Inspecting the PCB /
extension conveyor
(option) 2
Inspecting the extension conveyor belt
Explains an inspecting method when an extension conveyor is installed to the downstream process.
Tool used: Belt tension meter Time required: 10 minutes
1
Adjust the
conveyor width
of 150 mm (For
better
workability)
(→[Operating
procedure] P.2-5-4)
2
3
5
Detach the tray
feeder or the
feeder cart
●For a tray feeder
(→ P.14-8)
●For a feeder cart
(→ P.3-2)
Attach the tray
feeder or the
feeder cart
●For a tray feeder
(→ P.14-8)
●For a feeder cart
(→ P.3-2)
Push the X-axis
inward
EJM1EJ-MB-06M-02NPM-TT2
6-5-4
Check the belt
●Rotate the belt with hands and replace it if any flaw,
contamination or wear out is found.
●Two belts on each lane (see the figure below)
Movable side
Fixed side
Movable side
Fixed side
Lane 1
Lane 2
Belt
Pulley
4
Every
560
hours
PeriodicPeriodicPeriodicPeriodic
inspection
