EJM1EJ-MB-06 M-02 NPM-TT2 6-5 -4 Check the belt ● Rotate the belt with hands and replace it if any flaw, contaminat ion or wear out is found . ● Two belts on each lane (see the figure below) Movable side Fixed side Movab…

100%1 / 502
EJM1EJ-MB-06M-02NPM-TT2
6-5-3
Maintenance
6-5
Inspecting the PCB /
extension conveyor
(option) 2

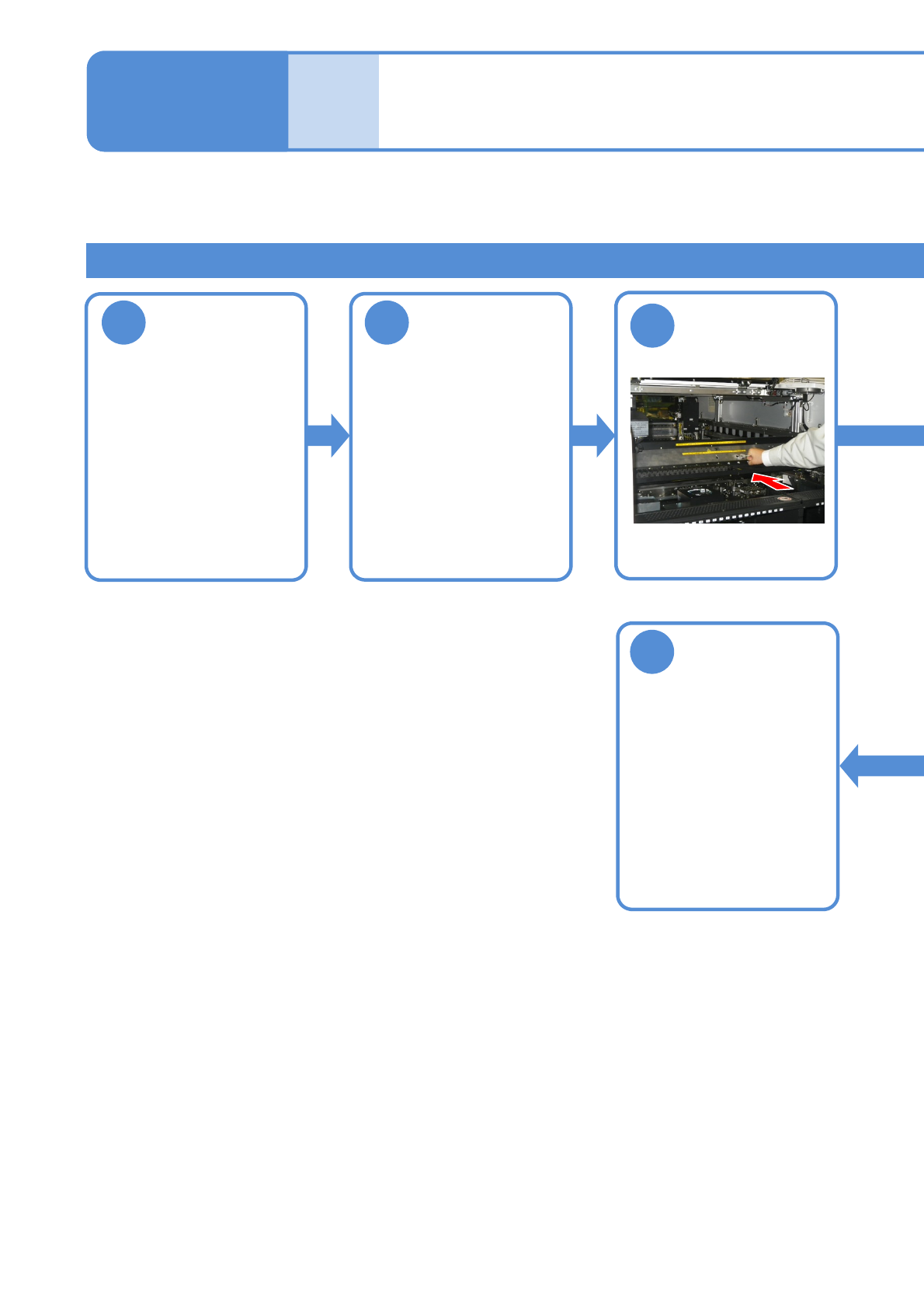

Inspecting the extension conveyor belt
Explains an inspecting method when an extension conveyor is installed to the downstream process.
Tool used: Belt tension meter Time required: 10 minutes
1
Adjust the
conveyor width
of 150 mm (For
better
workability)
(→[Operating
procedure] P.2-5-4)
2
3
5
Detach the tray
feeder or the
feeder cart
●For a tray feeder
(→ P.14-8)
●For a feeder cart
(→ P.3-2)
Attach the tray
feeder or the
feeder cart
●For a tray feeder
(→ P.14-8)
●For a feeder cart
(→ P.3-2)
Push the X-axis
inward
EJM1EJ-MB-06M-02NPM-TT2
6-5-4

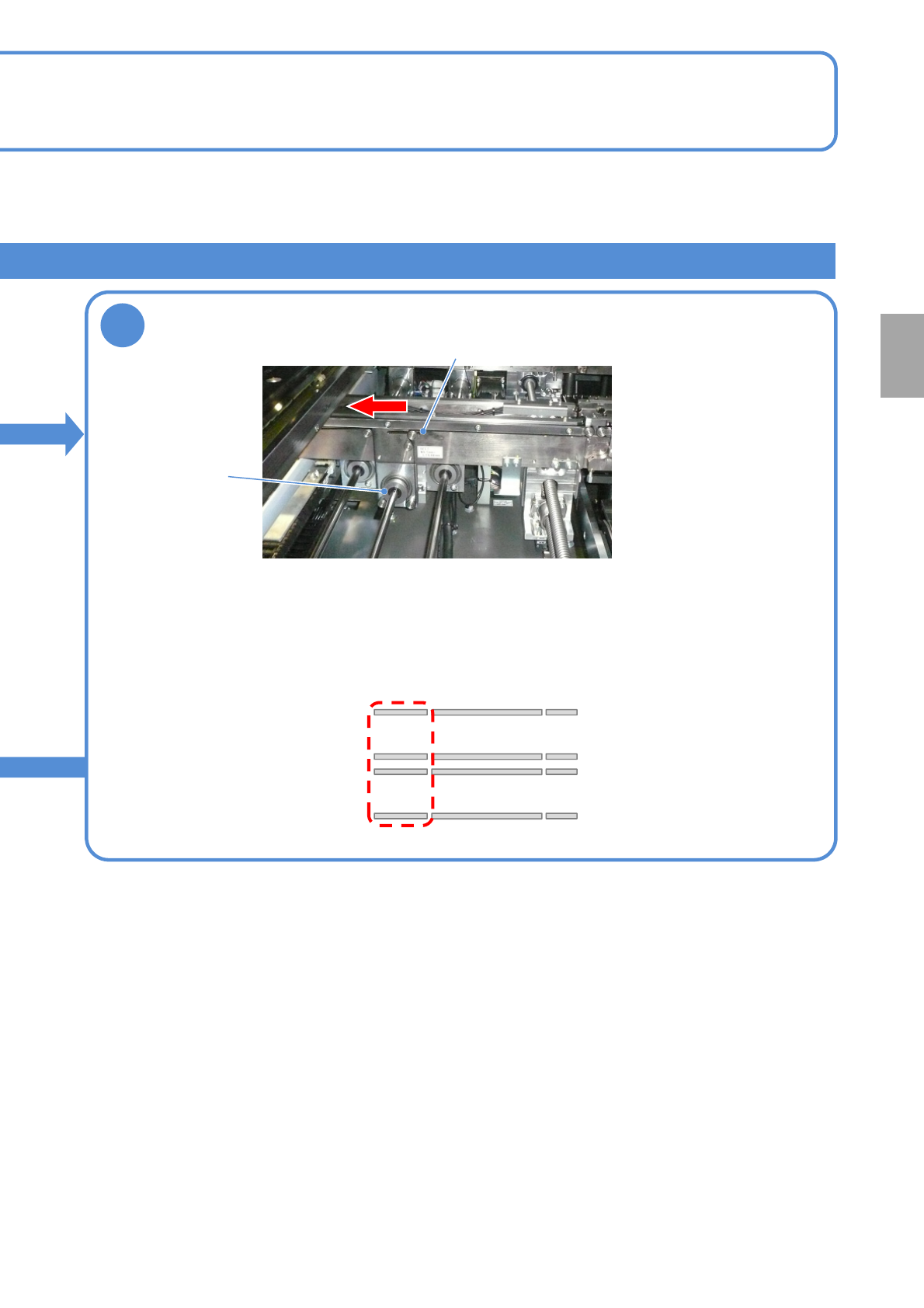

Check the belt
●Rotate the belt with hands and replace it if any flaw,
contamination or wear out is found.
●Two belts on each lane (see the figure below)
Movable side
Fixed side
Movable side
Fixed side
Lane 1
Lane 2
Belt
Pulley
4
Every
560
hours
PeriodicPeriodicPeriodicPeriodic
inspection
EJM1EJ-MB-06M-02NPM-TT2
Inspecting the belt tension
6-5-5
●Enter the following numerical values to the frequency measuring instrument (Acoustic belt tension meter
provided by a belt manufacturer) in advance. Flicking your fingers at the center section (P shown in the
drawings below) of each span, measure the natural frequency with the frequency measuring instrument.
■Input value
●Adjust and fix the tension pulley if the measurement value falls under the prescribed value.
■Prescribed value
Maintenance
6-5
Belt unit mass 0.7 g/m
Belt width 4.5 mm
Span length See below
Mount section Standby section
Lane 1 515 to 565 Hz 430 to 470 Hz
Lane 2 515 to 565 Hz 430 to 470 Hz
Inspecting the PCB /
extension conveyor
(option) 3
● Mount section (fixed rail/movable rail): 2 rails on each
Lane 1
Lane 2
●Standby section (upstream/downstream in common): 4 rails on each
Lane 1
Lane 2
78 mm
P
78 mm
P
94 mm
P
94 mm
P
94 mm
P
94 mm
P
Tension pulley
Tension pulley
Tension pulley
Tension pulley Tension pulley
Tension pulley
