EJM1EJ-MB-06 M-02 NPM-TT2 6-6 -2 Every 560 hours Periodic Periodic Periodic Periodic inspection
EJM1EJ-MB-06M-02NPM-TT2
6-6-1
3
4
1
2
ACTIVATION
Describes how to clean the large reflector.
Tool used: Lint free cloth Time required: 15 minutes
●Leaving the large reflector dirty results in an recognition error.
Cleaning the large
reflector
(3-nozzle head (option))
Maintenance
6-6
●Pull the nozzle out and
down.
Wipe the large
reflector with a
clean lint free
cloth
Large reflector
●For the rear side,
Remove the
nozzle from the
placement head
ACTIVATION
EJM1EJ-MB-06M-02NPM-TT2
6-6-2
Every
560
hours
PeriodicPeriodicPeriodicPeriodic
inspection
EJM1EJ-MB-06M-02NPM-TT2
Describes how to clean the vacuum pump filter.
Tool used: Phillips screwdriver (No.2) Time required: 30 minutes
●Be careful not to hit your head during the maintenance work.
6
Cleaning the vacuum
pump filter
Attach the cover
6-7-1
7
Maintenance
6-7
8
Unlock the
machine and
ON
Detach the tray
feeder or the
feeder cart
on the rear side
Attach the tray
feeder or the
feeder cart
on the rear side
●For a tray feeder
(→ P.14-8)
●For a feeder cart
(→ P.3-2)
●For a tray feeder
(→ P.14-8)
●For a feeder cart
(→ P.3-2)

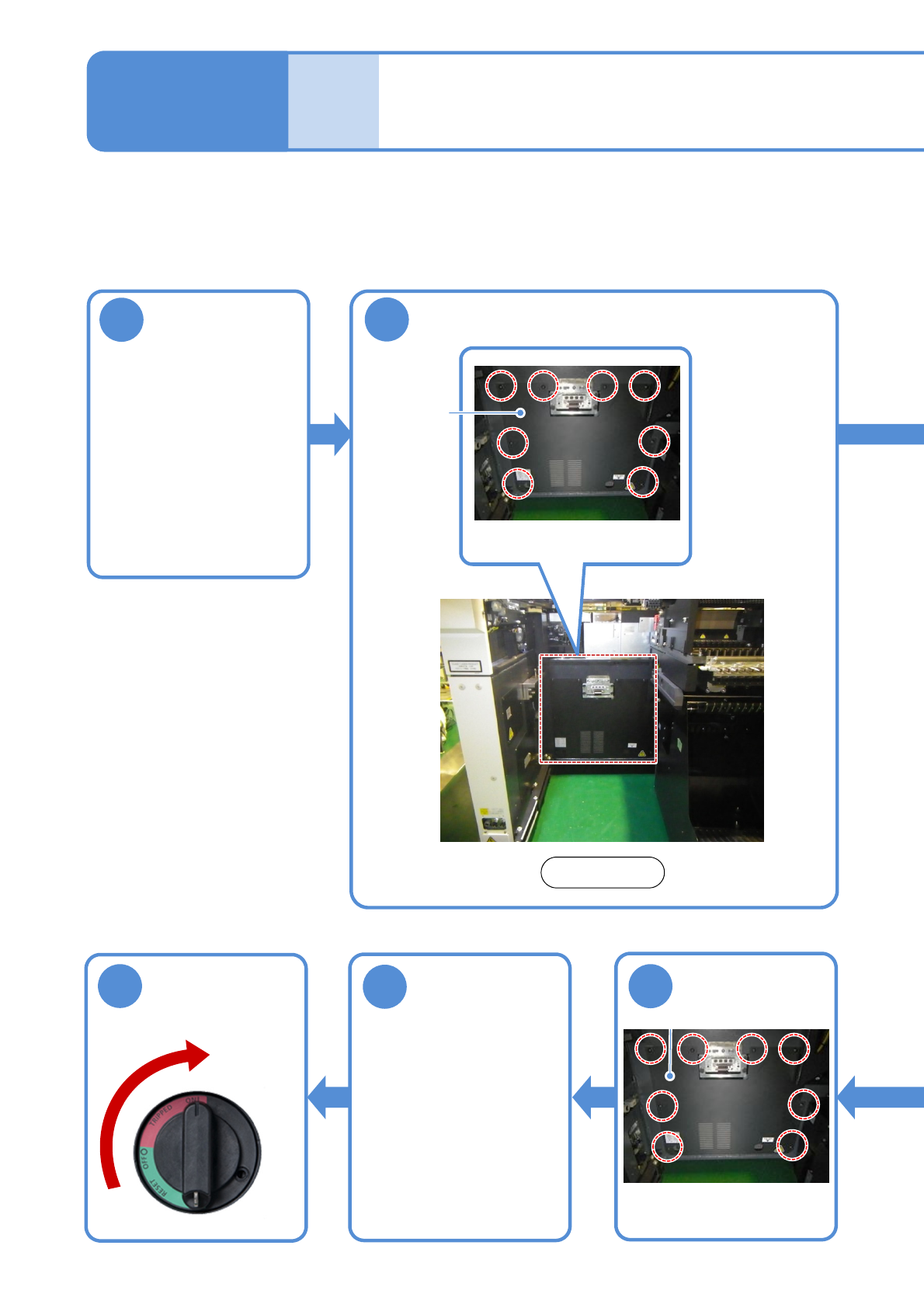

1
Detach the cover
Cover
2
●Eight screws
Cover
Rear side
●Eight screws
