EJM1EJ-MB-06M-02NPM-TT2
Describes how to check the emergency stop switch.
Tool used: None Time required: 2 minutes
●Origin return should be performed in advance.
Inspecting the safety
switches 1
6-8-1
Maintenance
6-8
Checking the emergency stop switch
1
Press the emergency stop switch
on the front side
3
Press the emergency stop switch
on the rear side and make sure
the screen changes to the one
shown on the left as in the case
of the front side
2
Make sure the screen changes to the one
shown on the left.
Make sure the screen changes to the one
shown on the left.
2
+
EJM1EJ-MB-06M-02NPM-TT2
6-8-2

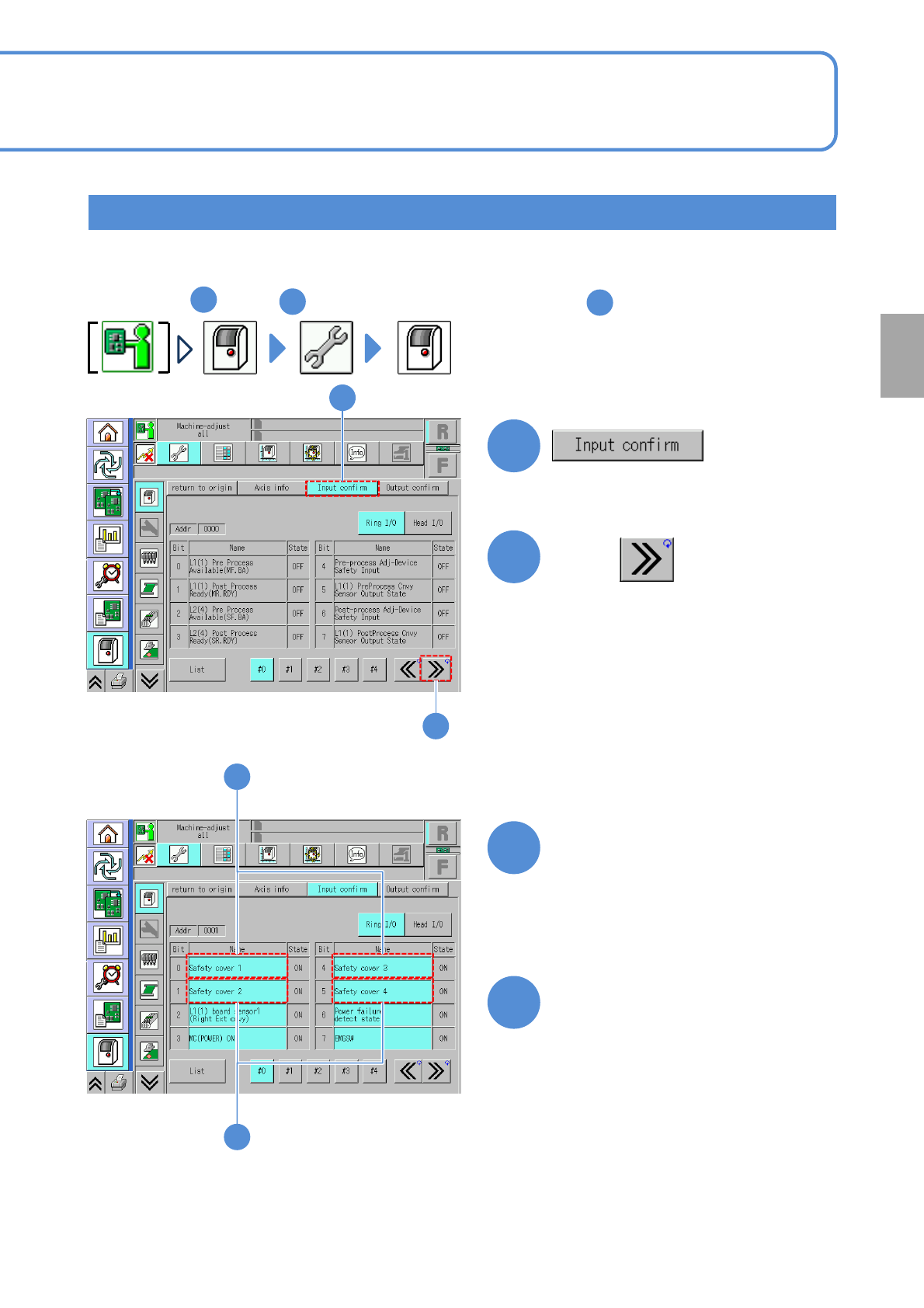

Describes how to check the safety switch (safety cover).
Tool used: None Time required: 2 minutes
Perform steps through at the front of the machine, and for step , perform at the rear.
1
2
(The [Input confirm]screen is displayed.)
3
Press once.
4
3
1
1
2
4
Checking the safety switch (safety cover)
3
4
Every
560
hours
PeriodicPeriodicPeriodicPeriodic
inspection
Open the safety cover on the
front side and be sure that the
display color of
・[Safety cover 1] and
・[Safety cover 3]
changes from light blue to gray.
Open the safety cover on the
rear side and be sure that the
display color of
・[Safety cover 2] and
・[Safety cover 4]
changes from light blue to gray.
EJM1EJ-MB-06M-02NPM-TT2

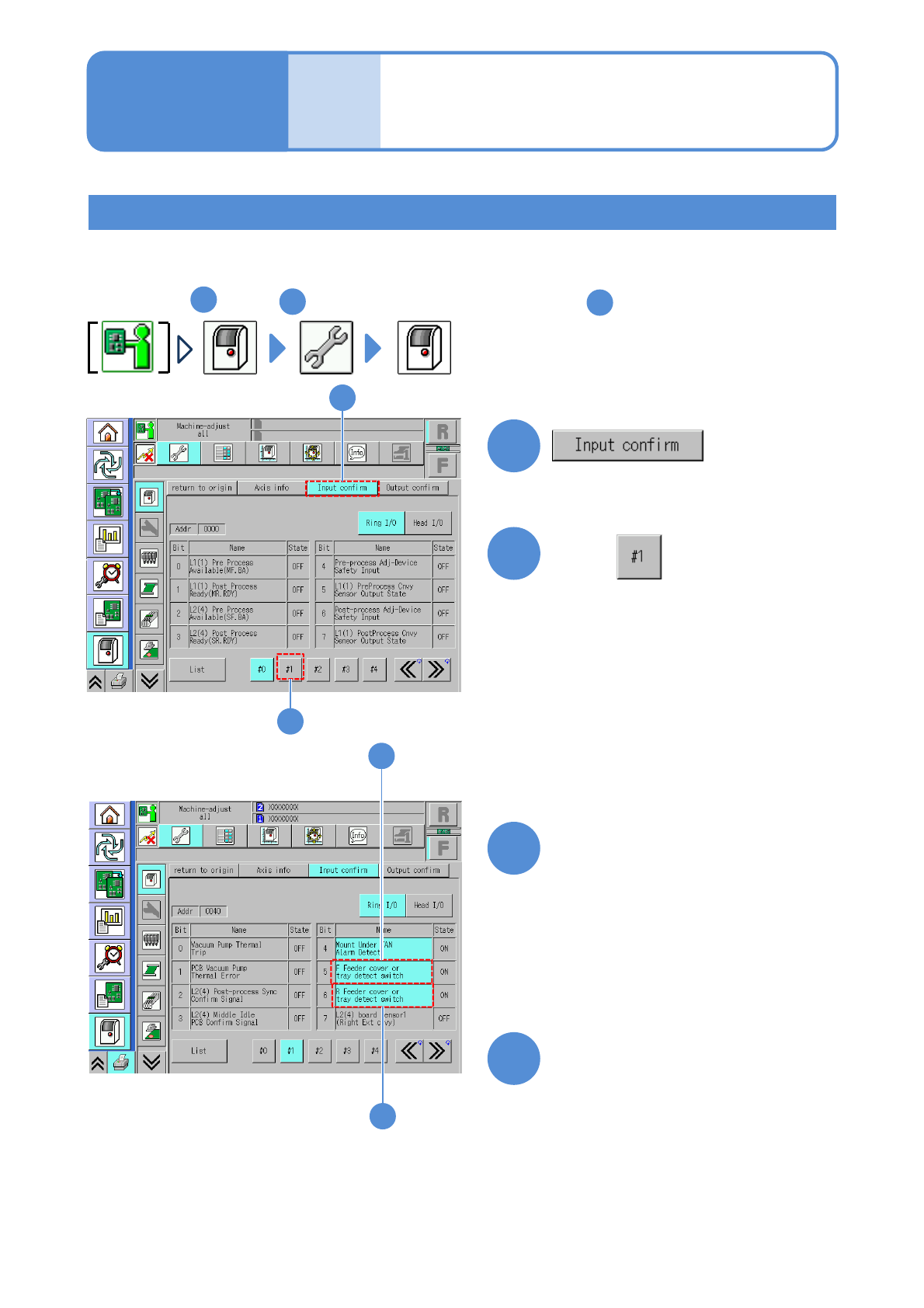

Describes how to check the tray connection safety switch.
Tool used: None Time required: 2 minutes
Perform steps through at the front of the machine, and for step , perform at the rear.
Inspecting the safety
switches 2
1
3
(The [Input confirm]screen is displayed.)
Remove the tray connection
safety switch on the front and
be sure that the display color of
・[ F Feeder cover or tray
detect switch]
changes from light blue to gray.
4
Remove the tray connection
safety switch on the rear and be
sure that the display color of
・[ R Feeder cover or tray
detect switch]
changes from light blue to gray.
6-8-3
4
3
1
1
Maintenance
6-8
Inspecting the tray connection safety switch
2
Press
2
3
4
