EJM1EJ-MB-06M-02NPM-TT2
6-8-4
Every
560
hours
PeriodicPeriodicPeriodicPeriodic
inspection
EJM1EJ-MB-06M-02NPM-TT2
ATTENTION
They should be maintained at regular 560-hour intervals. However, optimal maintenance intervals can
vary according to conditions such as the installation environment of your equipment, the types of PCBs
you are producing, or the operating status of your production machine.
In addition, the continued use of your machine with any of its PCB detection sensors stained not only
could prevent successful detection, but also make it difficult to remove the stain, requiring a longer
maintenance time.
Clean any PCB detection sensors at the maintenance intervals that suit the usage conditions of your
machine.
Make sure that you use the following industrial use cotton swabs for precision machinery when cleaning
the PCB detection sensor (transparency type).
Note that the use of any other types of swabs than the one below keeps you from thoroughly cleaning the
detecting sections of the sensors.
When cleaning the PCB detection sensor (reflection type), you can use both commercially available swabs
and industrial use swabs.
NOTICE
Model Model No. Remarks
HUBY340 BB-013FL (2500 pcs)
MTNZ001268AA 2500 pcs included (100 bags of 25
pcs each)

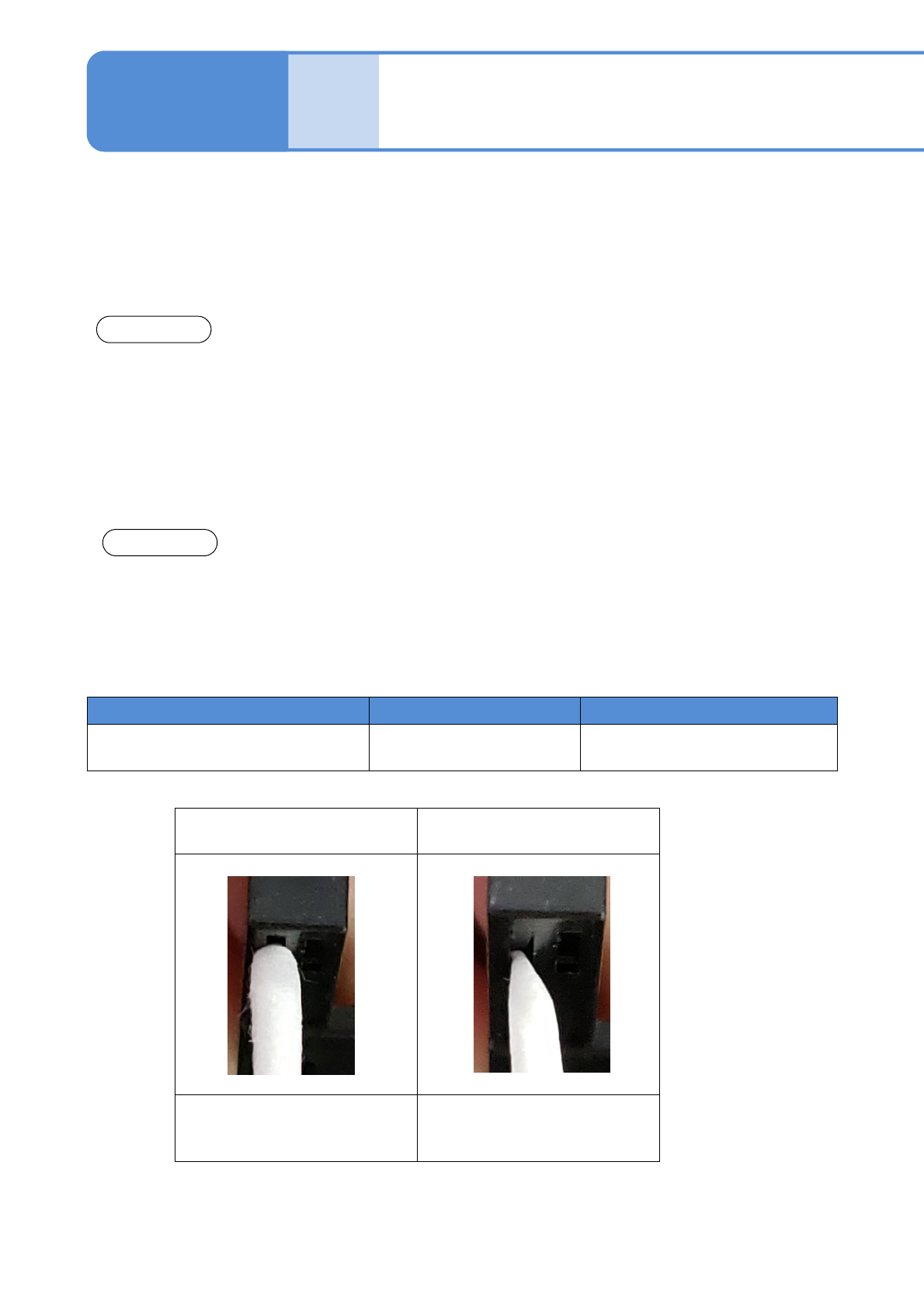

Cleaning a sensor with any swab
other than designated
Cleaning a sensor with a
designated swab
The swab cannot reach the
detecting section of the sensor
and clean it thoroughly.
The swab can have contact with
the detecting section of the
sensor and clean it thoroughly.
Cleaning the PCB
detection sensors 1
6-9-1
Maintenance
6-9
This section describes how to clean the PCB detection sensors for PCB conveyor and extension conveyor.
Tool used: Swabs (MTNZ001268AA)
Time required: For PCB conveyor, 8 minutes and for extension conveyor, 3 minutes.
EJM1EJ-MB-06M-02NPM-TT2
Tool used: Swabs (MTNZ001268AA)
Time required: 8 minutes
PCB conveyor 1
1
2
6-9-2
Every
560
hours
PeriodicPeriodicPeriodicPeriodic
inspection
Adjust the
conveyor width
of 150 mm(For
better
workability)
(→[Operating
procedure] P.2-5-4)
Detach the tray
feeder or the
feeder cart
●For a tray feeder
(→ P.14-8)
●For a feeder cart
(→ P.3-2)
To
3
