EJM1EJ-MB-06 M-02 NPM-TT2 PCB conveyor 3 6-9 -5 5 Cleaning the PCB detection sensor s 3 Maintenance 6-9 Attach the tray feeder or the feeder cart ● For a tray feeder (→ P.14-8) ● For a feed er cart (→ P.3-2)
EJM1EJ-MB-06M-02NPM-TT2
4

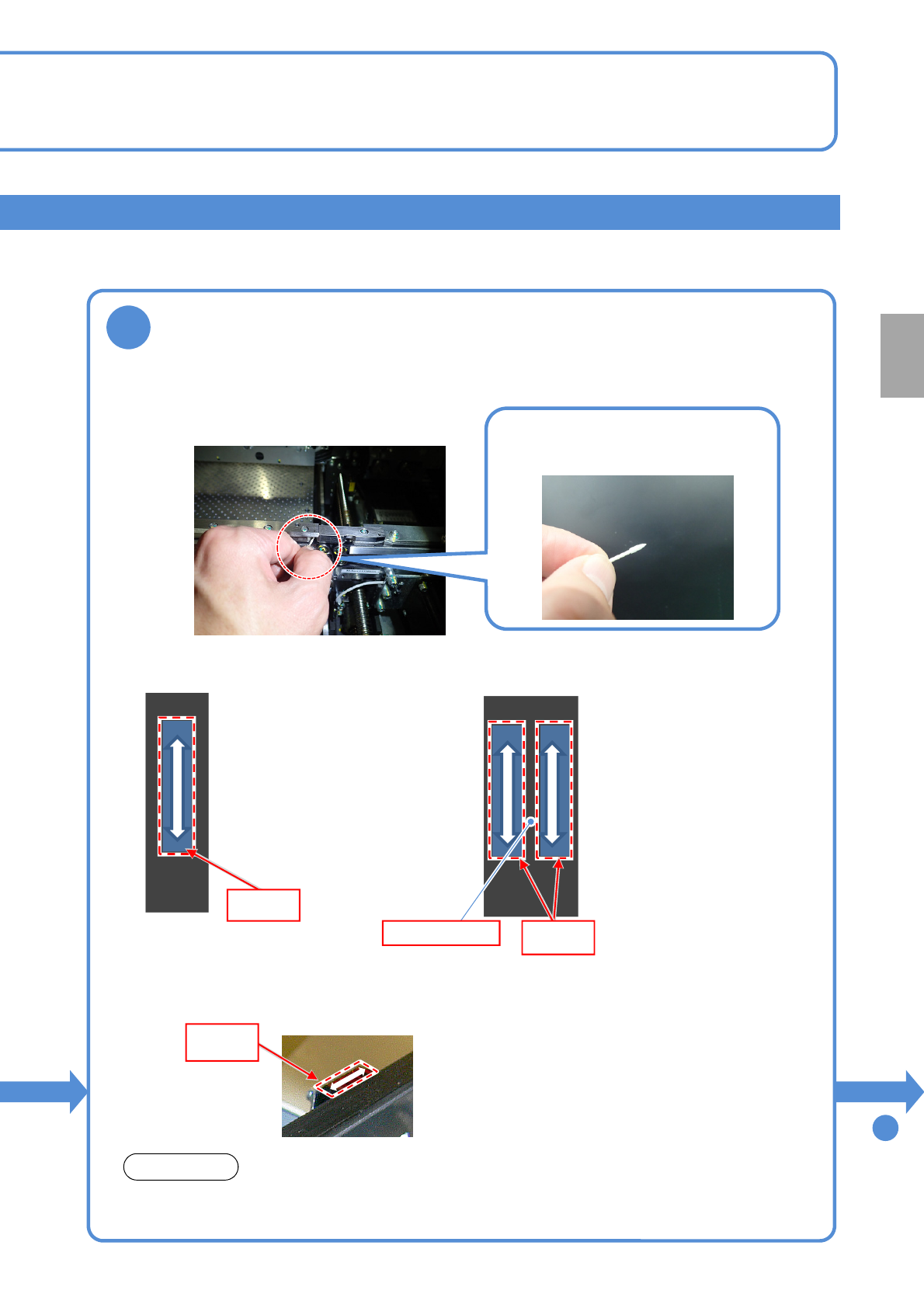

Clean the PCB detection sensors
●Touch the swab tip to detecting section of the PCB detection sensor (transparency type)
and move it as shown below to remove any stain.
●It is recommended that you hold
the swab near its tip when doing
the cleaning.
[Cleaning of the single type]
●With the touch of your hand
or finger, check that the tip
of a swab is in contact with
the detecting section of a
sensor. Then, move the
swab up and down 4 or 5
times to clean it.
[Cleaning of the double type]
●With the touch of your finger
or hand, check that the tip of
a swab is in contact with the
detecting sections of a
sensor. Then, move the
swab up and down 4 or 5
times to clean them (both
sections).
●When moving from one
detecting section to another,
check for the step located
midway between the
sections by touching it with
your hand or finger.
Detecting
section
Detecting
section
In-between step
Dampen the tip (1 mm or so from the end) of each swab before cleaning.
If dried, the swab may not be able to remove any stain thoroughly.
NOTICE
To
5
6-9-4
Every
560
hours
PeriodicPeriodicPeriodicPeriodic
inspection
●Touch the swab tip to detecting section of the PCB detection sensor (reflection type) and
move it as shown below to remove any stain.
Detecting
section
EJM1EJ-MB-06M-02NPM-TT2
PCB conveyor 3
6-9-5
5
Cleaning the PCB
detection sensors 3
Maintenance
6-9
Attach the tray
feeder or the
feeder cart
●For a tray feeder
(→ P.14-8)
●For a feeder cart
(→ P.3-2)
EJM1EJ-MB-06M-02NPM-TT2
Tool used: Swabs (MTNZ001268AA), Allen wrench (3 mm)
Time required: 3 minutes
Extension conveyor (option) 1
3
2
OFF
SERVO
1
6-9-6
Every
560
hours
PeriodicPeriodicPeriodicPeriodic
inspection
Adjust the
conveyor width
of 150 mm(For
better
workability)
(→[Operating
procedure] P.2-5-4)
Remove the
upper cover
●See step for bolt
position.
4
●Loosen the bolts of the
cover with the Allen
wrench and remove the
cover.
To
4
