EJM1EJ-MB-06 M-02 NPM-TT2 Inspecting the θ -axis belt (8-nozzle head (option)) Describes how to inspect the θ-axis belt. Tool used : Allen wrench (size: opp osite side 2.0 mm (a ball-point-e nd) and 2.5 mm) Time required…

100%1 / 502
EJM1EJ-MB-06M-02NPM-TT2
6-10-2
(The display color changes from the
light blue to the gray, and the vacuum
suction ends)
Return to step
and repeat the same
procedure for each
pos
5
Ensure that the
nozzles are
absent from the
head
●Detach if any.

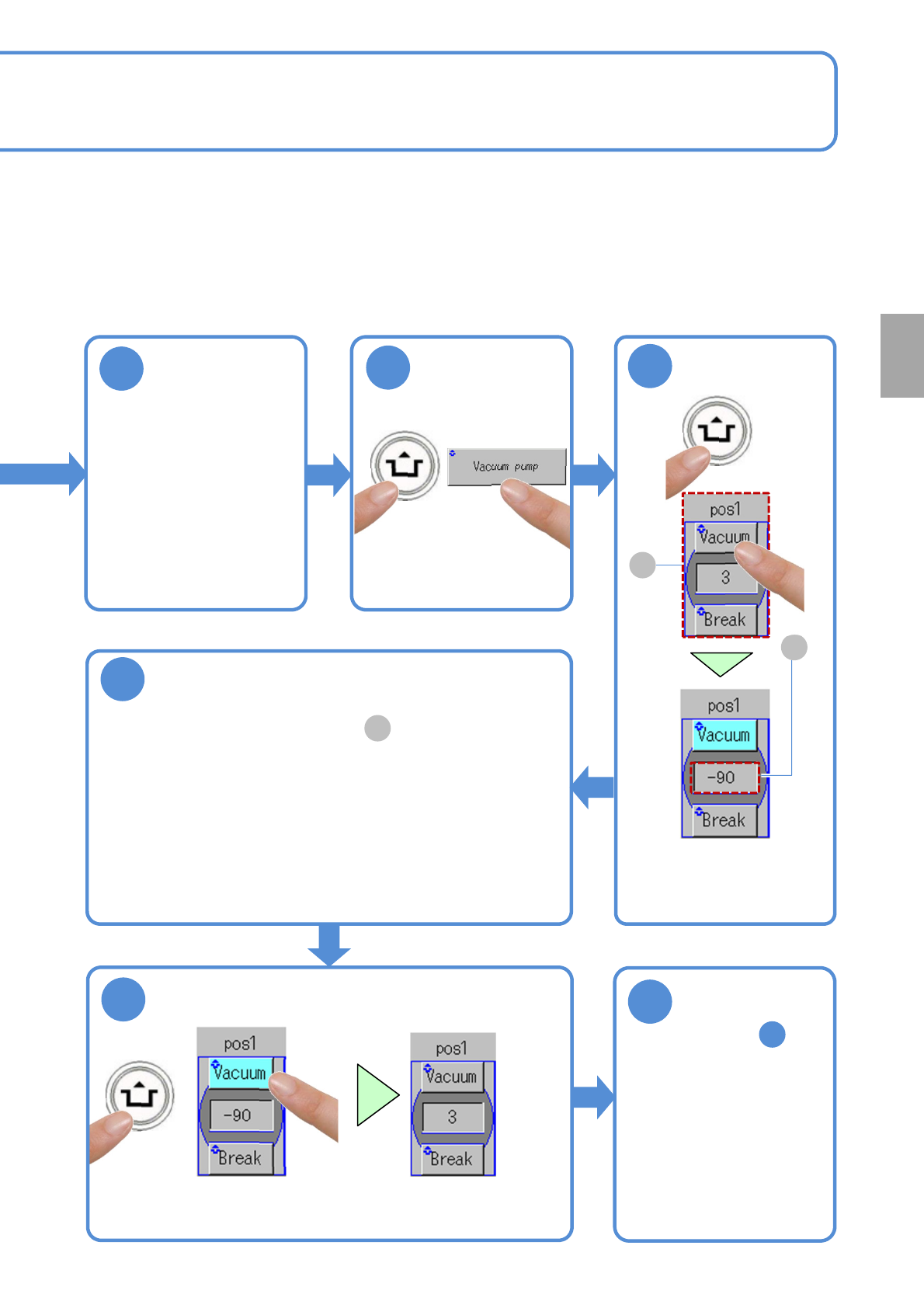

ACTIVATION
3
ACTIVATION
4
5
(The display color changes
from gray to light blue,
and the vacuum suction
starts)
ACTIVATION
A
B
6
Ensure the [pos1] is within the prescribed
value
●If the display value is not within the prescribed value range,
・Check the supply pressure of the vacuum pump (→P4-1-1)
・Clean the nozzle holders (→P5-2, 7-1)
●If it still stays out of the prescribed value range, contact us.
●Prescribed value: value in the frame is less than "-85".
B
8
7
Every
560
hours
PeriodicPeriodicPeriodicPeriodic
inspection
EJM1EJ-MB-06M-02NPM-TT2
Inspecting the θ-axis
belt
(8-nozzle head (option))
Describes how to inspect the θ-axis belt.
Tool used: Allen wrench (size: opposite side 2.0 mm (a ball-point-end) and 2.5 mm)
Time required: 20 minutes (per head)
6-11-1
Detach the head
4
Attach the head
●How to detach
(→P.11-1)
2
5
●How to attach
(→P.11-1)
Maintenance
6-11
1
Detach the tray
feeder or the
feeder cart
●For a tray feeder
(→ P.14-8)
●For a feeder cart
(→ P.3-2)
Attach the tray
feeder or the
feeder cart
●For a tray feeder
(→ P.14-8)
●For a feeder cart
(→ P.3-2)
EJM1EJ-MB-06M-02NPM-TT2
6-11-2
3
Insert an Allen wrench into the end of the θ-axis pulley of the head edge, and
then turn it around 10 times or more
●It has no problem if showing no variations in the rotational torque.
●If showing some variations in the rotational torque (Rotational resistance can be either high
or low sometimes while turning it around), contact us.
●Two θ -axis motors are located on the right and left sides. Inspect both of them.
●Remove the nozzle protection guard during inspection.
*Use a ball-point-end Allen wrench (the
one at the top of the photo above)
■8-nozzle head
θ-axis head
Allen wrench
NOTICE
Remove screws
(Two locations each
on right and left)
θ-axis head
Allen wrench
θ-axis head
Allen wrench
Nozzle protection
guard
Nozzle protection guard
Every
560
hours
PeriodicPeriodicPeriodicPeriodic
inspection
