EJM1EJ-MB-06 M-02 NPM-TT2 6-12 -2 Every 560 hours Periodic Periodic Periodic Periodic inspection
EJM1EJ-MB-06M-02NPM-TT2
1
2

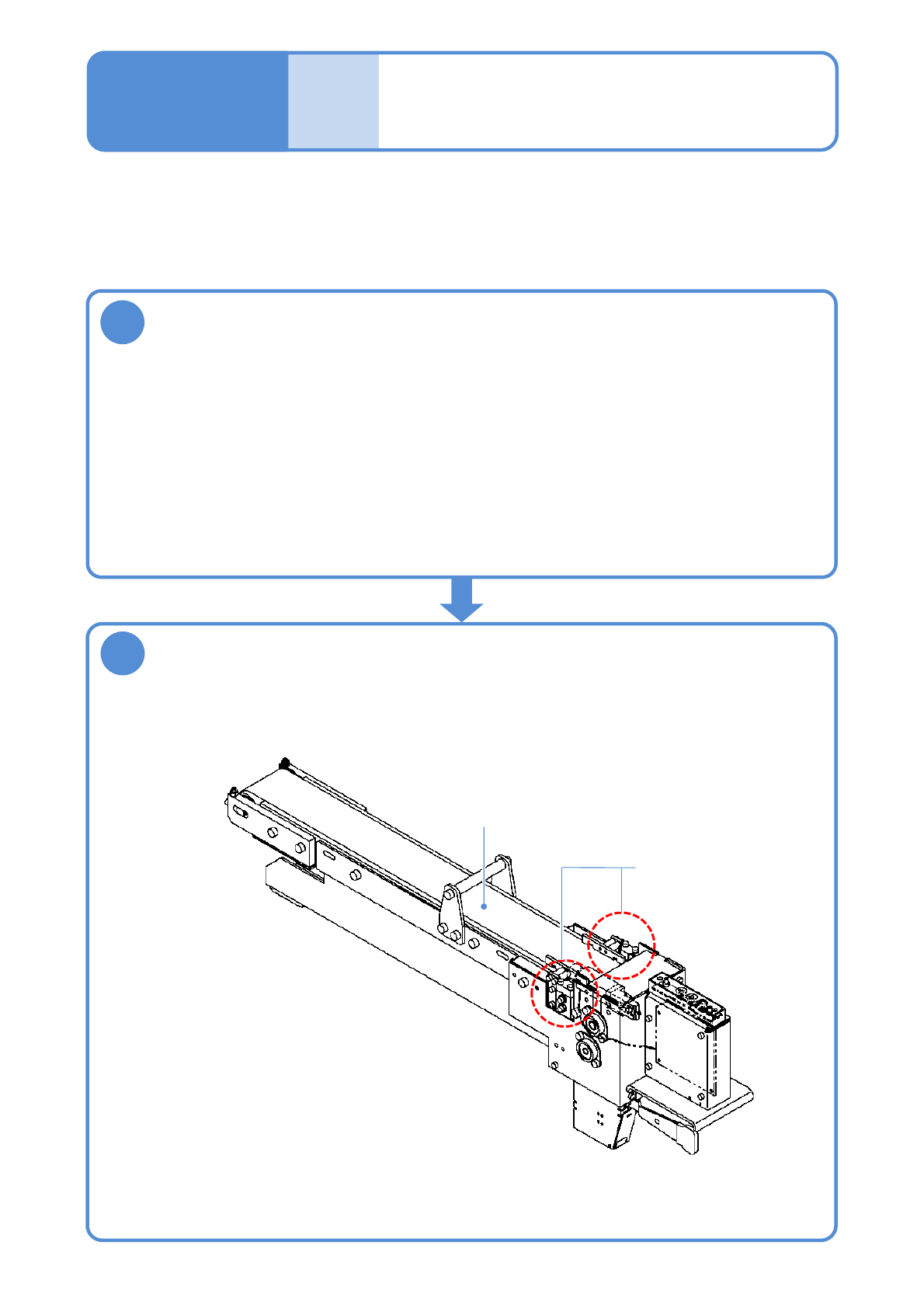

Wipe dust off the surface of the conveyor belt and around the perimeter of
the components detection sensor
Cleaning the components-
ejection conveyor
(option)
Describes how to clean the components-ejection conveyor.
Tool used: Lint free cloth Time required: 2 minutes
Place the components-ejection conveyor to the feeder pedestal removed
from the machine
●Use a lint free cloth
Conveyor belt
Components
detection sensor
6-12-1
Maintenance
6-12
●When handling the components-ejection conveyor, be careful not to hit the roller on the end.
EJM1EJ-MB-06M-02NPM-TT2
6-12-2
Every
560
hours
PeriodicPeriodicPeriodicPeriodic
inspection
EJM1EJ-MB-06M-02NPM-TT2
Describes how to apply grease.
Tool used: Grease gun Time required: 20 minutes
Greasing the tray feeder
(option) 1
6-13-1
4

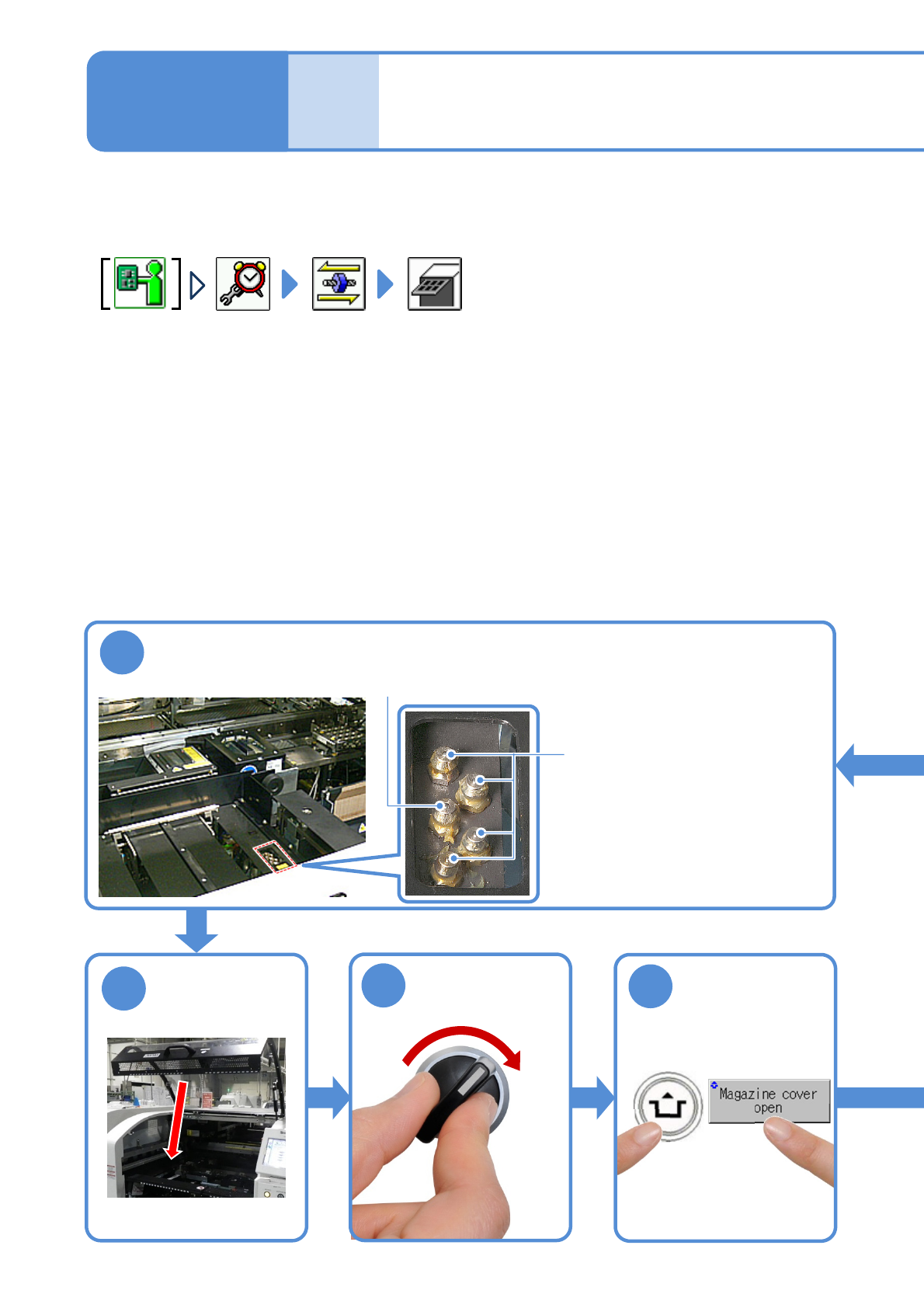

Apply grease via grease nipples to the vertical-axis ball screw and the linear
guide for the lifter
●Apply grease via grease nipples
with a grease gun.
Give two pumps for each (Approx.
1.8cm
3
)
●Grease: LCG100
Ball screw
Grease nipple
5
SERVO
ON
6
ACTIVATION
7
Maintenance
6-13
