EJM1EJ-MB-06 M-02 NPM- TT2 Gr easing to the tr ay f e eder (option) 2 6-13 -3 10 Apply grease to each point of the tray feeder drawer Linear guide (right and left) Inside of cam block (left) ● Greasing points ・ Linear gu…

100%1 / 502
EJM1EJ-MB-06M-02NPM-TT2
To
10
6-13-2
1

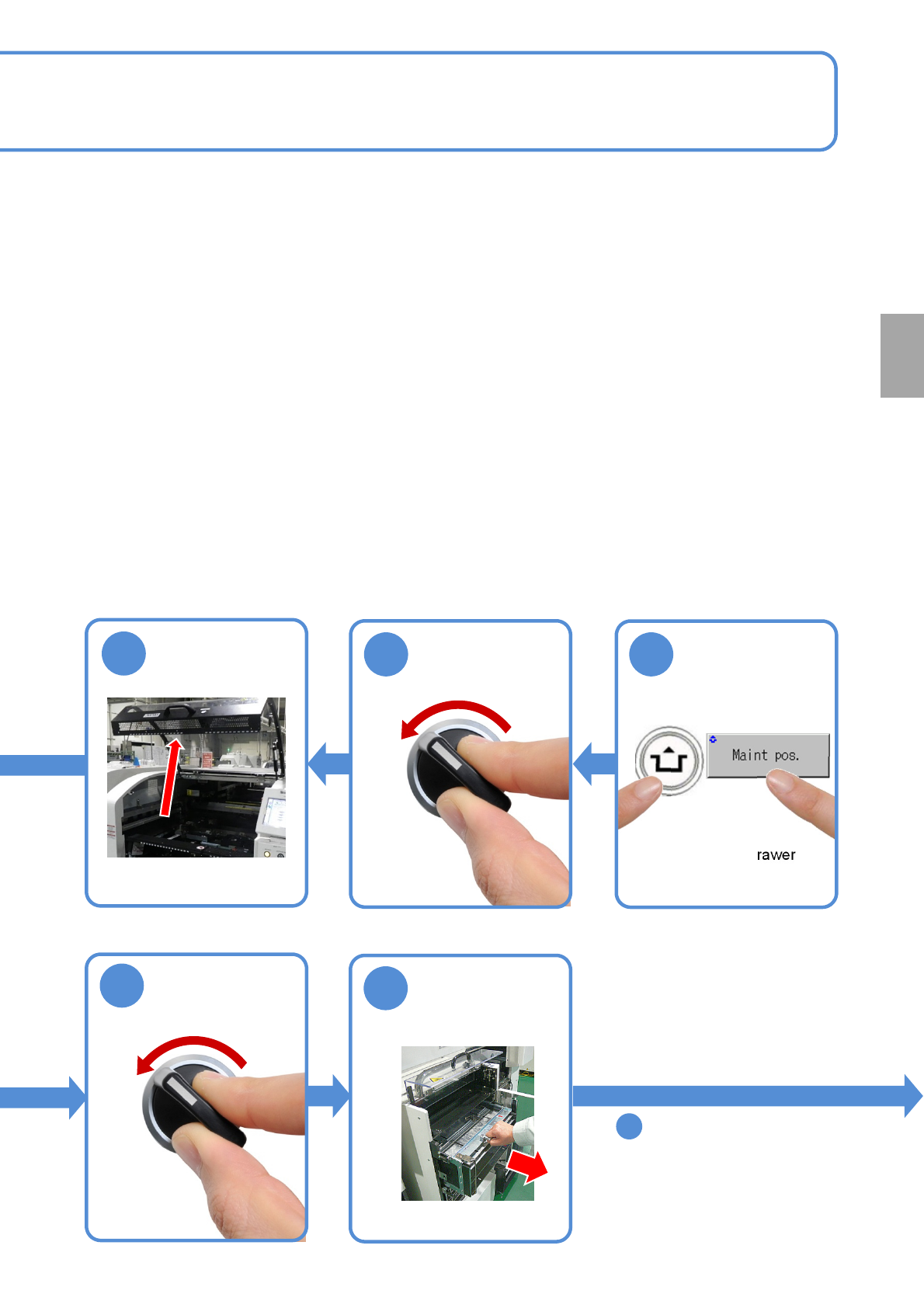

ACTIVATION
(The tray feeder drawer
moves to the maintenance
position.)
2
OFF
SERVO
3
OFF
SERVO
8
Open the
magazine cover
and remove the
upper magazine
9
(→[Operating procedure]
P.2-4-2)
Every
560
hours
PeriodicPeriodicPeriodicPeriodic
inspection
EJM1EJ-MB-06M-02NPM-TT2

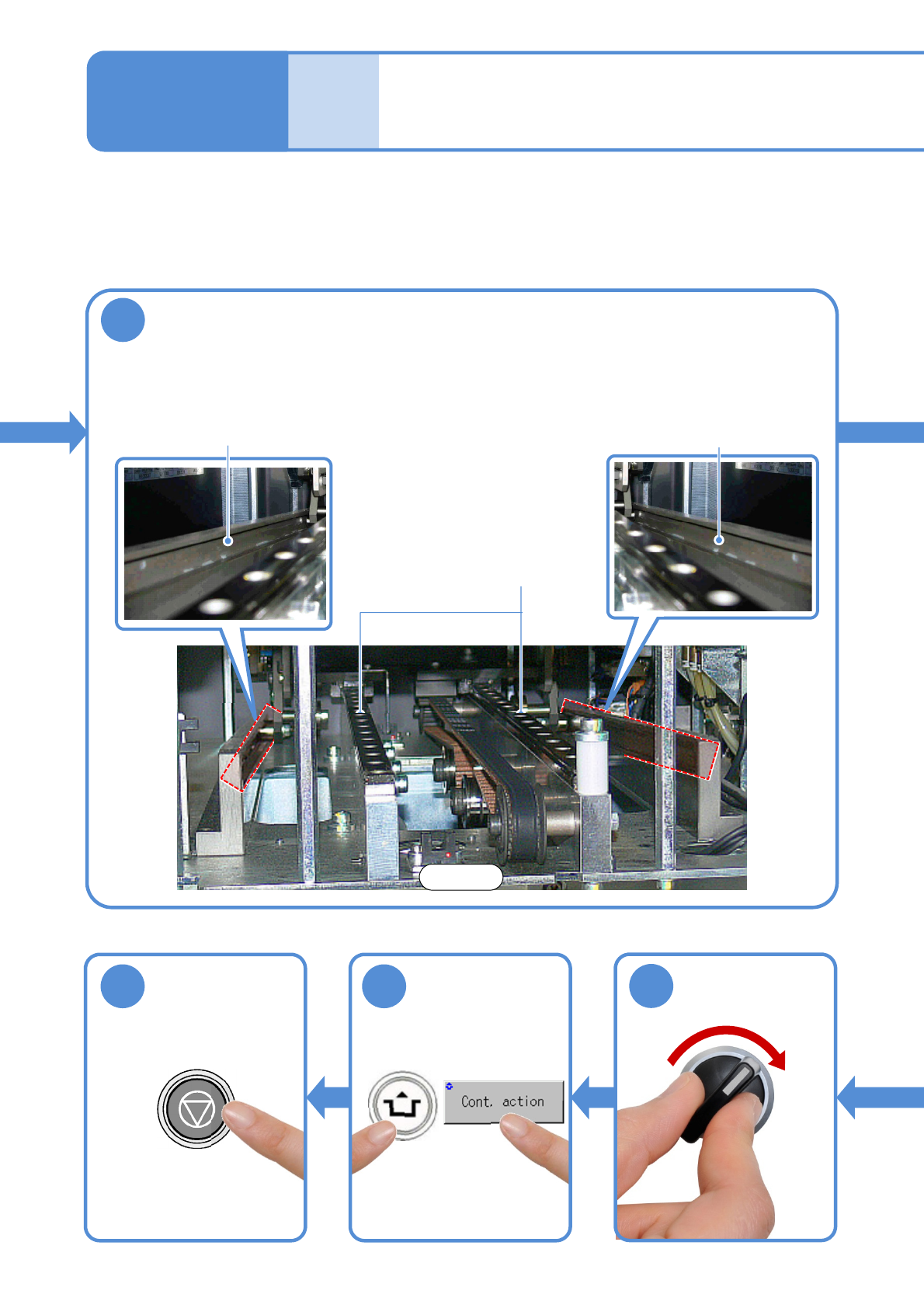

Greasing to the tray
feeder
(option) 2
6-13-3
10
Apply grease to each point of the tray feeder drawer
Linear guide
(right and left)
Inside of cam block (left)
●Greasing points
・Linear guide rails (right and left)
・Inside of cam blocks (right and left)
●Grease:LCG100
Inside of cam block (right)
SERVO
ON
15
16
ACTIVATION
17
Have it run for about a
minute, and then
Maintenance
6-13
●Be careful not to adhere grease to the belt
drawer.
Front
EJM1EJ-MB-06M-02NPM-TT2
12
13
14
Place the
magazines back
in place and
close the
magazine cover
(→[Operating procedure]
P.2-4-2)

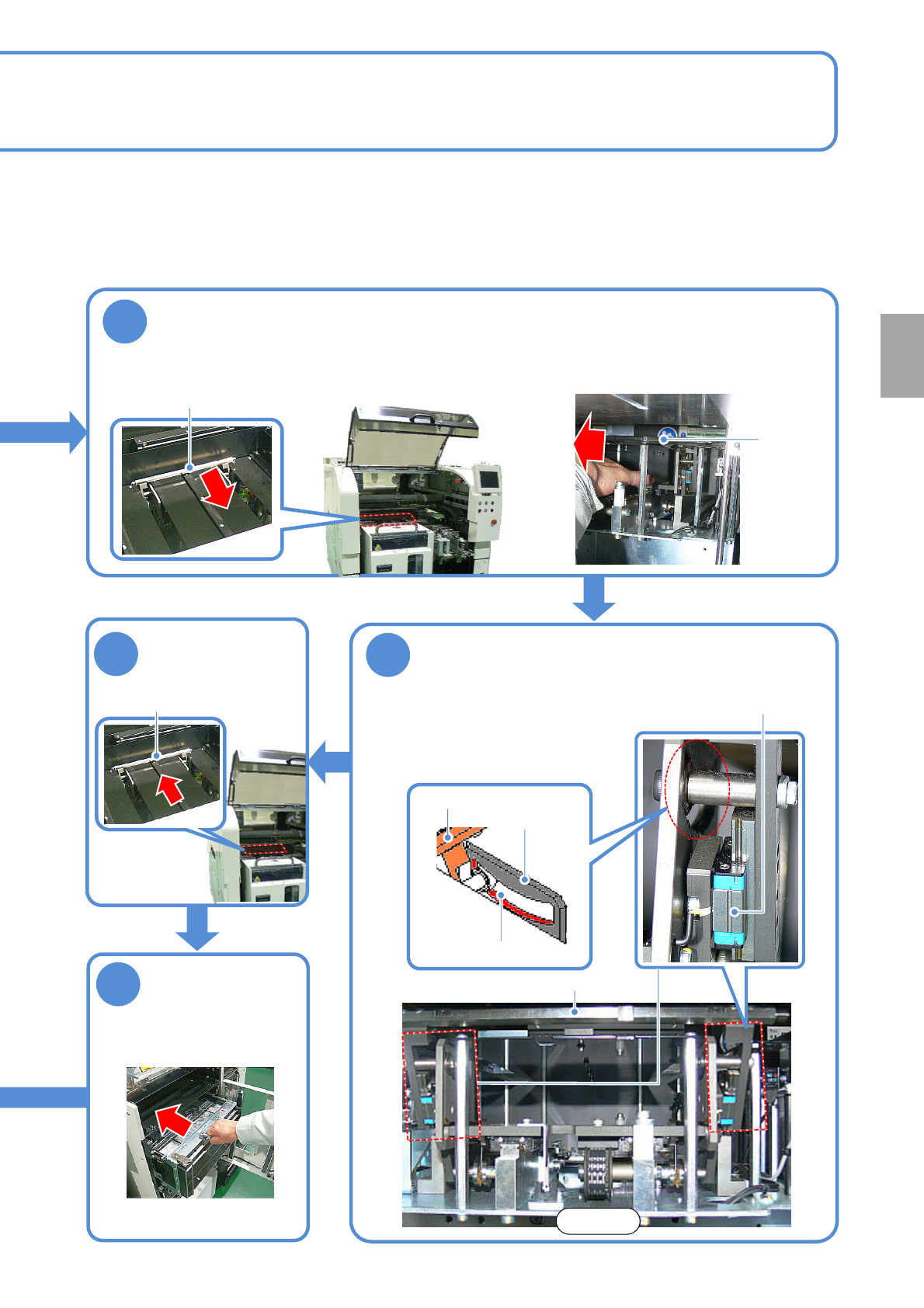

Drawer-axis
11
Pull drawer-axis of the tray feeder upper
surface toward you
●As the drawer is around the
magazine door, pull it toward you
as below.
Drawer
-axis
Apply grease to each part of the tray
feeder drawer
●Greasing points
・Linear guide rail (right and left)
・Inside of cam plates (right and left)
●Grease:LCG100
Place the drawer
back as its
original position
Drawer-axis
Cam plate
Drawer-axis
Greasing area
6-13-4
Front
Every
560
hours
PeriodicPeriodicPeriodicPeriodic
inspection
Drawer-axis
Linear guide
