EJM1EJ-MB-06 M-02 NPM- TT2 Describes how to clean the tray feeder magazine slot. Tool used : Lint free cloth Time required : 10 minutes 2 1 Cleaning the slot (tray feeder magazine (option) ) Check the slots Clean the slo…
EJM1EJ-MB-06M-02NPM-TT2
12
13
14
Place the
magazines back
in place and
close the
magazine cover
(→[Operating procedure]
P.2-4-2)
Drawer-axis
11
Pull drawer-axis of the tray feeder upper
surface toward you
●As the drawer is around the
magazine door, pull it toward you
as below.
Drawer
-axis
Apply grease to each part of the tray
feeder drawer
●Greasing points
・Linear guide rail (right and left)
・Inside of cam plates (right and left)
●Grease:LCG100
Place the drawer
back as its
original position
Drawer-axis
Cam plate
Drawer-axis
Greasing area
6-13-4
Front
Every
560
hours
PeriodicPeriodicPeriodicPeriodic
inspection
Drawer-axis
Linear guide
EJM1EJ-MB-06M-02NPM-TT2
Describes how to clean the tray feeder magazine slot.
Tool used: Lint free cloth Time required: 10 minutes
2
1

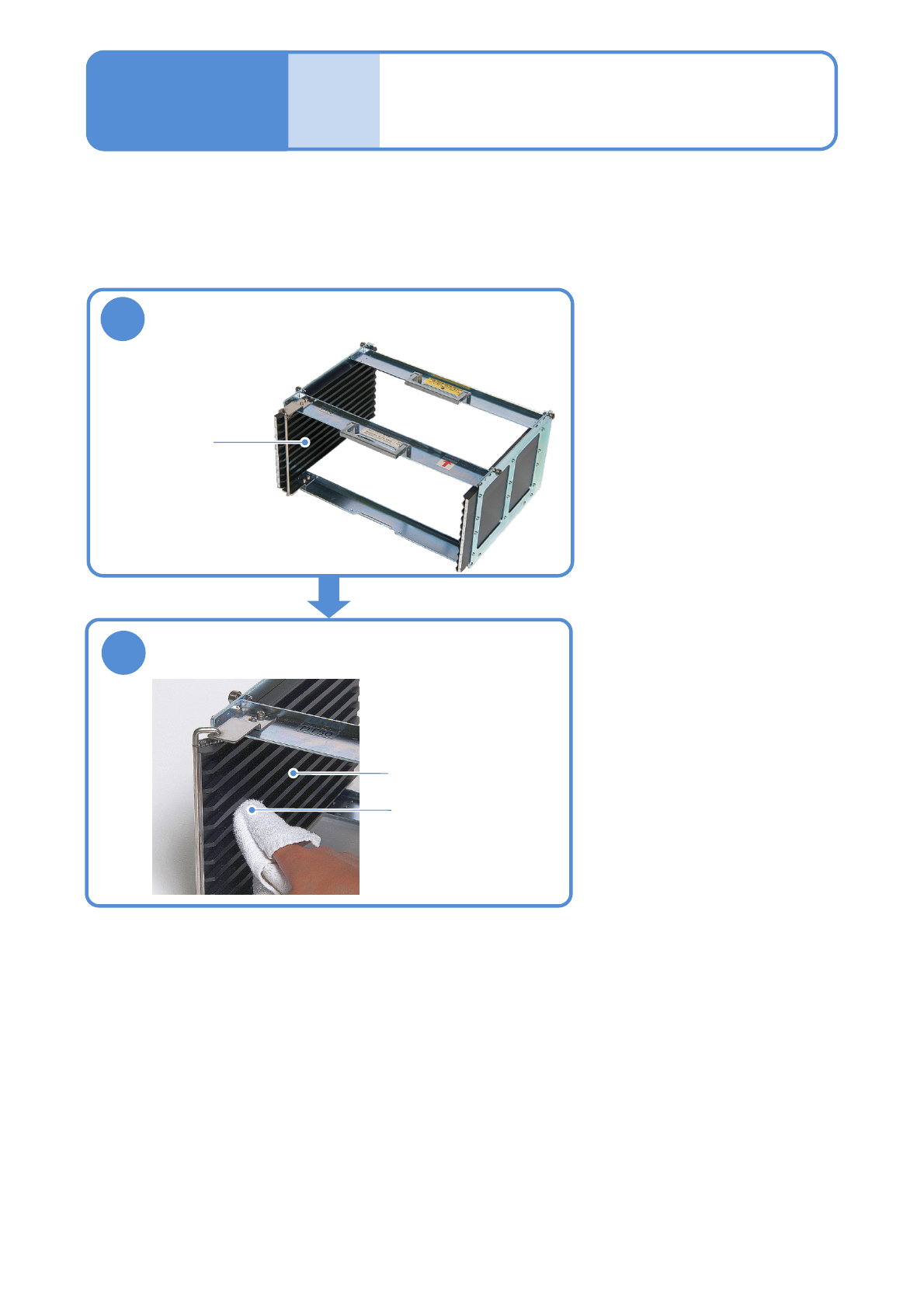

Cleaning the slot
(tray feeder magazine (option))
Check the slots
Clean the slots
6-14
Slot
Slot
●Wipe it off with a soft dry
cloth.
●Visually check whether
the slots are free from
chipping, cracks or breaks.
Lint free cloth
Maintenance
6-14
EJM1EJ-MB-06M-02NPM-TT2
Cleaning the safety
cover
Describes how to clean the safety cover.
Tool used: Lint free cloth, clean, soft cloth Time required: 5 minutes
●Rather than cleaning the safety cover once a month, clean it as needed.
1

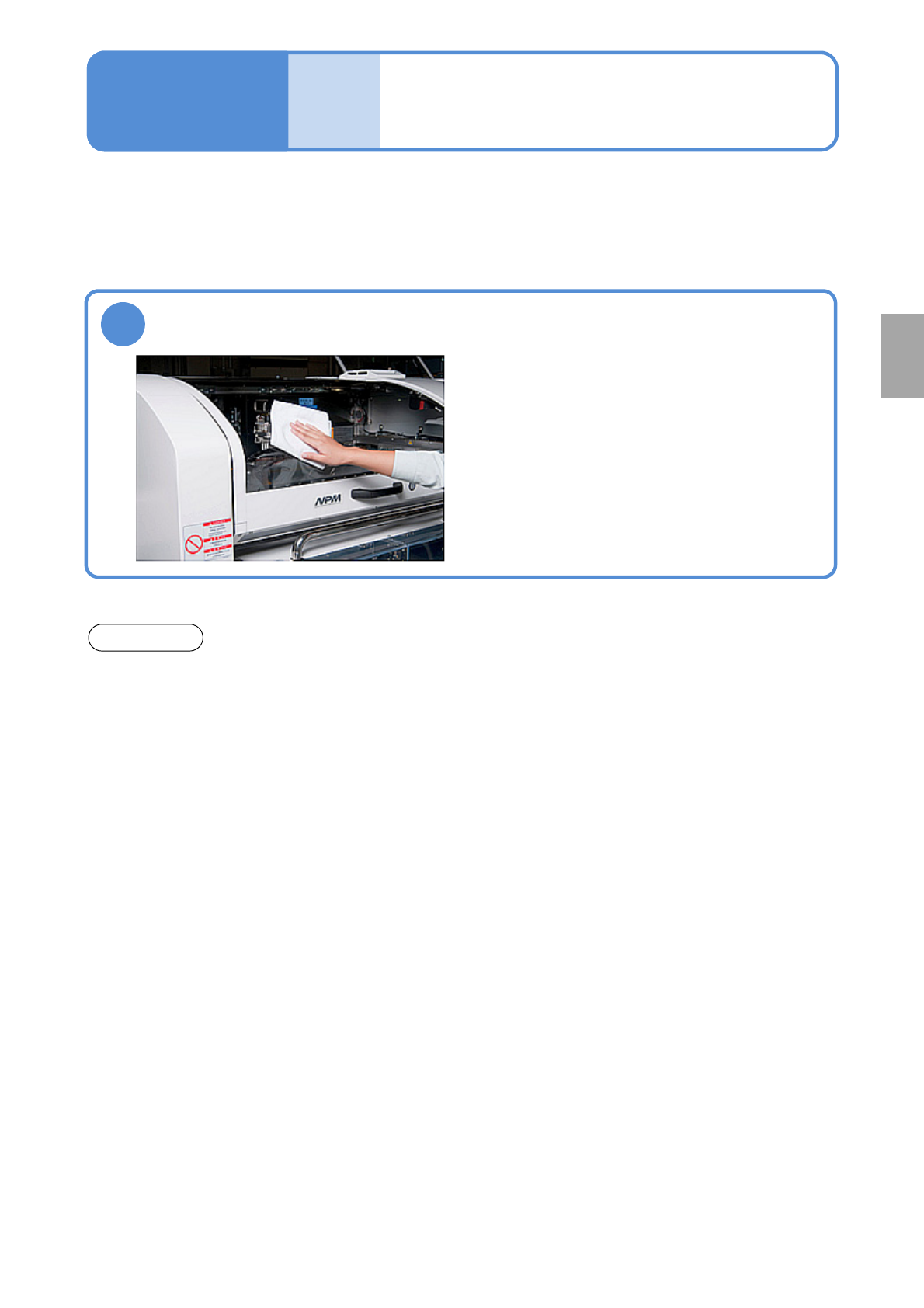

Wipe the cover
●Because the surface of the safety cover is
susceptible to damage, be careful neither to
scratch nor generate friction.
NOTICE
6-15
Maintenance
6-15
Every
560
hours
PeriodicPeriodicPeriodicPeriodic
inspection
● If there are contaminants, such as dust,
building up on the cover, wipe them off with a
cloth soaked in water and wrung out tightly.
After cleaning, wipe off any excess water on
the cover with a dry cloth.
●Basically, wipe it with a lint free cloth or dry
cloth.
● Do not use any alcohol, thinner, cleaners (solvent), or detergents.
Otherwise, dullness, cracking or reduction of the antistatic effect will result. If a crack occurs in the
safety cover, the crack may cause its strength to decrease.
If it is fairly contaminated and cannot be cleaned with a dampened cloth, contact us.
● Do not reuse a thing, such as waste or cloth, which you used to clean other sections of the machine.
