EJM1EJ-MB-06 M-02 NPM-TT2 Every 560 hours Periodic Periodic Periodic Periodic inspection 6-20 -2 Clean the cable bear on the X-axis 4 ● Move the placement head in the X- direction and wipe off any adhesion on the cable b…
EJM1EJ-MB-06M-02NPM-TT2
Maintenance
6-20

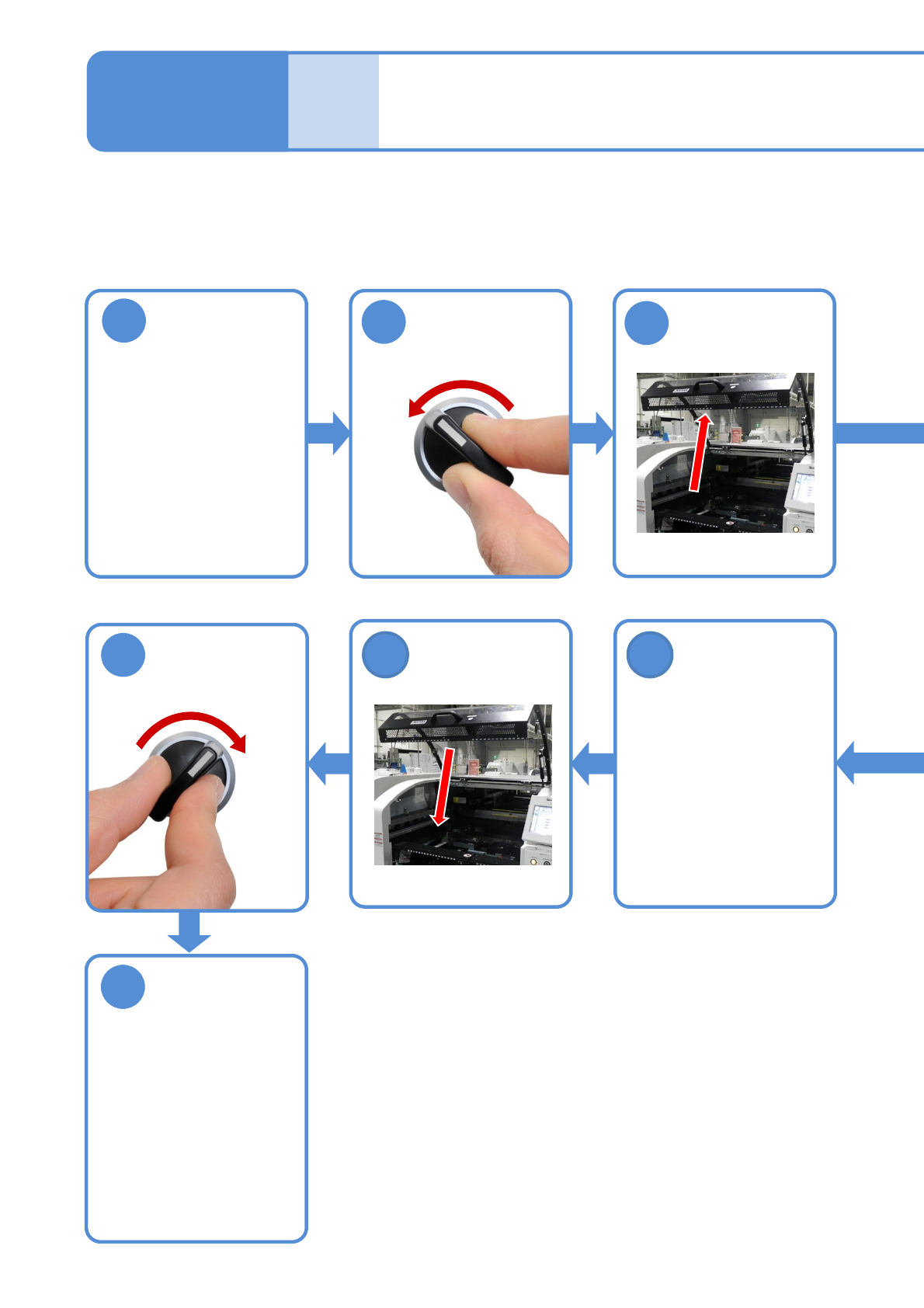

Cleaning the XY-axis
cable bearer
1
OFF
SERVO
3
2
9
7
SERVO
ON
8
6
6-20-1
Describes how to clean cable bears on the X-axis and Y-axis.
Tool used: Lint free cloth
Time required: 10 minutes
Move the placement head
and X-axis to the position
where they do not hit the
mechanical stopper
Detach the tray
feeder or the
feeder cart
●For a tray feeder
(→ P.14-8)
●For a feeder cart
(→ P.3-2)
Attach the tray
feeder or the
feeder cart
●For a tray feeder
(→ P.14-8)
●For a feeder cart
(→ P.3-2)
EJM1EJ-MB-06M-02NPM-TT2
Every
560
hours
PeriodicPeriodicPeriodicPeriodic
inspection
6-20-2
Clean the cable bear on the X-axis
4
●Move the placement head in the X-
direction and wipe off any adhesion on the
cable bear using a lint free cloth.
●Move the placement head to the right and
wipe off any dust on the bracket using a
lint free cloth.
5
Clean the cable bear on the Y-axis
●Move the X-axis beam in the Y-direction
and wipe off any adhesion on the cable
bear using a lint free cloth.
●Push the X-axis beam inward and wipe off
any dust on the bracket using a lint free
cloth.
Bracket
Bracket
EJM1EJ-MB-06M-02NPM-TT2
6-20-3
