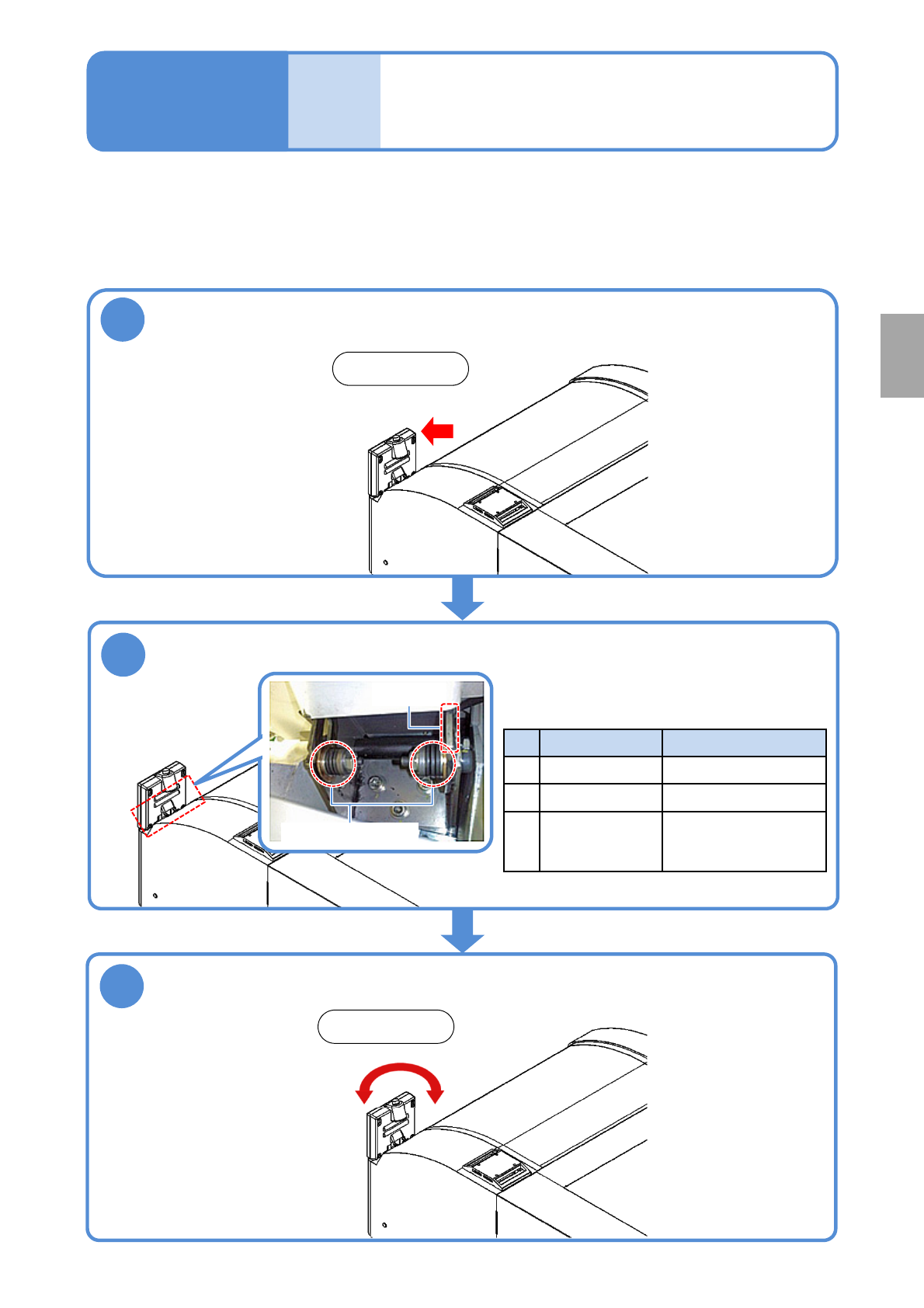

Applying grease to the

hinge

(touchscreen)

9-2

Maintenance

9-2

Tool used: None Time required: 5 minutes

Tilt the touchscreen

forward

No. Type Manufactured by

1 5-56 KURE Engineering Ltd

2 WD-40 WD-40 Company

N990PANA-028

(Touch lube)

Panasonic Smart

Factory Solutions Co.,

Ltd.

Apply applicable amount of lubricant agent to the

hinge

* Use the hydrocarbon lubricant agent as

below.

Spread the lubricant

●Apply grease to the hinge at the back side of the touchscreen on the front and rear machine.

The touchscreen could be hard to move, apply grease regardless of maintenance period.

Hinge

Dispensing part

Front side

●Move the touchscreen back

and forth several times.

Every

6000

hours

PeriodicPeriodicPeriodicPeriodicPeriodicPeriodic

inspection

NPM-TT2 EJM1EE-MB-09M-01

Inspecting the 1006

nozzle

(option)

Maintenance

9-3

Tool used: None Time required: 1 minute

Clamp groove

9-3

●Confirm whether clamp grooves wear out or not.

(To prevent from decreasing clamping force after long time use)

●Replace it after 6000 hours (a year) or 700000 times of automatic nozzle changer of operation. It is

recommended that you stock spare nozzles.
