1 1 Replacement
NPM-TT2 EJM1EE-MB-10M-00
10-2
Maintenance
10-2
Tool used: None Time required: 5 minutes

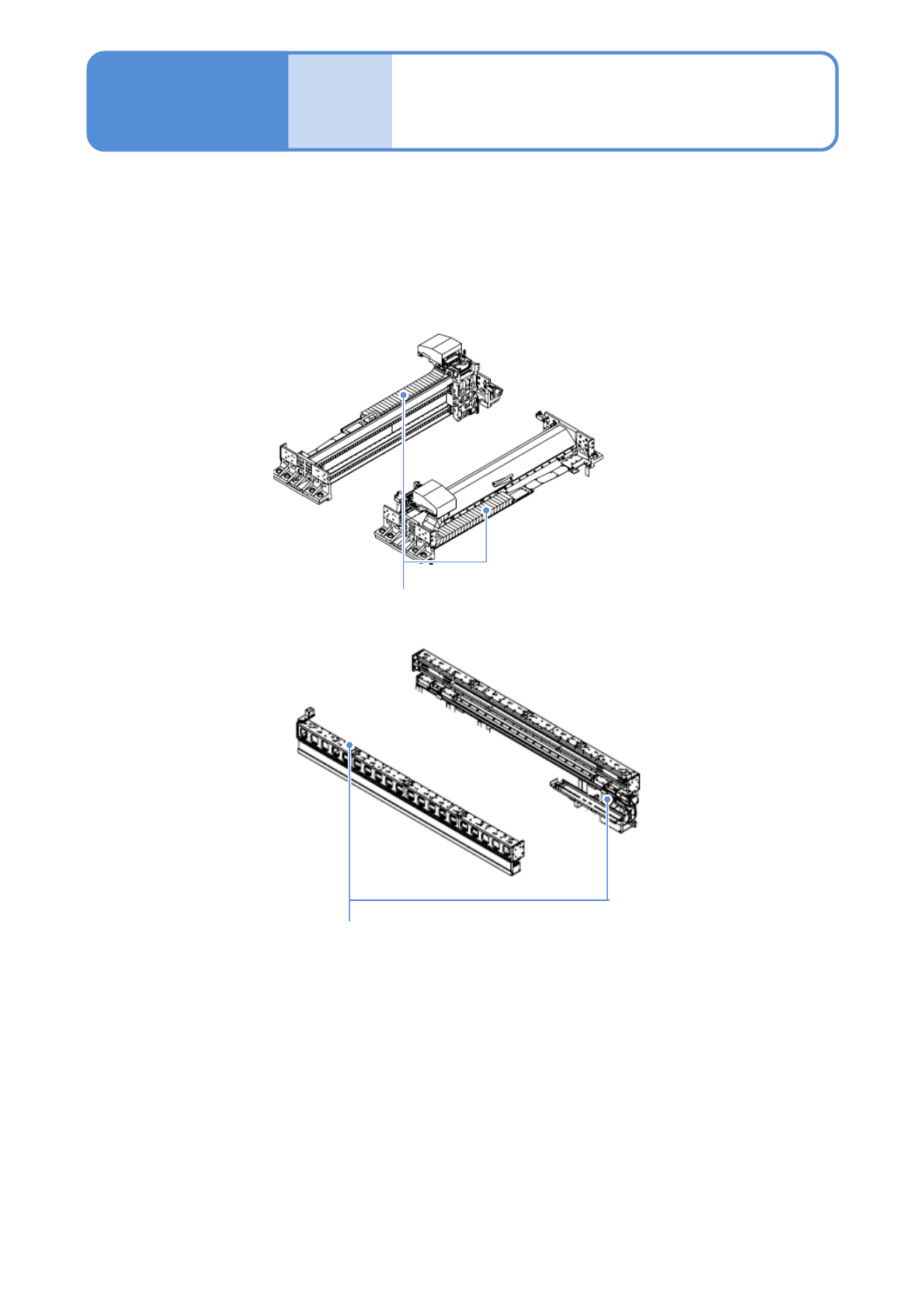

X-axis cable bearer
Y-axis cable bearer
●If a cable bearer wears out, operation sound may be larger or it may cause damage of wiring or piping.
Inspect them after using about 18000 hours. If any part wears out, replace it.
●To replace the parts, contact us.
Inspecting the cable
bearer
(XY unit)
11 Replacement
NPM-TT2 EJM1EE-MB-11M-02
Maintenance
11-1
11-1-1
Head and nozzle
changer replacement 1
Head compatibility
*1): Refer to the table on the next page for the model IDs and model Nos.
*2): Refer to the table on the next page for the positions of the labels and checking method.
Model ID
*1)
Lightweight
16-nozzle head V2
Lightweight
16-nozzle head
16-nozzle
head
12-
nozzle
head
Lightweight
8-nozzle
head
8-nozzle
headLabel color
*2)
Green Blue
NPM-WX
○×××○×
NPM-WXS
○×××○×
NPM-DX
○×××○×
NPM-D3
○○○○○○
NPM-D2
××○○×○
NPM-D
××○○×○
NPM
××○○×○
NPM-W2
○○○○○×
NPM-W2S
○○×○○×
NPM-W
××○○×○
NPM-TT2
××××○○
NPM-TT
×××××○
VM101
○×××○×
Model ID
*1)
4-nozzle
head
3-nozzle
headV2
3-nozzle
head
2-nozzle
head
Dispens-
ing head
Inspection
head
NPM-WX
○○ ××××
NPM-WXS
○○ ××××
NPM-DX
○× ××××
NPM-D3
×× ×○○○
NPM-D2
×× ×○○○
NPM-D
×× ×○○○
NPM
×× ×○○○
NPM-W2
×○ ××○○
NPM-W2S
×○ ××××
NPM-W
×○ ○×○○
NPM-TT2
×○ ○×××
NPM-TT
×× ○×××
VM101
○× ××××
The head for NPM series and the one for NPM X series basically differ from one another.
So, when you replace the head, be sure to check head compatibility.
Before replacing, check whether the head to install is acceptable.
