NPM- TT2 EJ M1EE-MB-11M-0 2 Maintenance 11 - 1 11 - 1 -1 Head and no zzle c h anger r eplacement 1 Head compatibility *1): Refer to the table on the next page for the model IDs and model Nos. *2): Refer to the table on t…

11 Replacement

NPM-TT2 EJM1EE-MB-11M-02

Maintenance

11-1

11-1-1

Head and nozzle

changer replacement 1

Head compatibility

*1): Refer to the table on the next page for the model IDs and model Nos.

*2): Refer to the table on the next page for the positions of the labels and checking method.

Model ID

*1)

Lightweight

16-nozzle head V2

Lightweight

16-nozzle head

16-nozzle

head

12-

nozzle

head

Lightweight

8-nozzle

head

8-nozzle

headLabel color

*2)

Green Blue

NPM-WX

○×××○×

NPM-WXS

○×××○×

NPM-DX

○×××○×

NPM-D3

○○○○○○

NPM-D2

××○○×○

NPM-D

××○○×○

NPM

××○○×○

NPM-W2

○○○○○×

NPM-W2S

○○×○○×

NPM-W

××○○×○

NPM-TT2

××××○○

NPM-TT

×××××○

VM101

○×××○×

Model ID

*1)

4-nozzle

head

3-nozzle

headV2

3-nozzle

head

2-nozzle

head

Dispens-

ing head

Inspection

head

NPM-WX

○○ ××××

NPM-WXS

○○ ××××

NPM-DX

○× ××××

NPM-D3

×× ×○○○

NPM-D2

×× ×○○○

NPM-D

×× ×○○○

NPM

×× ×○○○

NPM-W2

×○ ××○○

NPM-W2S

×○ ××××

NPM-W

×○ ○×○○

NPM-TT2

×○ ○×××

NPM-TT

×× ○×××

VM101

○× ××××

The head for NPM series and the one for NPM X series basically differ from one another.

So, when you replace the head, be sure to check head compatibility.

Before replacing, check whether the head to install is acceptable.

NPM-TT2 EJM1EE-MB-11M-02

11-1-2

Replacement

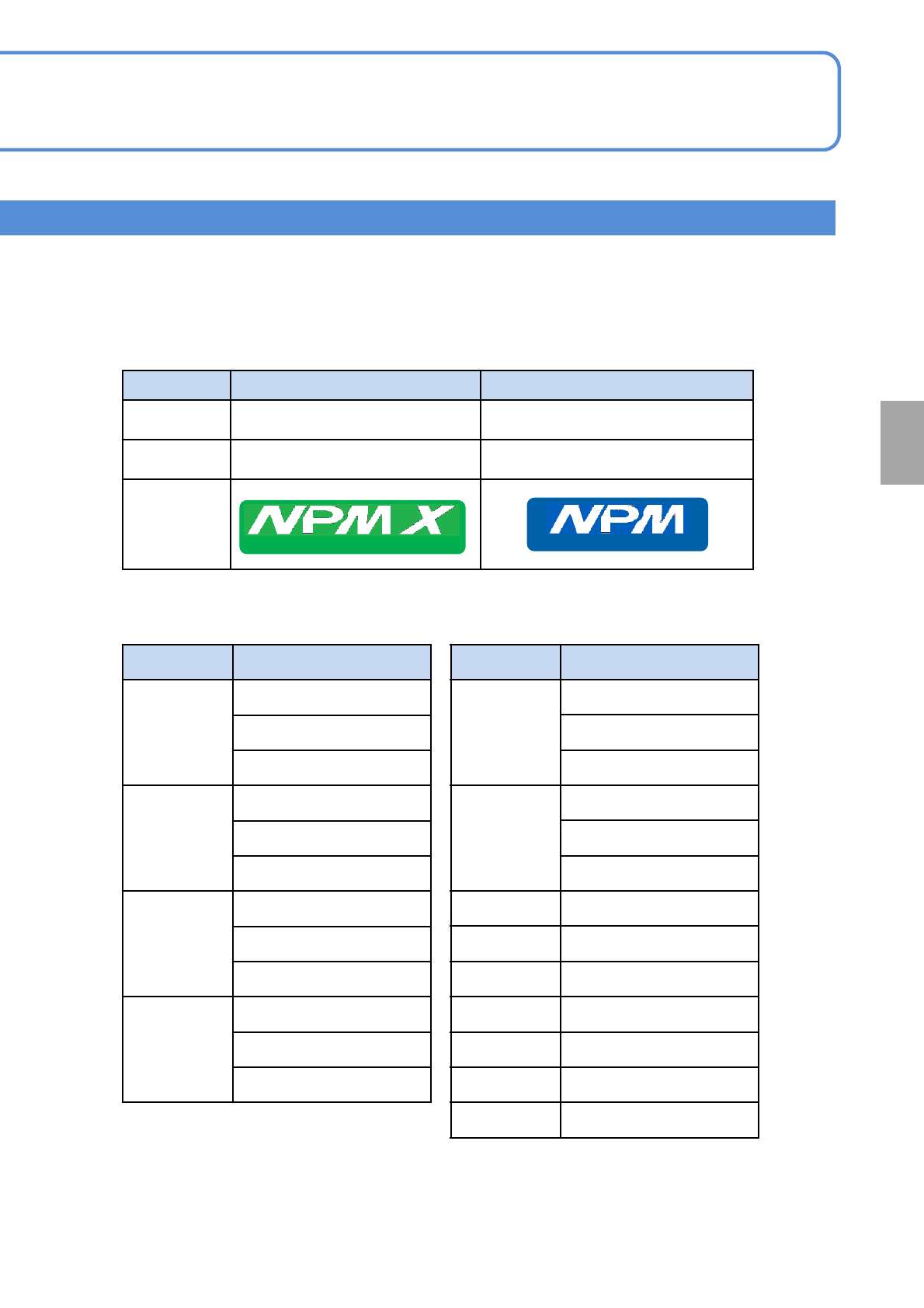

■Labels attached to the lightweight 16-nozzle head

Note that there are two types of the lightweight 16-nozzle heads, and the color and appearance of the

labels differ for easy identification.

Lightweight 16-nozzle head V2 Lightweight 16-nozzle head

Background Green Blue

Letters White White

Label

appearance

Reference: List of the model IDs and model Nos.

LIGHT WEGHT 16-NOZZLE HEAD V2

LIGHT WEGHT 16-NOZZLE HEAD

Model ID

Model No.

NPM

NM-EJM9B

NM-EJM9B -MA

NM-EJM9B -MD

NPM-D

NM-EJM1D

NM-EJM1D-MA

NM-EJM1D-MD

NPM-D2

NM-EJM5D

NM-EJM5D-MA

NM-EJM5D-MD

NPM-D3

NM-EJM6D

NM-EJM6D-MA

NM-EJM6D-MD

Model ID

Model No.

NPM-W

NM-EJM2D

NM-EJM2D-MA

NM-EJM2D-MD

NPM-W2

NM-EJM7D

NM-EJM7D-MA

NM-EJM7D-MD

NPM-W2S NM-EJM5E

NPM-TT NM-EJM3D

NPM-TT2 NM-EJM1E

NPM-DX NM-EJM8D

NPM-WX NM-EJM9D

NPM-WXS NM-EJM2E

VM101 NM-EJM3E
