NPM- TT2 EJ M1EE-MB-11M-0 2 1 1-2-1 -7 Mode switch Maintenance 11 - 2 - 1 Switc hing to the sing le lane mode 4 For Specification for feeder cart on either the front or rear 2 13 14 12 15 + (The PCB holders go down) Conf…

100%1 / 502
NPM-TT2 EJM1EE-MB-11M-02
11-2-1-6
Replacement
8
10
11
9
Close the safety cover
Close the feeder table cover
Servo switch ON
Remove the PCB support block
(Both lane 1 and 2)
PCB support block
②Pull out the PCB support block.
①From the operator side, lift the right and
left levers.
Removal lever
Removal lever
●Draw it out slowly with both hands.
●Be careful not to drop a foreign body
on the Multi-recognition camera
(LED lighting) or bump it.

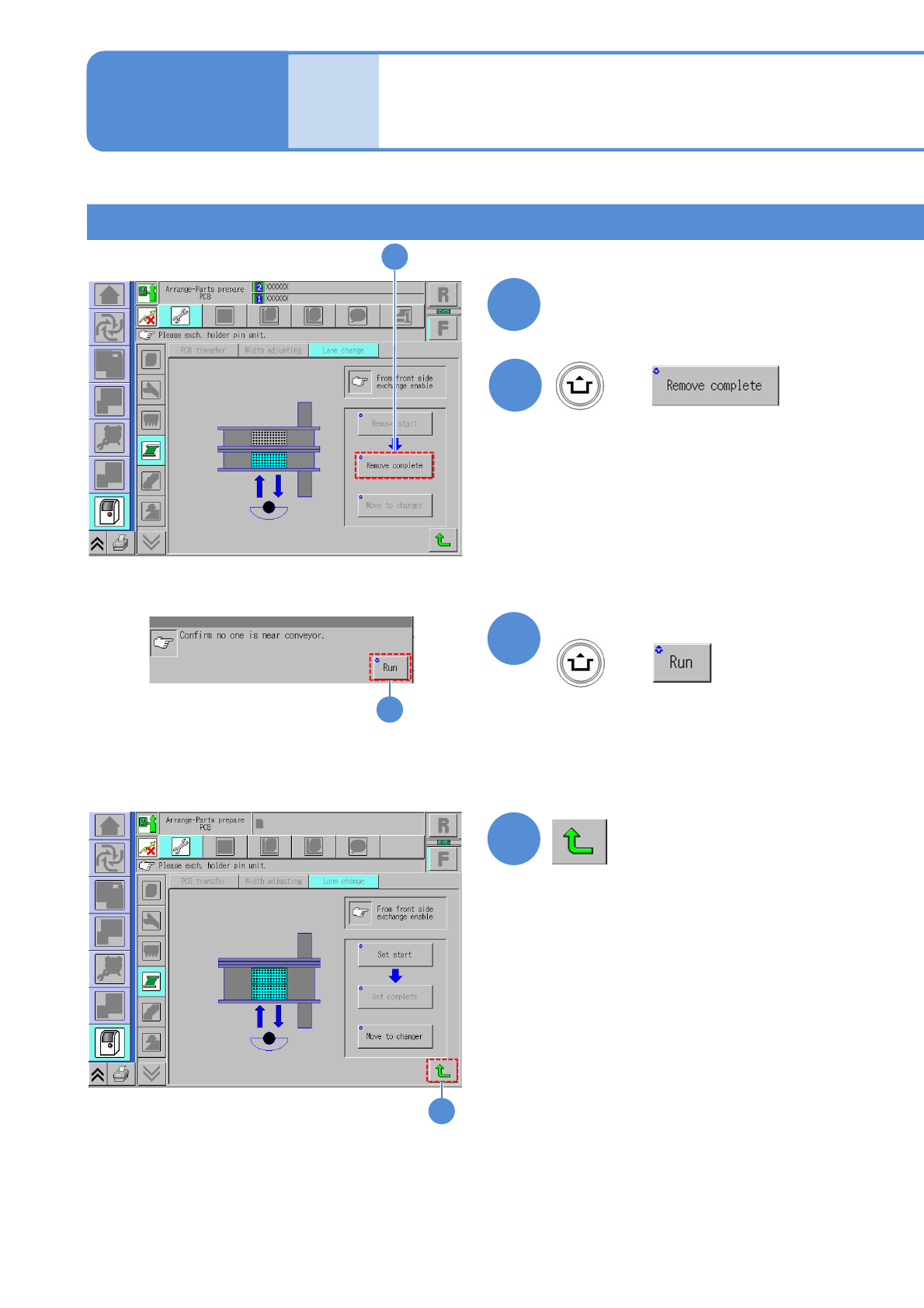

NPM-TT2 EJM1EE-MB-11M-02
11-2-1-7
Mode
switch
Maintenance
11-2-1
Switching to the single
lane mode 4
For Specification for feeder cart on either the front or rear 2
13
14
12
15
+
(The PCB holders go down)
Confirm the message
+
(Returns to the lane switch screen)
Attach the feeder cart
(→P.3-2)
13
15
14

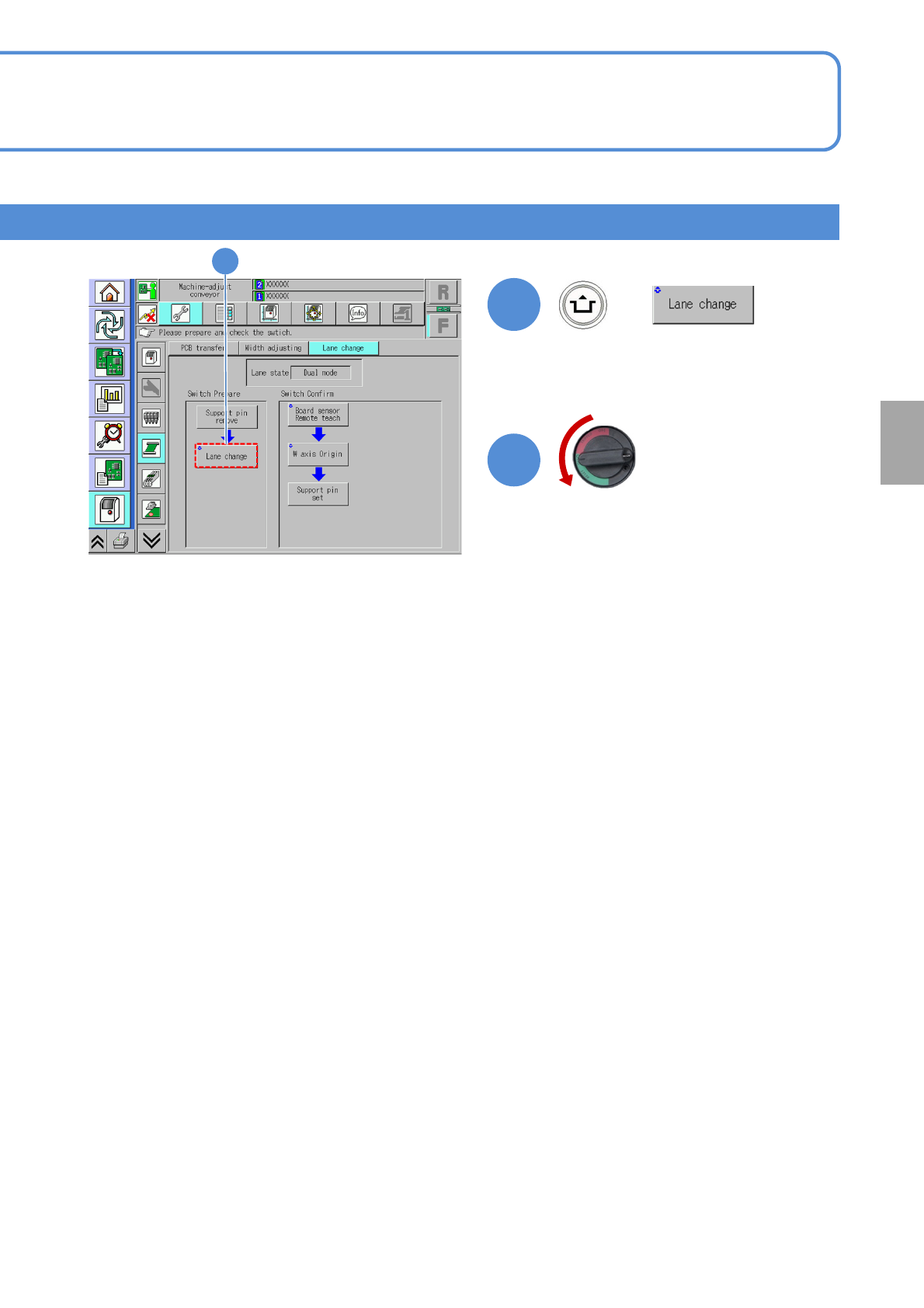

NPM-TT2 EJM1EE-MB-11M-02
11-2-1-8
16
+
(The message to shut down the power
is displayed)
Turn OFF the main
power switch
Replacement
OFF
17
16
