NPM- TT2 EJM1EE-MB-11 M-02 1 1-2-1 -10 Replacement Remove the PCB support block (Both lane 1 and 2) PCB support block ② Pull out the PCB support block. ① From the operator side, lift the right and left levers. Removal le…

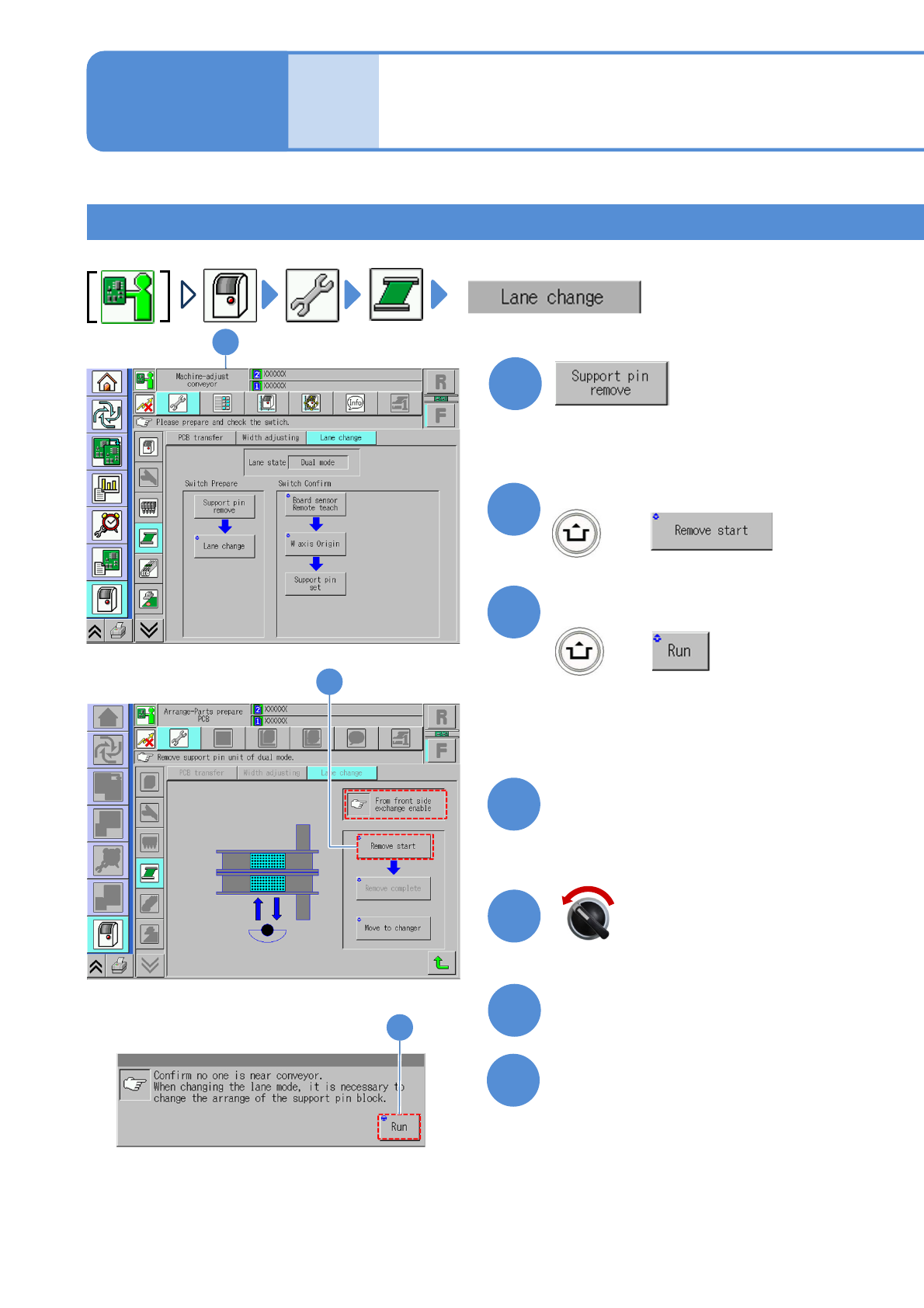

NPM-TT2 EJM1EE-MB-11M-02
11-2-1-9
1
3
+
(The message of removing the support
pin unit is displayed)
4
Detach the feeder cart
Confirm the message
2
+
(→P.3-2)
Confirm the message
6
5
Open the safety cover
7
Open the feeder table cover
Mode
switch
Maintenance
11-2-1
Switching to the single
lane mode 5
(The PCB-support block on the part of
the machine operated goes up so that
it is ready to be removed)
Feeder carts on both front and rear sides 1
Servo switch OFF
1
2
3
NPM-TT2 EJM1EE-MB-11M-02
11-2-1-10
Replacement
Remove the PCB support block
(Both lane 1 and 2)
PCB support block
②Pull out the PCB support block.
①From the operator side, lift the right and
left levers.
Removal lever
Removal lever
●Draw it out slowly with both hands.
●Be careful not to drop a foreign body
on the Multi-recognition camera
(LED lighting) or bump it.
8
10
11
9
Close the safety cover
Close the feeder table cover
Servo switch ON
NPM-TT2 EJM1EE-MB-11M-02
11-2-1-11
Mode
switch
Maintenance
11-2-1
Switching to the single
lane mode 6
Feeder carts on both front and rear sides 2
13
14
15
12
16
+
Confirm the message
+
(Returns to the lane switch screen)
Attach the feeder cart
(→P.3-2)
(The PCB holders go down)
Remove the PCB support block
from the other side according
to the steps through
1 14
13
16
14
