NPM- TT2 EJ M1EE-MB-11M-0 2 1 1-2-1 -11 Mode switch Maintenance 11 - 2 - 1 Switc hing to the sing le lane mode 6 Feeder carts on both front and rear sides 2 13 14 15 12 16 + Confirm the message + (Returns to the lane swi…

100%1 / 502
NPM-TT2 EJM1EE-MB-11M-02
11-2-1-10
Replacement

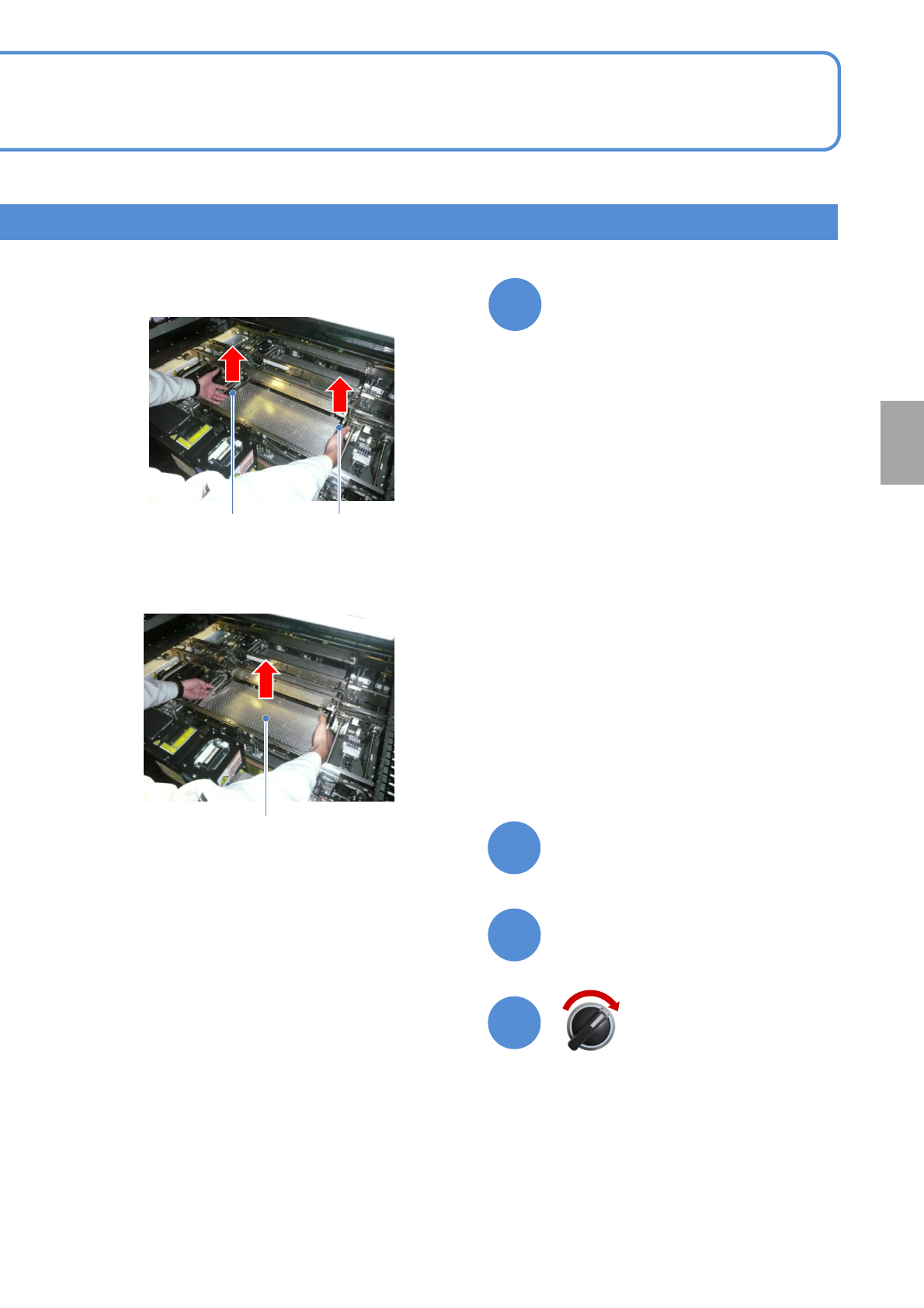

Remove the PCB support block
(Both lane 1 and 2)
PCB support block
②Pull out the PCB support block.
①From the operator side, lift the right and
left levers.
Removal lever
Removal lever
●Draw it out slowly with both hands.
●Be careful not to drop a foreign body
on the Multi-recognition camera
(LED lighting) or bump it.
8
10
11
9
Close the safety cover
Close the feeder table cover
Servo switch ON
NPM-TT2 EJM1EE-MB-11M-02
11-2-1-11

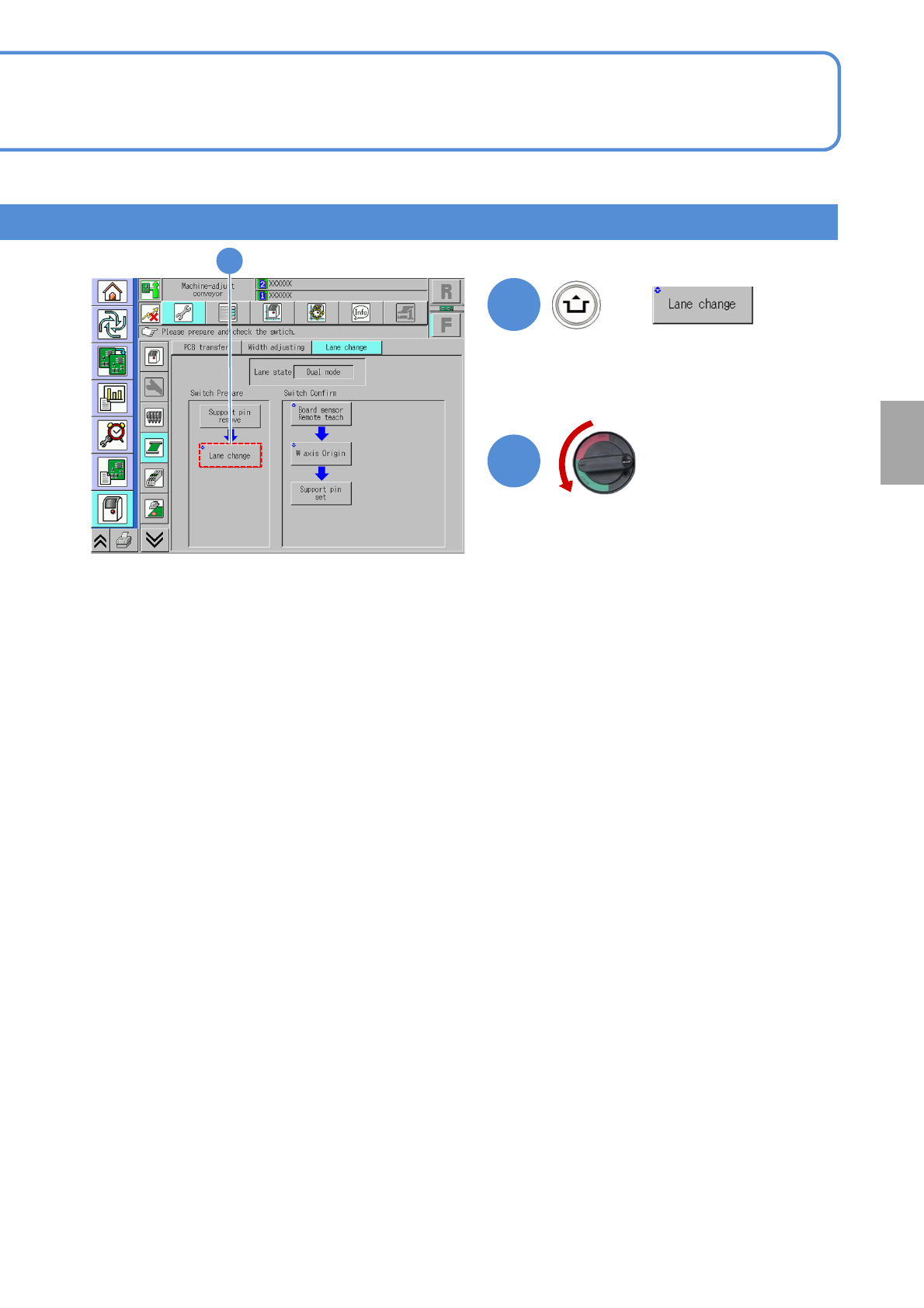

Mode
switch
Maintenance
11-2-1

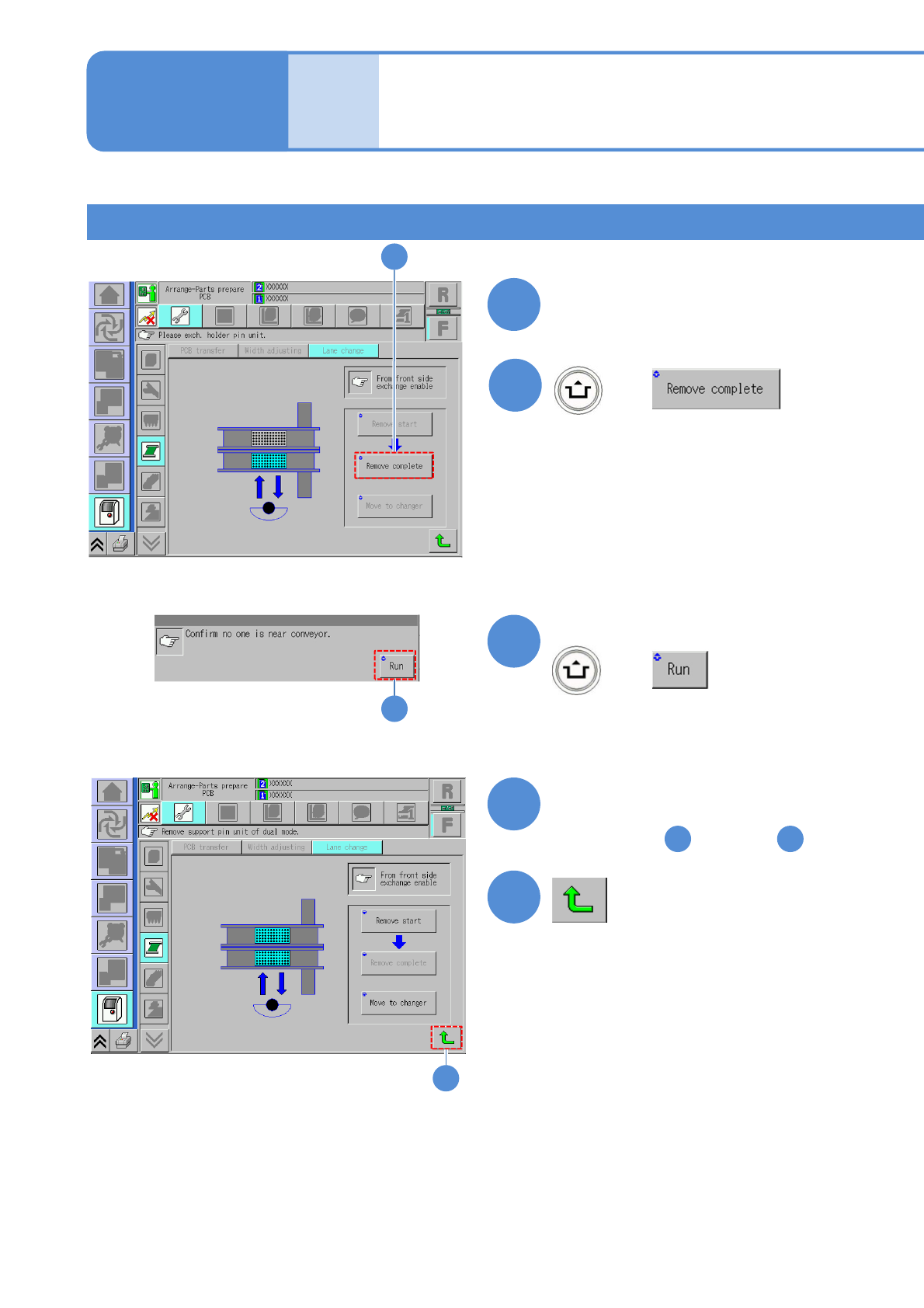

Switching to the single
lane mode 6
Feeder carts on both front and rear sides 2
13
14
15
12
16
+
Confirm the message
+
(Returns to the lane switch screen)
Attach the feeder cart
(→P.3-2)
(The PCB holders go down)
Remove the PCB support block
from the other side according
to the steps through
1 14
13
16
14
NPM-TT2 EJM1EE-MB-11M-02
11-2-1-12
+
17
(The message to shut down the power
is displayed)
Replacement
Turn OFF the main
power switch
OFF
18
17
