NPM-TT2 EJM1EE-MB-12M-04
12-3-4
Consumable parts
replacement
NPM-TT2 EJM1EE-MB-12M-04

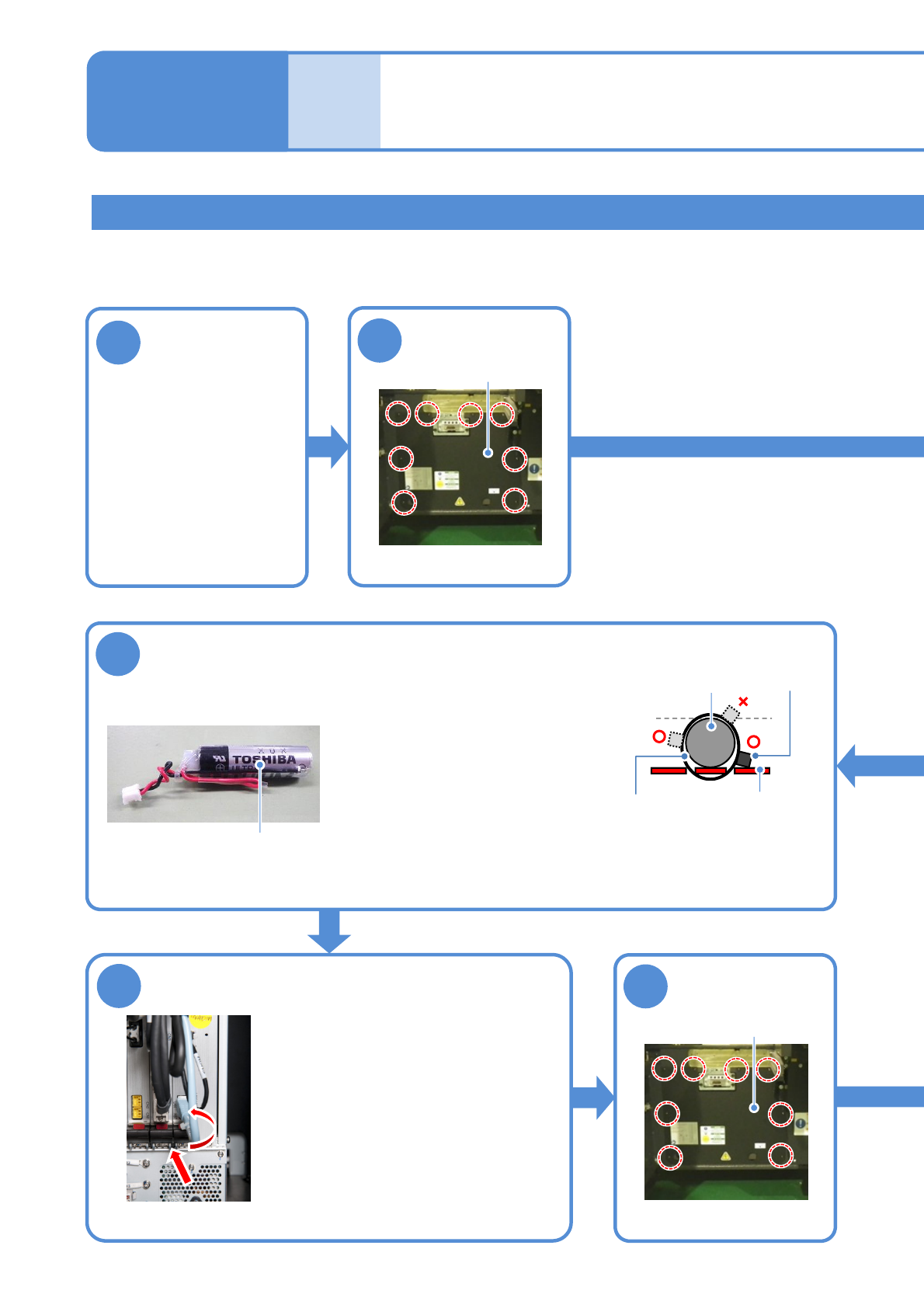

Replacing the NCIO board battery
Replacing the
batteries 3
6
Tool used: Phillips screwdriver Time required: 30 minutes
●Please replace the battery within two hours.
●Slide the board onto the guide
and pull up the top and bottom
levers inwards to set it.
●Connect the cable.
●Screw (2 pcs) tightening torque:
240 ±20 cNꞏm
5
Replace the battery with a new one
Install the NCIO board
12-3-5
7
Maintenance
12-3
1
2
Detach the cover
Cover
●Eight screws
(Front)
Attach the cover
Detach the tray
feeder or the
feeder cart
on the front
●For a tray feeder
(→ P.14-8)
●For a feeder cart
(→ P.3-2)
●Use N610156136AA or
equivalent as a replacement
battery.
●Secure the new battery to the
board using two tie wraps
(2.5 mm or less in width, and
UL94V-0 rated (flameproof)
or equivalent).
●Connect the connector
Battery
■Connection cross-section
Tie wrap NCIO board
Battery
Tied part
●When you tie the battery, the tied part of the tie wraps should
not be higher than the battery.
●After tied, trim the excess tie wrap with a nippers.
●Eight screws
(Front)
Cover
NPM-TT2 EJM1EE-MB-12M-04

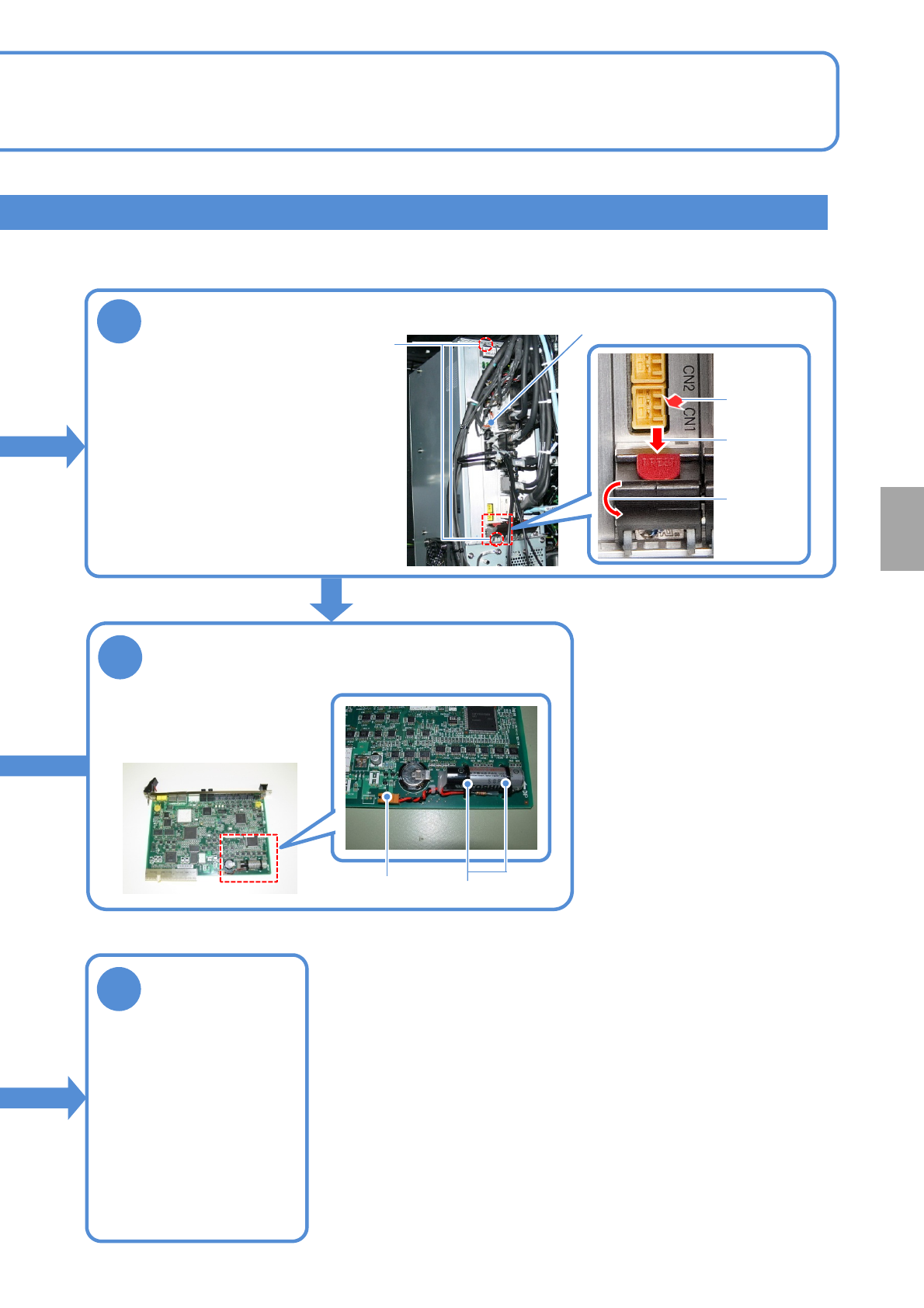

NCIO board
3
●Disconnect the cable.
●Loosen the screws securing
the NCIO board.
●Pull out the board while
holding down the red lock
release buttons (PRESS) of
the levers at the top and the
bottom of the board and
moving the lever down.
Remove the NCIO board
12-3-6
Screws (2)
8
4
Remove the battery
●Disconnect the battery
connector.
●Cut the tie wraps (2) to
remove the battery.
Tie wraps
Connector
Press
Move the
lever down
Pull out the
board
Attach the tray
feeder or the
feeder cart
on the front
●For a tray feeder
(→ P.14-8)
●For a feeder cart
(→ P.3-2)
