NPM-TT2 EJM1EE-MB-12M-04
12-3-12
10
Attach the UPS battery
②Secure it with six screws.
11
①Plug the connector
Connector
12
Attach the
battery cover
●Screws (2)
Battery cover
Secure with
screws.
16
17
●Screws (3)
Plug the connector of the UPS battery
Wire
sticker
Front side of
FA computer
Rear side of
FA computer
●Affix the label supplied with
the battery and enter the
date for the next
replacement (current
replacement date + 6 years).
Enter the date for
replacement of
the UPS battery
Replacement
date label
Consumable parts
replacement
①Slide the UPS battery toward you and
install.
Earth strap
●The rear left screw
viewed from the
machine front is
tightened together
with the earth strap.
②Fix the cable with wire
sticker
NPM-TT2 EJM1EE-MB-12M-04
12-4-1
Replacing the air filter
element of the placement
head (Light weight 8-nozzle head) 1
Maintenance
12-4
3
1
ACTIVATION
2
7
8
9
1
2
LeverJoint
This section describes how to replace an air filter element of the placement head (Light weight 8-nozzle head).
Tool used: None Time required: 15 minutes (per head) Lifetime (reference): 6,000 [h]
Replace the air filter element
●Handle the air filter element
with care when replacing
it.(→P.12-4
-3)
Air filter element
Joint
O-ring
●Air filter element
Part No.: N510059928AA
●Check the O-ring for any
deterioration.
If deteriorated, replace it with
a new one.
●O-ring
Part No.: N510059867AA
Press the lever
and insert the
joint with the air
filter element
●8 locations
●Be careful not to drop the
air filter element.
●Do not hold the head
camera and perform
maintenance.
OFF
SERVO
Detach the tray
feeder or the
feeder cart
●For a tray feeder
(→ P.14-8)
●For a feeder cart
(→ P.3-2)
NPM-TT2 EJM1EE-MB-12M-04

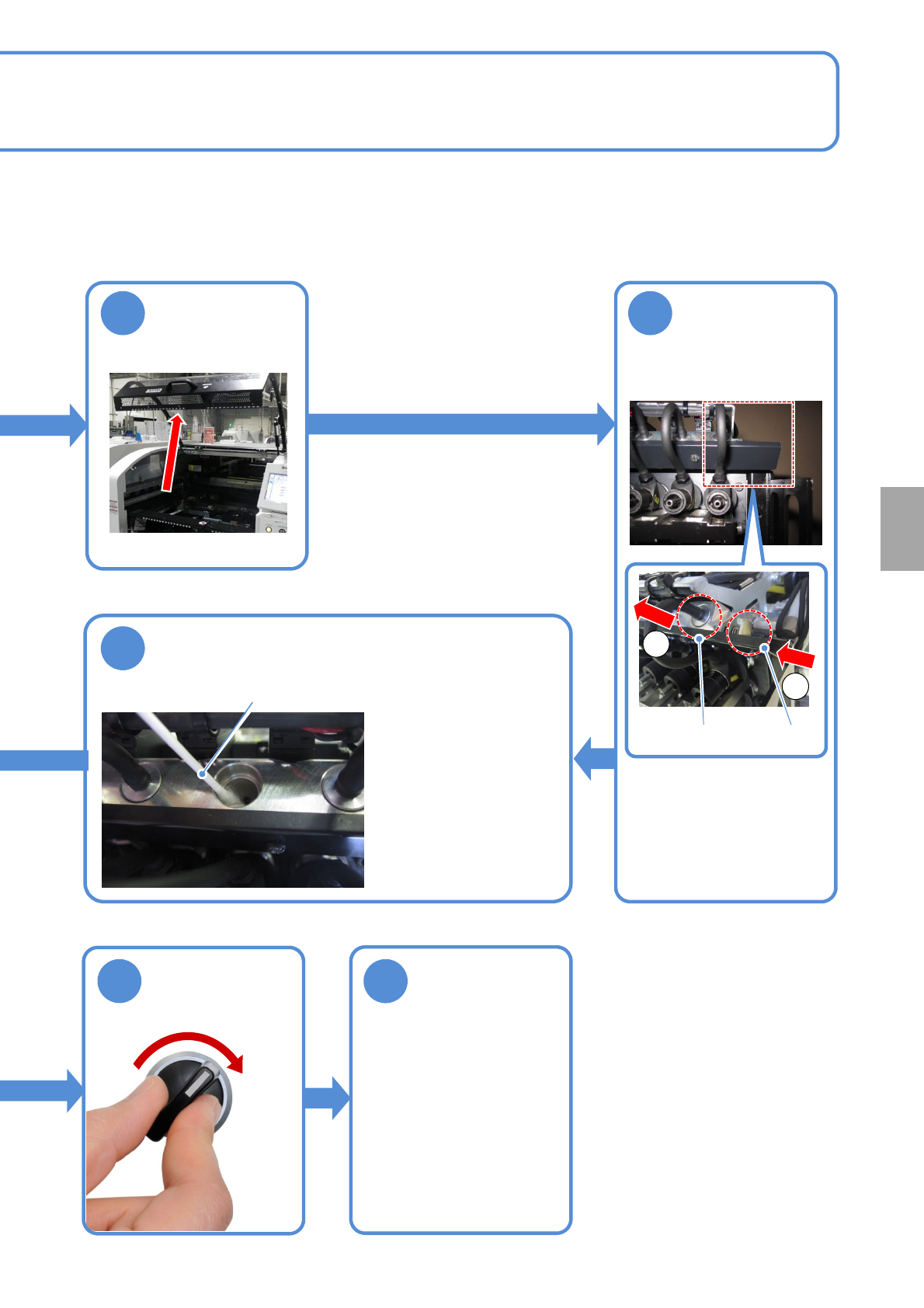

12-4-2
Consumable parts
replacement
4 5
6
11
10
1
2
LeverJoint
Swab
Press the lever
and pull out the
joint with the air
filter element
●8 locations
●Be careful not to drop the
air filter element.
●Do not hold the head
camera and perform
maintenance.
Clean inside the filter using a swab
●Do not use an air blow gun
SERVO
ON
Attach the tray
feeder or the
feeder cart
●For a tray feeder
(→ P.14-8)
●For a feeder cart
(→ P.3-2)
