NPM- TT2 EJM1EE-MB -12M-04 12-6 -1 R eplacing the air filter element of the placement head (3-nozzle head V2) 1 Maintenance 12-6 This section describes how to repl ace the air filter element of the placement head (3-nozz…

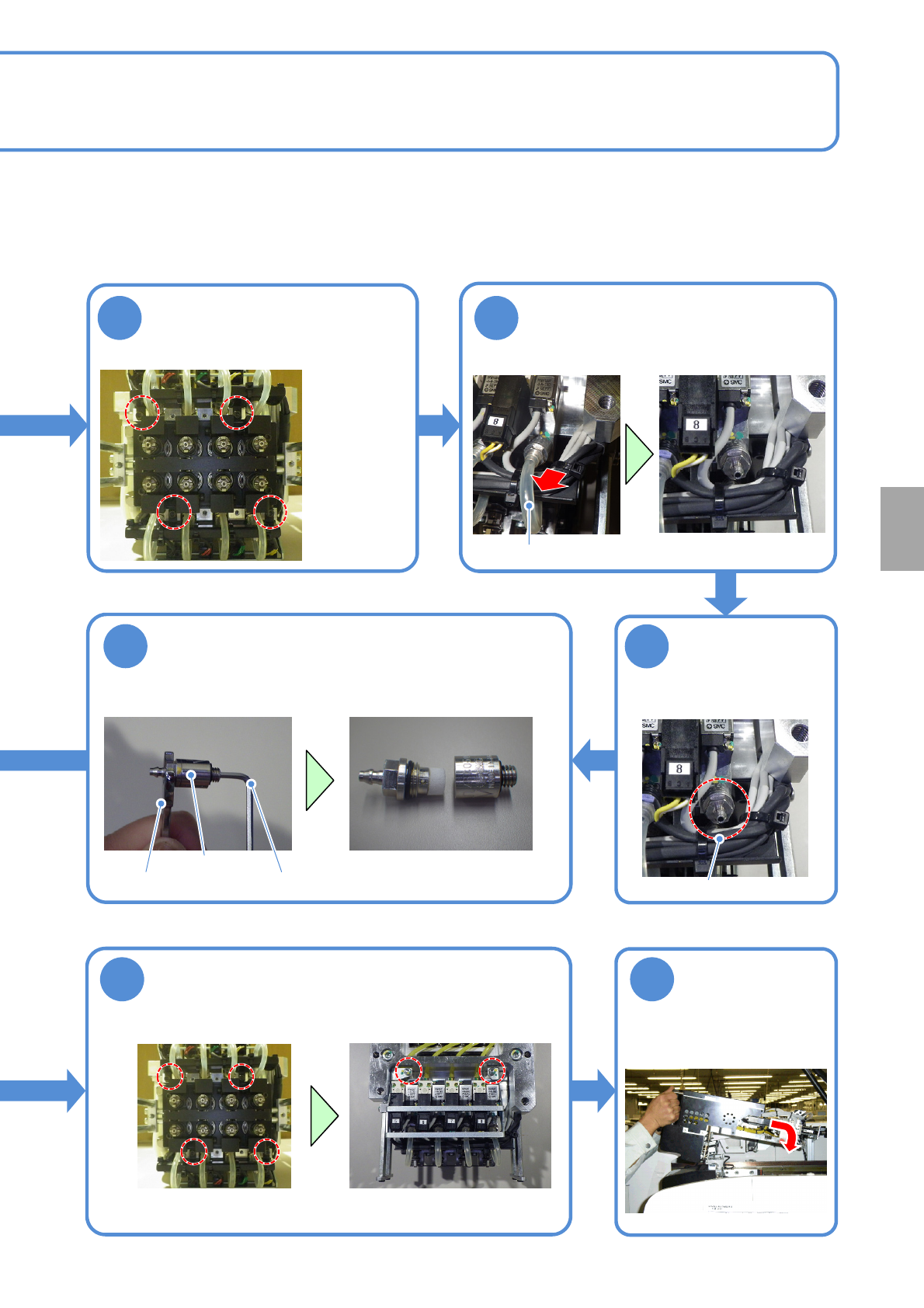

NPM-TT2 EJM1EE-MB-12M-04
12-5-2
Consumable parts
replacement
12 13
3 4
6
Filter
Allen wrench
Spanner
5
Tube
Filter
Remove screws for the wiring
fixing bracket
Tool used: Allen wrench(2.5 mm)
●Four screws
Remove the tube
●8 locations
Remove the filter
●8 locations
Tool used: Spanner (7 mm)
Disassemble the filter
Tool used: Spanner (7 mm), Allen wrench(2 mm)
●Disassemble the filter using the spanner Allen wrench
●Condition after
disassembly
Attach the screws for the wiring fixing
bracket and attach the bracket
●Four screws (Two on each
sides)
Tool used: Allen wrench (2.5 mm)
●Four screws
Attach the head
and perform
calibration
(→P.11-1)

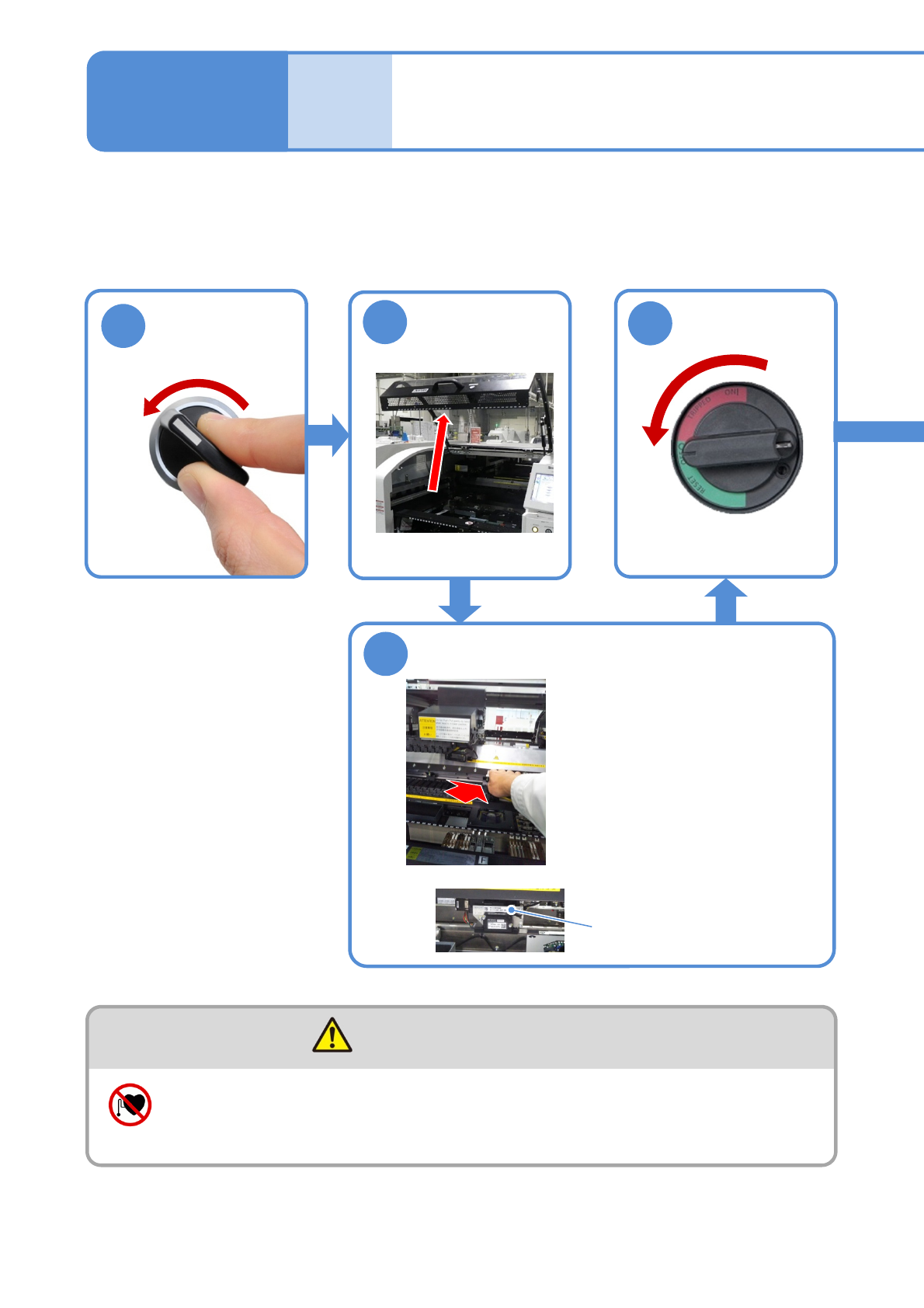

NPM-TT2 EJM1EE-MB-12M-04
12-6-1
Replacing the air filter
element of the placement
head (3-nozzle head V2) 1
Maintenance
12-6
This section describes how to replace the air filter element of the placement head (3-nozzle head V2).
Tool used: Swab
Time required: 5 minutes (per head)
Lifetime (reference): 6,000 [h]
1
2
3
●When the front head is replaced,
move the front head to the rear
side. Replace it from the rear side.
●Be careful not to apply force to the
X-axis linear scale protective
cover during filter replacement.
(The cover may be deformed and
interfere with the linear scale
reading head.)
Push the X-axis to the other side of the head
to be replaced
4
WARNING
Individuals with pacemakers, etc. should keep away from the linear motor
(Risk of accidents caused by malfunction due to magnetic force)
OFF
OFF
SERVO
Linear scale
protective cover

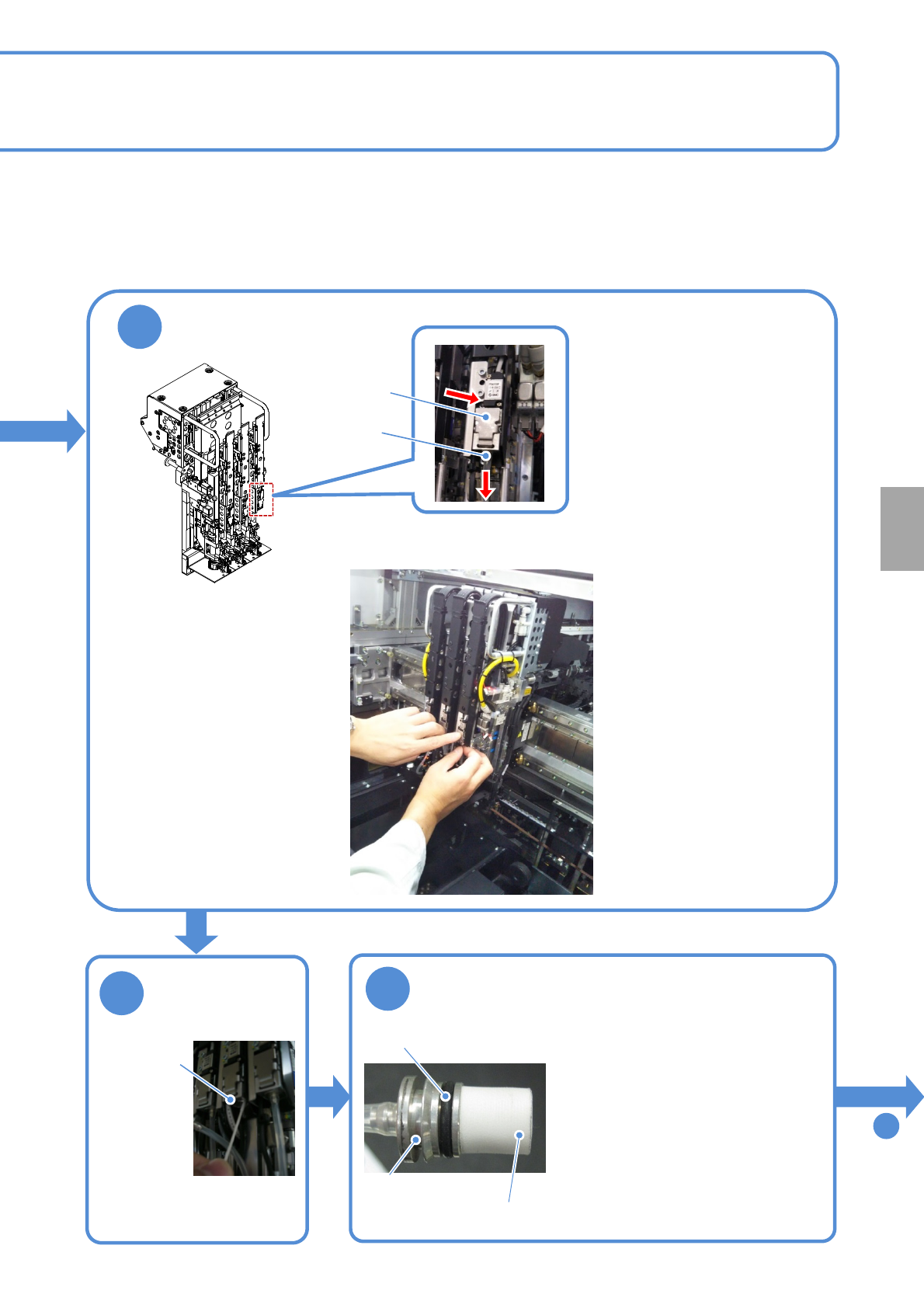

NPM-TT2 EJM1EE-MB-12M-04
12-6-2
Consumable parts
replacement
6
Clean the filter
mount part
●Using a cotton swab,
remove all dust inside the
filter mount part.
Filter mount
part
5
Remove the joint
●Push the lever and remove the filter together with the joint.
7
Replace the air filter element
Joint
Air filter element
O-ring
To
8
●Handle the air filter element with
care when replacing it.
(→P.12-4
-3)
●Air filter element
Part No.: MTNP000972AA
●Check the O-ring for any
deterioration. If deteriorated,
replace it.
●O-ring
Part No.: MTNP001033AA
Lever
Joint
