NPM- TT2 EJM1EE-MB -12M-04 12-6 -3 R eplacing the air filter element of the placement head (3-nozzle head V2) 2 Maintenance 12-6 8 Attach the joint ● Push the lever and attach the filter together with the joint. ● Pull t…
NPM-TT2 EJM1EE-MB-12M-04
12-6-2
Consumable parts
replacement
6
Clean the filter
mount part
●Using a cotton swab,
remove all dust inside the
filter mount part.
Filter mount
part
5
Remove the joint
●Push the lever and remove the filter together with the joint.
7
Replace the air filter element
Joint
Air filter element
O-ring
To
8
●Handle the air filter element with
care when replacing it.
(→P.12-4
-3)
●Air filter element
Part No.: MTNP000972AA
●Check the O-ring for any
deterioration. If deteriorated,
replace it.
●O-ring
Part No.: MTNP001033AA
Lever
Joint
NPM-TT2 EJM1EE-MB-12M-04
12-6-3
Replacing the air filter
element of the placement
head (3-nozzle head V2) 2
Maintenance
12-6

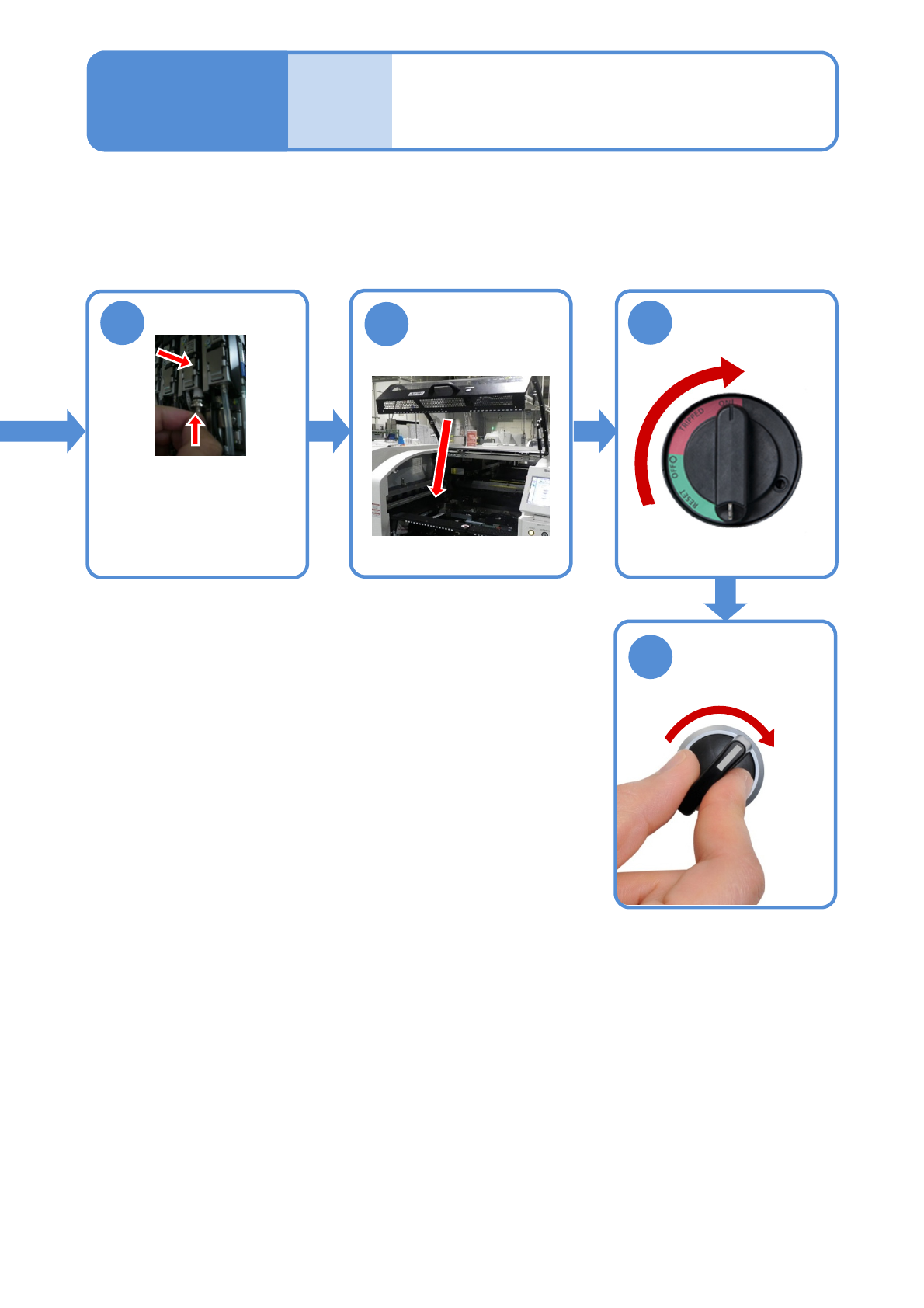

8
Attach the joint
●Push the lever and attach
the filter together with the
joint.
●Pull the joint lightly and
make sure it will not come
off.
9
11
10
ON
SERVO
ON
NPM-TT2 EJM1EE-MB-12M-04
12-6-4
Consumable parts
replacement
