NPM-TT2 EJM1EE-MB-12M-04
12-6-4
Consumable parts
replacement
NPM-TT2 EJM1EE-MB-12M-04
12-7-1
7
Limited-life(reference)：6000[h]
1
6
Describes the procedure for replacing the air filter element of the placement head (3-nozzle head).
Tool used: Allen wrench (2.5 mm) or Allen key driver (N510046569AA) included in the maintenance jig set
(option), swab
Time required: 10 minutes (per head)

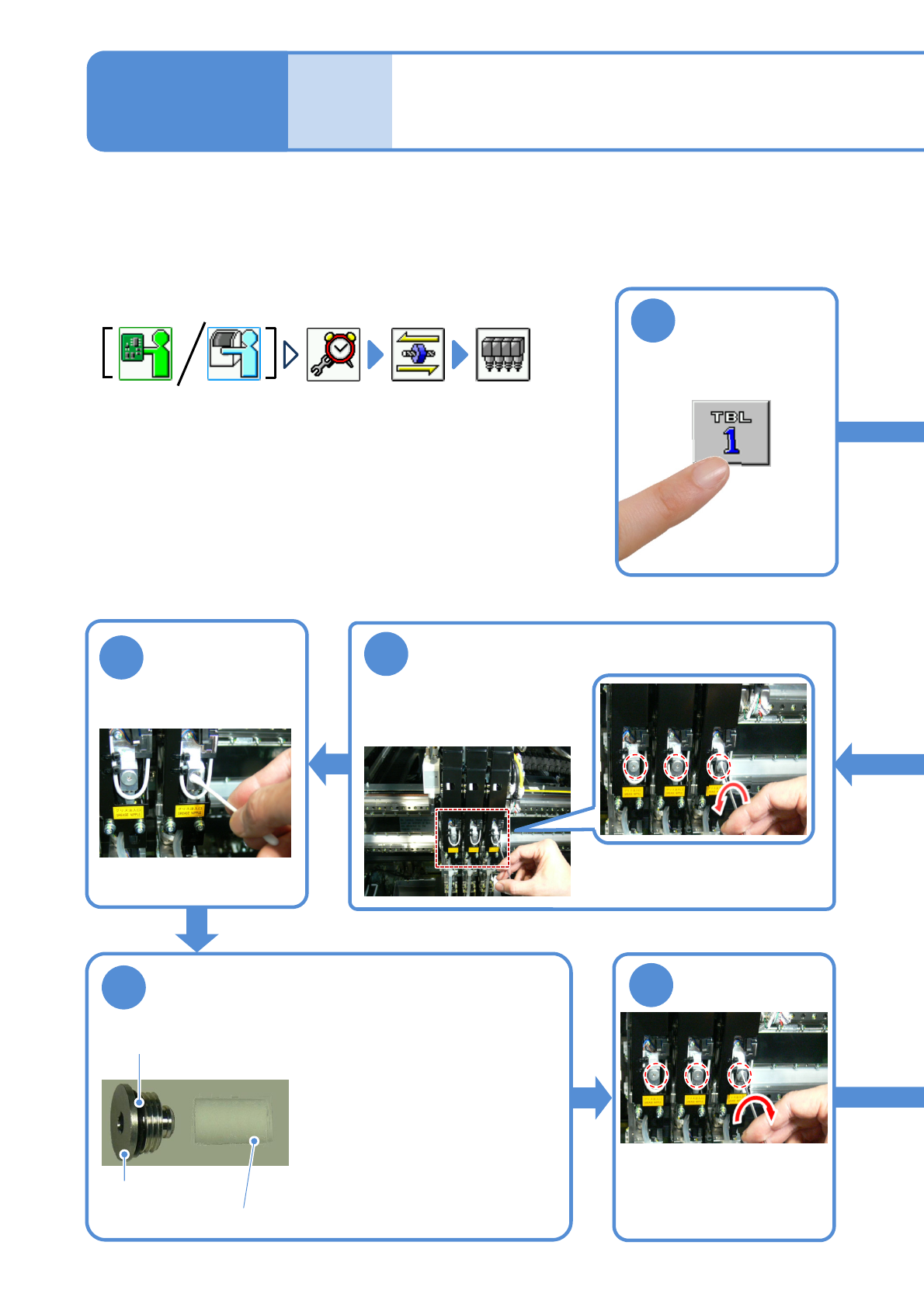

Remove the
caps
●Three locations
●Be careful about
dropping the caps.
Clean inside the
filter with a
cotton swab
●Do not use an air blow gun.
Replacing the air filter
element of the placement
head (3-nozzle head)
Maintenance
12-7
8
Cap
O-ring
Replace the air filter element
●Air filter element product
No.: N510059196AA
●Be careful of handling an air
filter element when replacing
it.(→P.12-4
-3)
●O-ring product
No.: N510059865AA
●Confirm whether the O-ring is
deteriorated. If so, replace it.
Air filter element
●Three locations
●Be careful about dropping
the cap.
●Tightening torque
: 0.5 ±0.1 N・m
Attach the caps
9
NPM-TT2 EJM1EE-MB-12M-04
12-7-2
2
12
Attach the tray
feeder or the
feeder cart
●For a tray feeder
(→ P.14-8)
●For a feeder cart
(→ P.3-2)
Consumable parts
replacement
3

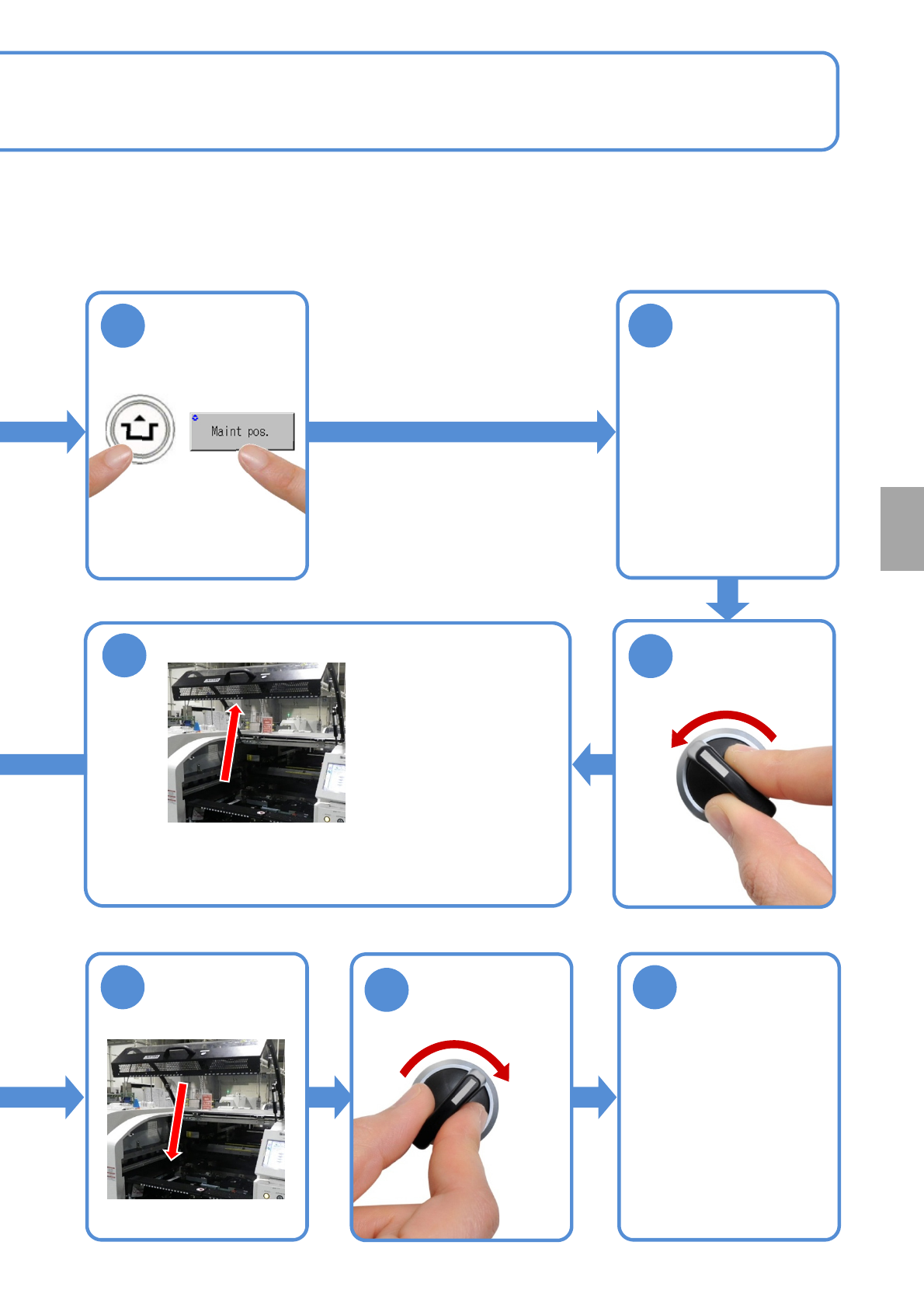

Detach the tray
feeder or the
feeder cart
●For a tray feeder
(→ P.14-8)
●For a feeder cart
(→ P.3-2)
OFF
SERVO
4
5
●Work at the front side for front feeder cart specification
and rear tray feeder specification.
●Work at the rear side for rear feeder cart specification.
SERVO
ON
11
10
ACTIVATION
