NPM-TT2 EJM1EE-MB-13M-02
Plane
calibratio
n XY
9

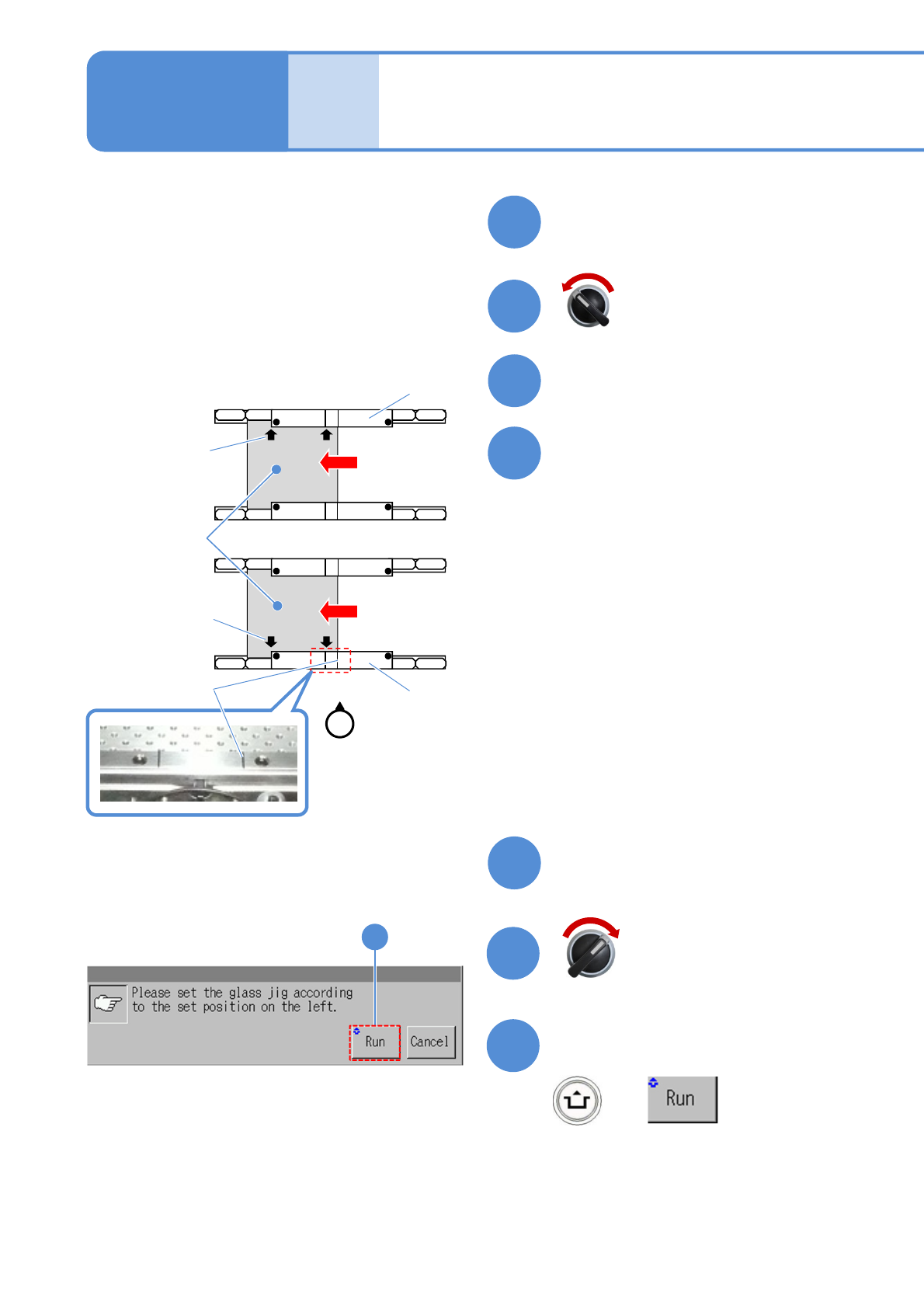

Prepare for the second plane
calibration XY
11
10
Open the safety cover
12
Set the plane calibration jig
Maintenance
13-3-1
①Manually move the calibration jig and
align the right end of the plane
calibration jig to the right side guide
line on the PCB conveyor upper
surface. (Both on lane 1 and 2.
Common in each PCB flow direction)
②Set the reference mark on the plane
calibration jig to the reference rail.
③Attach the plane calibration jig to the
reference rail.
13
Close the safety cover
14
15
Confirm the message
+
15
Servo switch OFF
Servo switch ON
Operator
Guide line
Reference mark
Reference mark
Reference rail
Reference rail
Lane 1
Lane 2
Plane
calibration jig
●If you cannot set a plane calibration jig,
manually load the PCB from the pre-
process machine and set the jig using
the workbench (please prepare
yourself).
13-3-1-3
Plane calibration XY
(PC size conveyor) 2
●You can also remove the feeder cart
and set a plane calibration jig.
(Plane calibration XY is measured on the
front head and rear head, in that order)
(After measurement, the head moves to the
retraction position)
NPM-TT2 EJM1EE-MB-13M-02
16
Confirm that it has been
successfully completed
16
Calibration
17
Confirm the message
(The plane calibration XY data is saved)
●When you do not save the data
●To cancel
(The screen remains as it is
in )
16
17
13-3-1-4
NPM-TT2 EJM1EE-MB-13M-02
Plane
calibratio
n XY
18
Prepare for removing the plane
calibration jig
Maintenance
13-3-1
Open the safety cover
19
20
Push the plane calibration jig
out of the machine by hand
through the left-hand or right-
hand transfer conveyor.
21
22
Close the safety cover
23
24
24
(Completes plane calibration XY
operation)
Confirm the message
●To cancel
(The screen remains as it is
in )
16
Servo switch OFF
Servo switch ON
13-3-1-5
Plane calibration XY
(PC size conveyor) 3
