NPM-TT2 EJM1EE-MB-13M-02
16
Confirm that it has been
successfully completed
16
Calibration
17

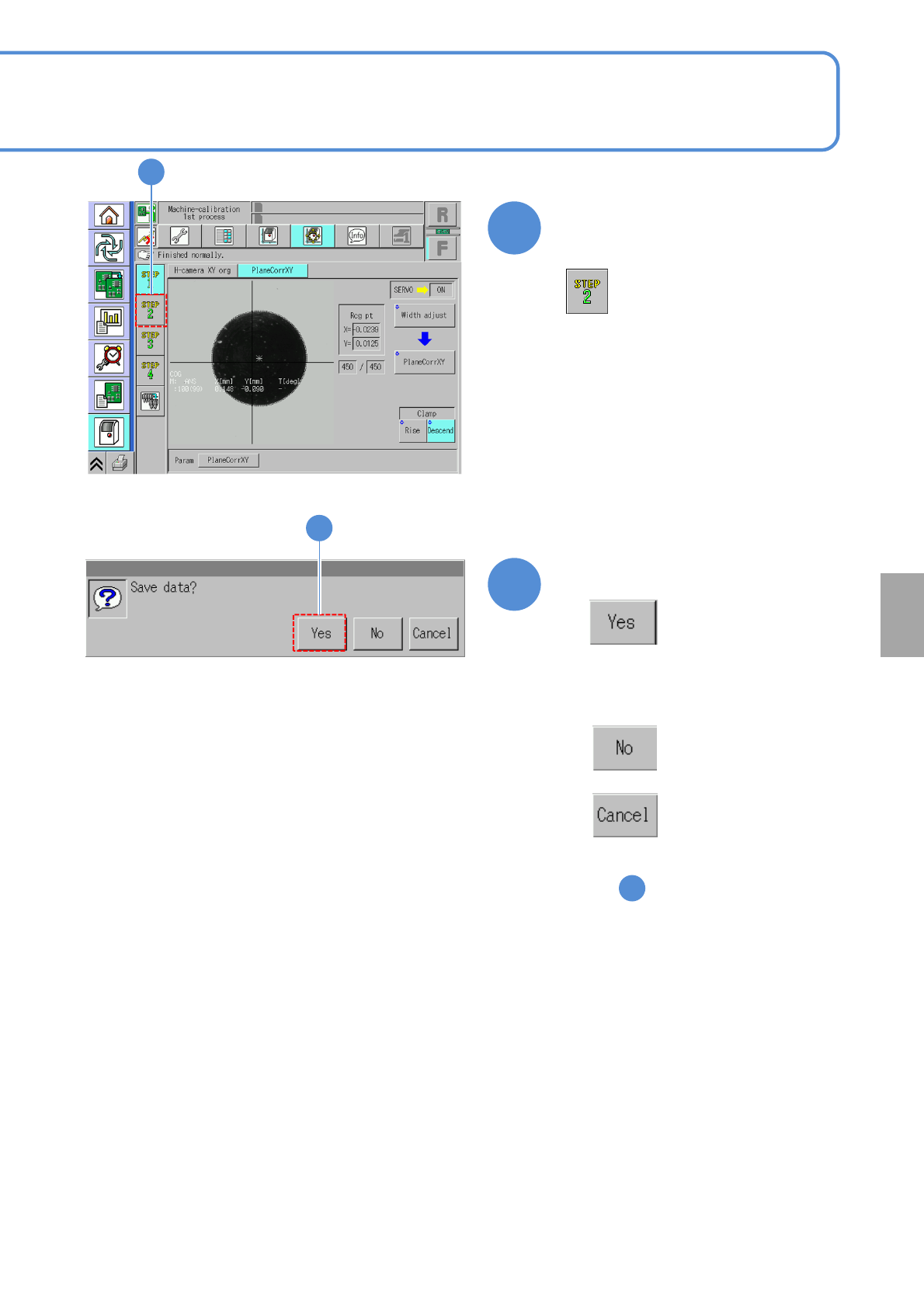

Confirm the message
(The plane calibration XY data is saved)
●When you do not save the data
●To cancel
(The screen remains as it is
in )
16
17
13-3-2-4
●If error occurs, check that the plane
correction jig is dirty. In addition,
correctly install it again.
NPM-TT2 EJM1EE-MB-13M-02
Plane
calibratio
n XY
18
Prepare for removing the plane
calibration jig
Maintenance
13-3-2
Open the safety cover
19
20
Push the plane calibration jig
out of the machine by hand
through the left-hand or right-
hand transfer conveyor.
21
22
Close the safety cover
23
24
24
(Completes plane calibration XY
operation)

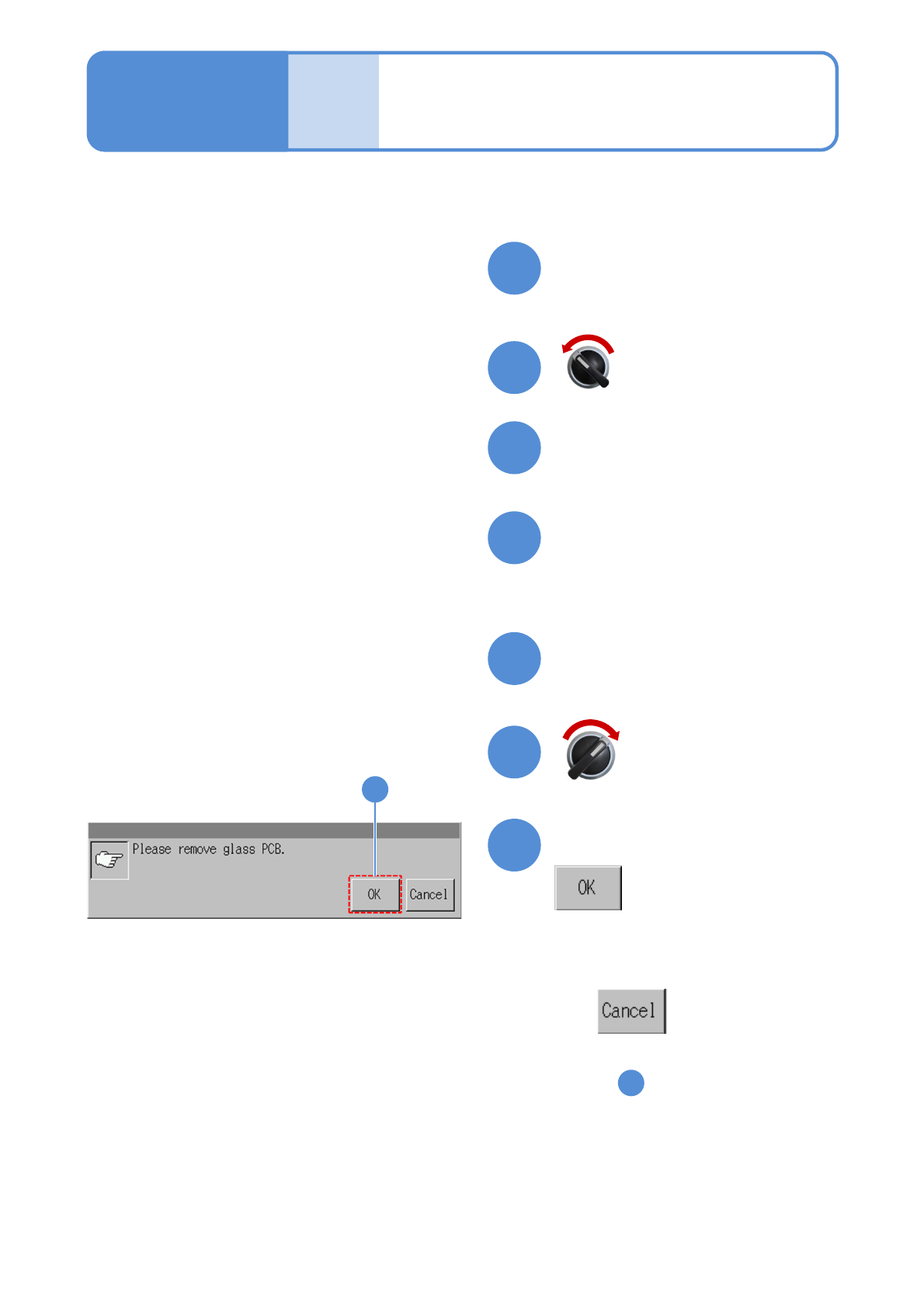

Confirm the message
●To cancel
(The screen remains as it is
in )
16
Servo switch OFF
Servo switch ON
13-3-2-5
Plane calibration XY
(M size conveyor) 3
NPM-TT2 EJM1EE-MB-13M-02
Calibration
