NPM- TT2 EJ M1EE-MB-13M-0 2 2 Head / Plane calibr a tion Z 1 Choose a head f or calibration + (The head moves to the work position) 2 Explains the method for calibrating the head / plan e calibratio n Z, tak ing for an e…
NPM-TT2 EJM1EE-MB-13M-02
Calibration
13-3-2-6
NPM-TT2 EJM1EE-MB-13M-02
2

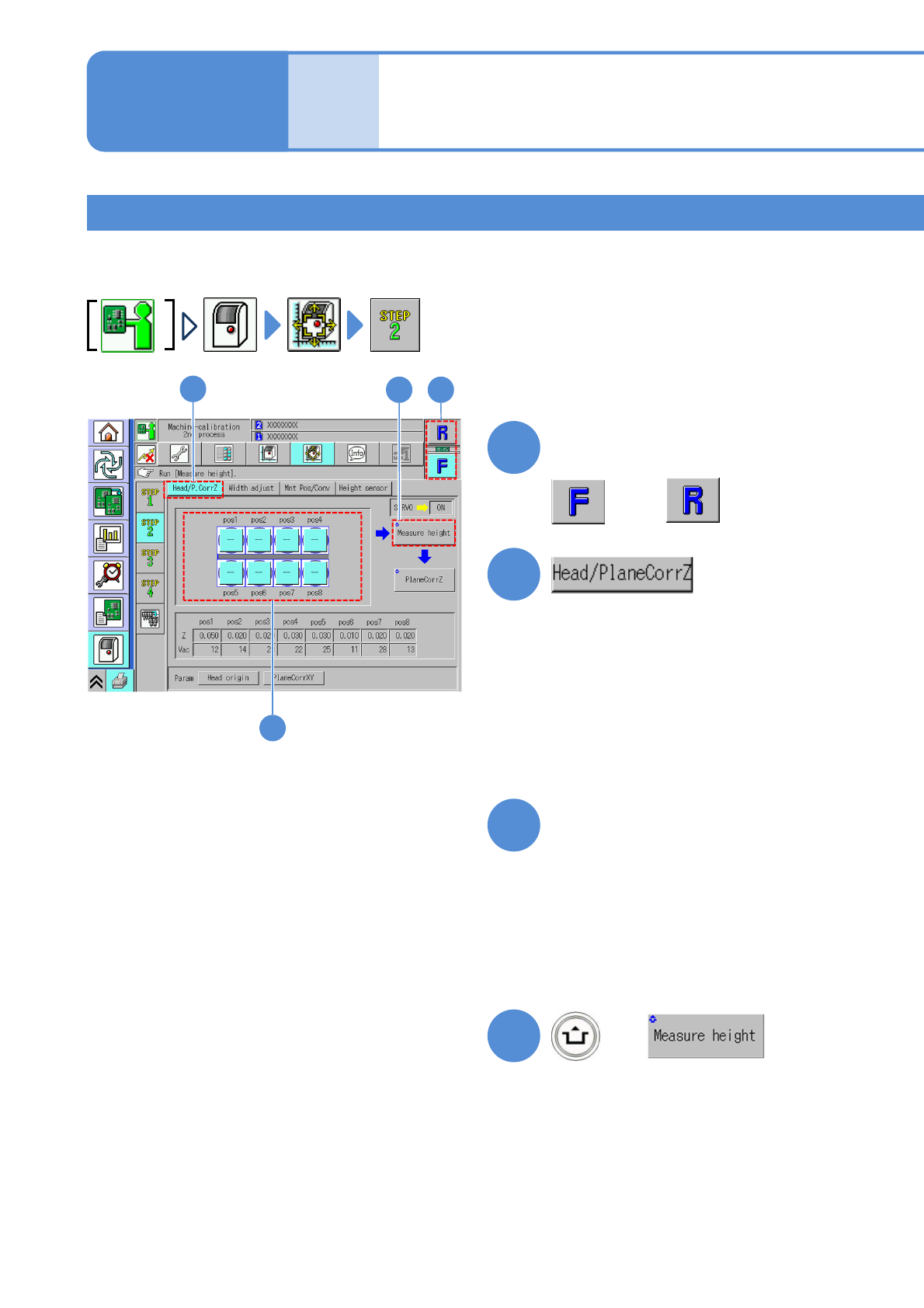

Head / Plane calibration
Z 1
Choose a head for calibration
+
(The head moves to the work position)
2
Explains the method for calibrating the head / plane calibration Z, taking for an example, the 8-nozzle head;
however, the same method can also be applied to the 3-nozzle heads.
Placement head 1
3
4
1
4
13-4-1
1
3
Choose nozzle positions to
measure the height
●On the default screen, all the nozzle
positions are selected. If there is a
nozzle position which you do not wish
to calibrate, deselect it by pressing its
box.
or
Maintenance
13-4
NPM-TT2 EJM1EE-MB-13M-02

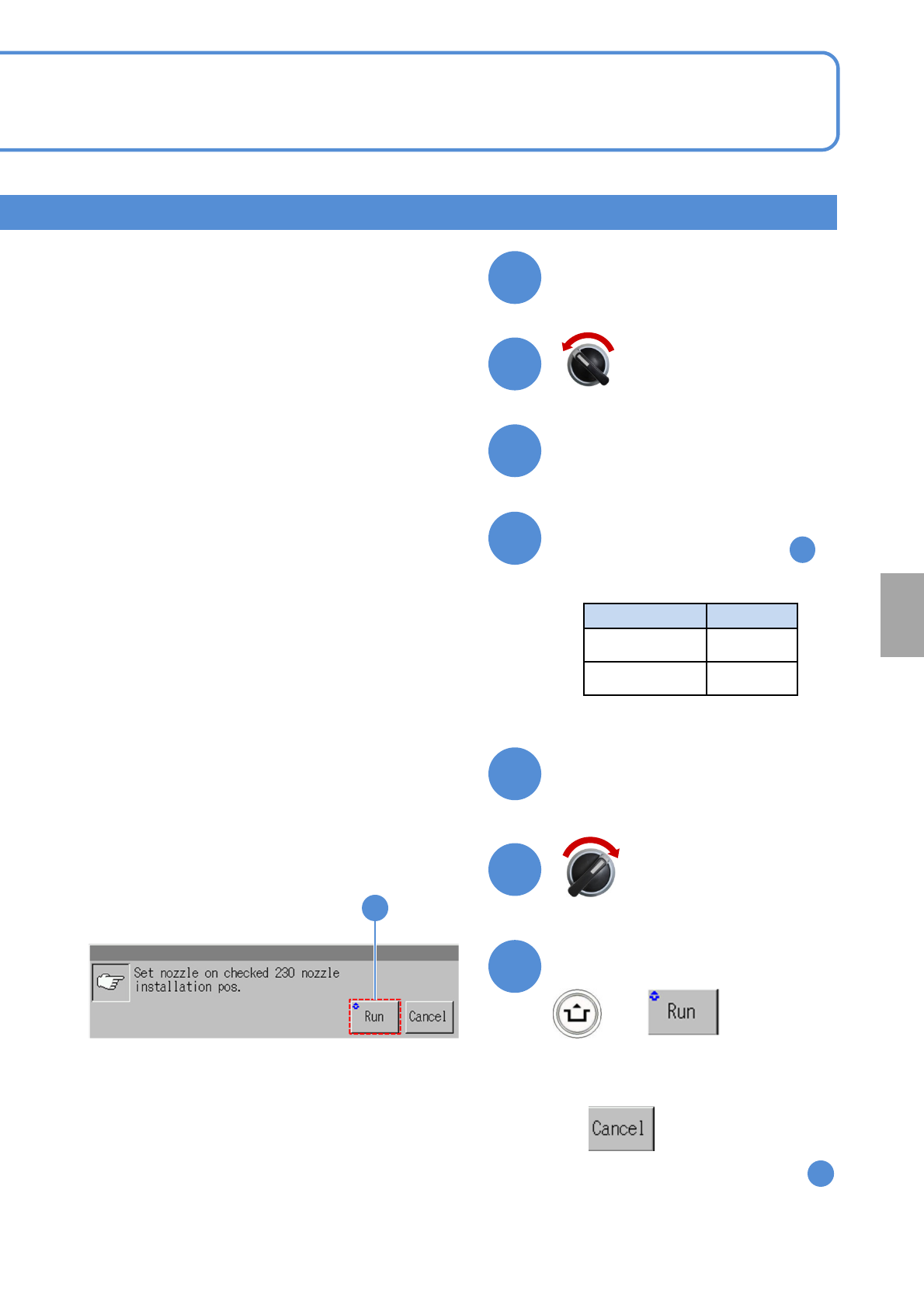

5
6
Open the safety cover
Prepare for height
measurement
7
Install nozzles to the nozzle
positions selected in step
8
3
10
Close the safety cover
9
11
(The height measurement is completed)
+
Confirm the message
●To cancel
(The screen remains as it is in )
3
11
13-4-2
●Nozzle used
Head type Nozzle type
8 230C
3 1002
Calibration
Servo switch OFF
Servo switch ON
