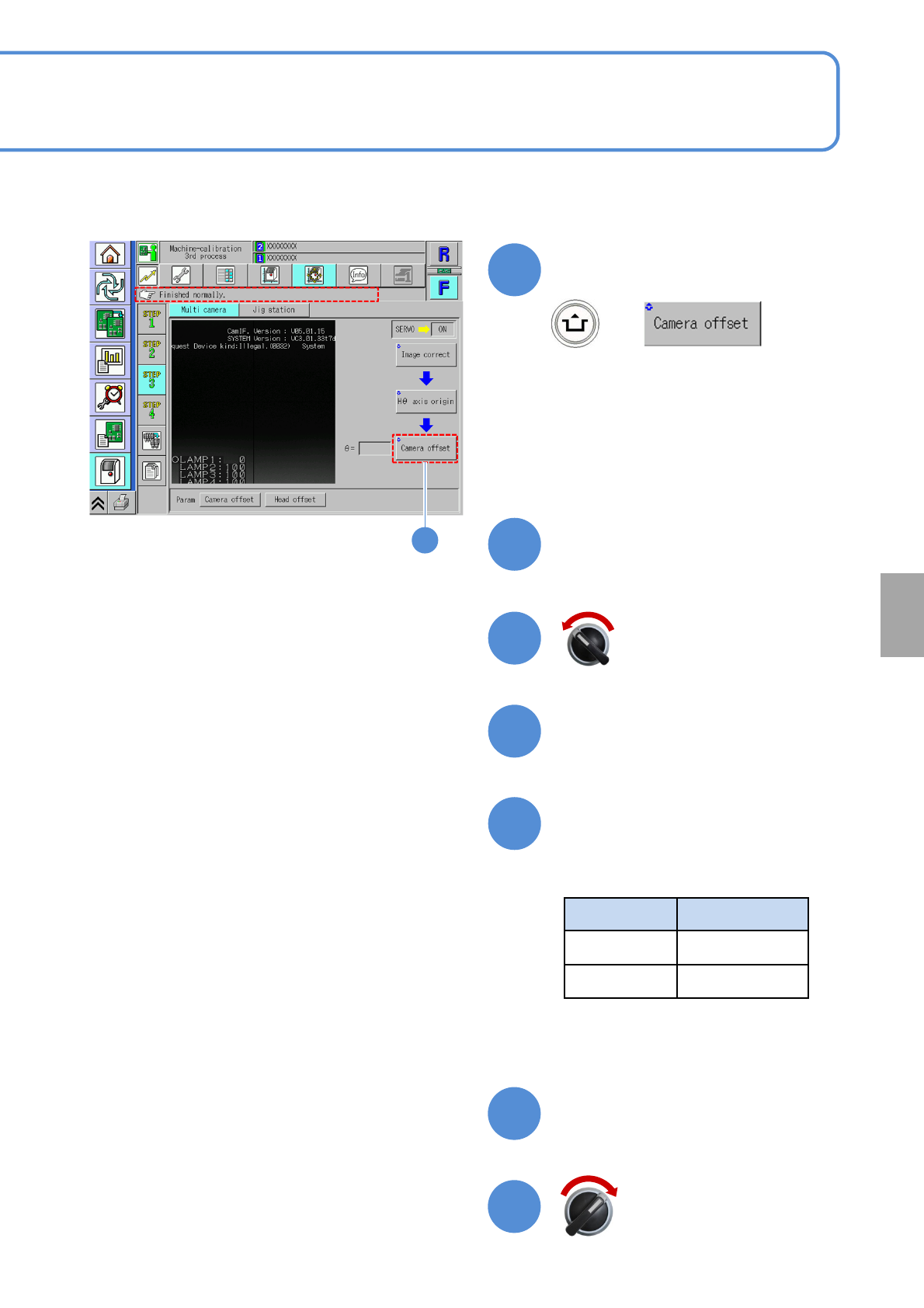

N7201A653E - 第365页
NPM- TT2 EJ M1EE-MB-13M-0 2 13-9 -6 Calibration Confirm that it has been successfully completed + (The camera offset is calibrated) prepare to confirm the multi- recognition camera jig Open the safety cover Confirm that …
NPM-TT2 EJM1EE-MB-13M-02
13-9-5
Maintenance
13-9
Multi-recognition
camera 3
Close the safety cover
Replace the multi-recognition
camera jig
●Nozzles that you confirm
Head
type
Nozzle position
Before
replace
After
replace
8 No. 6 No. 3
3 No. 1 No. 2
Servo switch ON
Open the safety cover
Servo switch OFF
+
Confirm the message
■To cancel
(The screen remains as it is in )
(The multi-recognition camera is
calibrated)
27
28
26
24
25
29
29
1

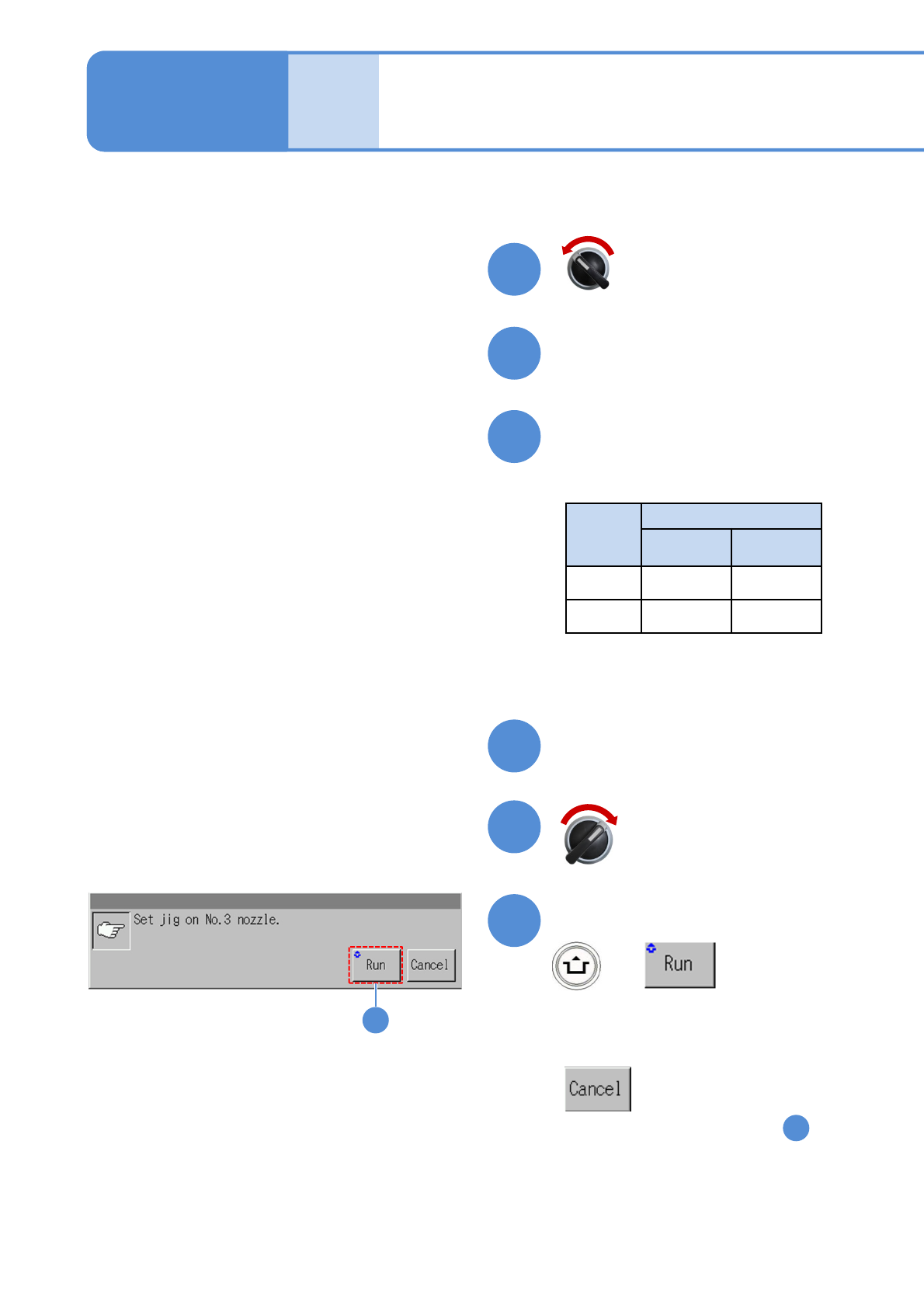

NPM-TT2 EJM1EE-MB-13M-02
13-9-6
Calibration
Confirm that it has been
successfully completed
+
(The camera offset is calibrated)
prepare to confirm the multi-
recognition camera jig
Open the safety cover
Confirm that the multi-
recognition camera jig is
installed
●Nozzles used
Head type Nozzle position
8 No. 3
3 No. 2
Servo switch OFF
30
31
32
33
34
30
Close the safety cover
Servo switch ON
35
36

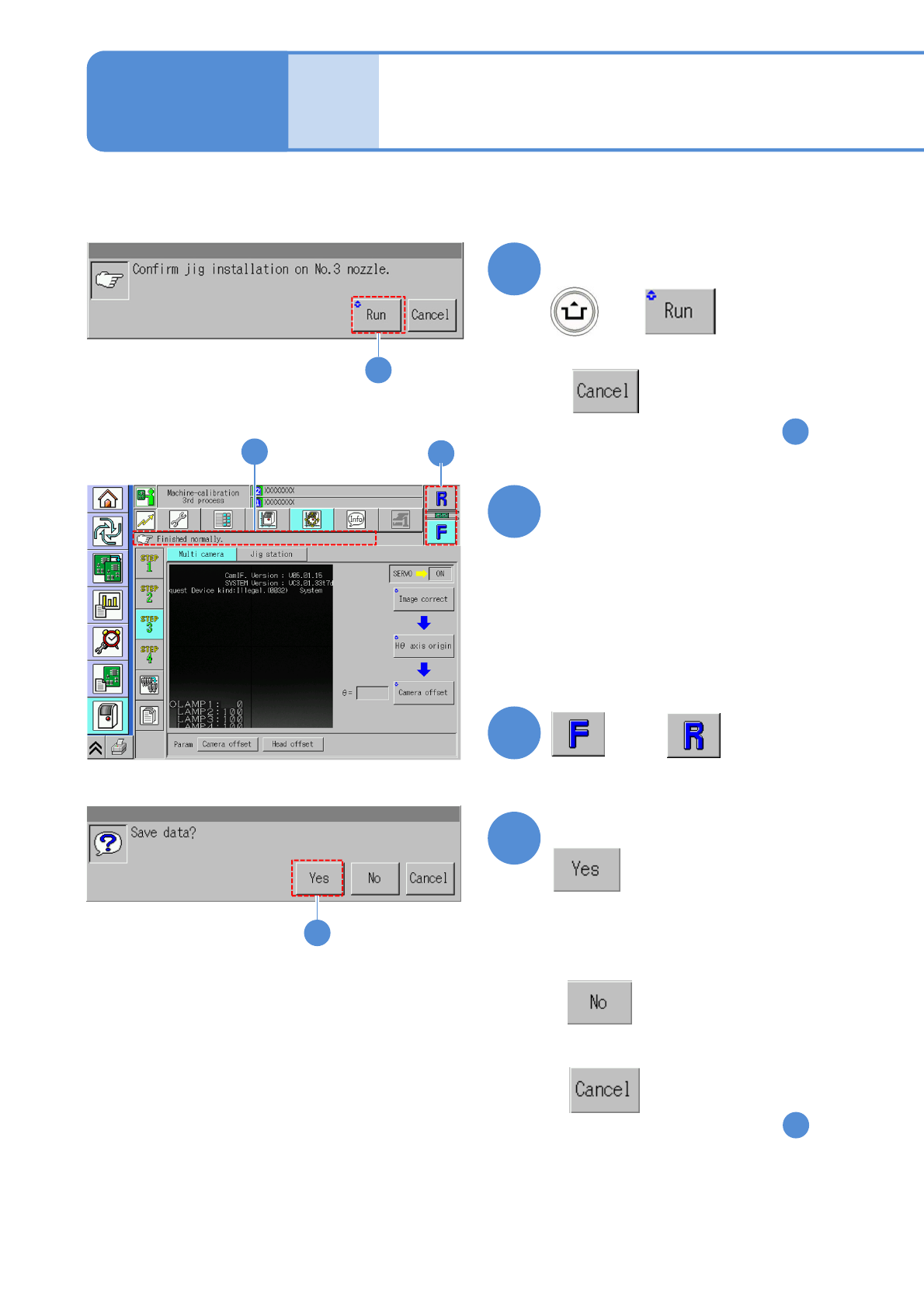

NPM-TT2 EJM1EE-MB-13M-02
13-9-7
Maintenance
13-9
+
Confirm the message
■To cancel
(The screen remains as it is in )
Confirm that it has been
successfully completed
37
38
39
1
38
37
Confirm the message
(The calibration data is saved)
●When you do not save the data
●To cancel
(The screen remains as it is in )
40
38
40
(The head moves to the work position)
Multi-recognition
camera 4
or
39
