NPM- TT2 EJM1EE-MB-13 M-02 13-10 -3 Jig sta tion 2 Maintenance 13-10 ● Check that the LED lamp is illuminated. T urn ON the pow er of the jig station Place the jig station on the transfer convey or ● Align the end face o…
NPM-TT2 EJM1EE-MB-13M-02
Explains the jig station operating method, taking for an example, the 8-nozzle head; however, the same
procedure can also be applied to the 3-nozzle heads.
●Make sure that there are no nozzles present in the nozzle changer. Remove all the PCB support pins.
●If you cannot set a jig station, manually load the PCB from the pre-process machine and set the jig
using the workbench (please prepare yourself).
●Do not turn OFF the power of the machine during calibration.

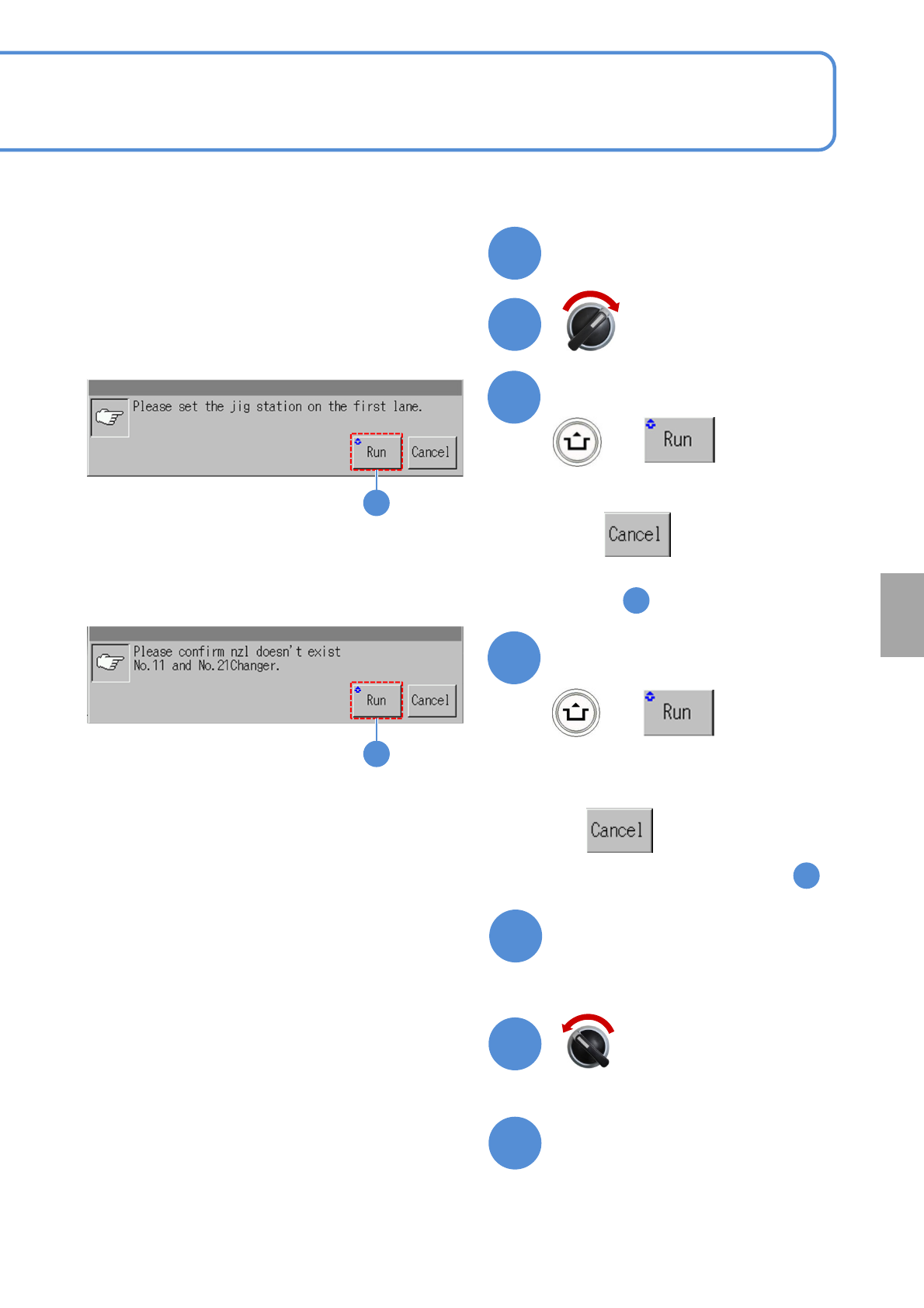

Choose a table
●Choose the table for calibration.
Choose a measurement item
(The selected items are displayed in
light blue color, and, all the rest, in gray)
+
13-10-2
3
1
2 3
2
1
Calibration
Open the safety cover
Prepare to install the jig
station
7
6
5
Servo switch OFF
4
4
(The width is adjusted)
(The head moves to the retraction
position)
Confirm the message
+
NPM-TT2 EJM1EE-MB-13M-02
13-10-3
Jig station 2
Maintenance
13-10

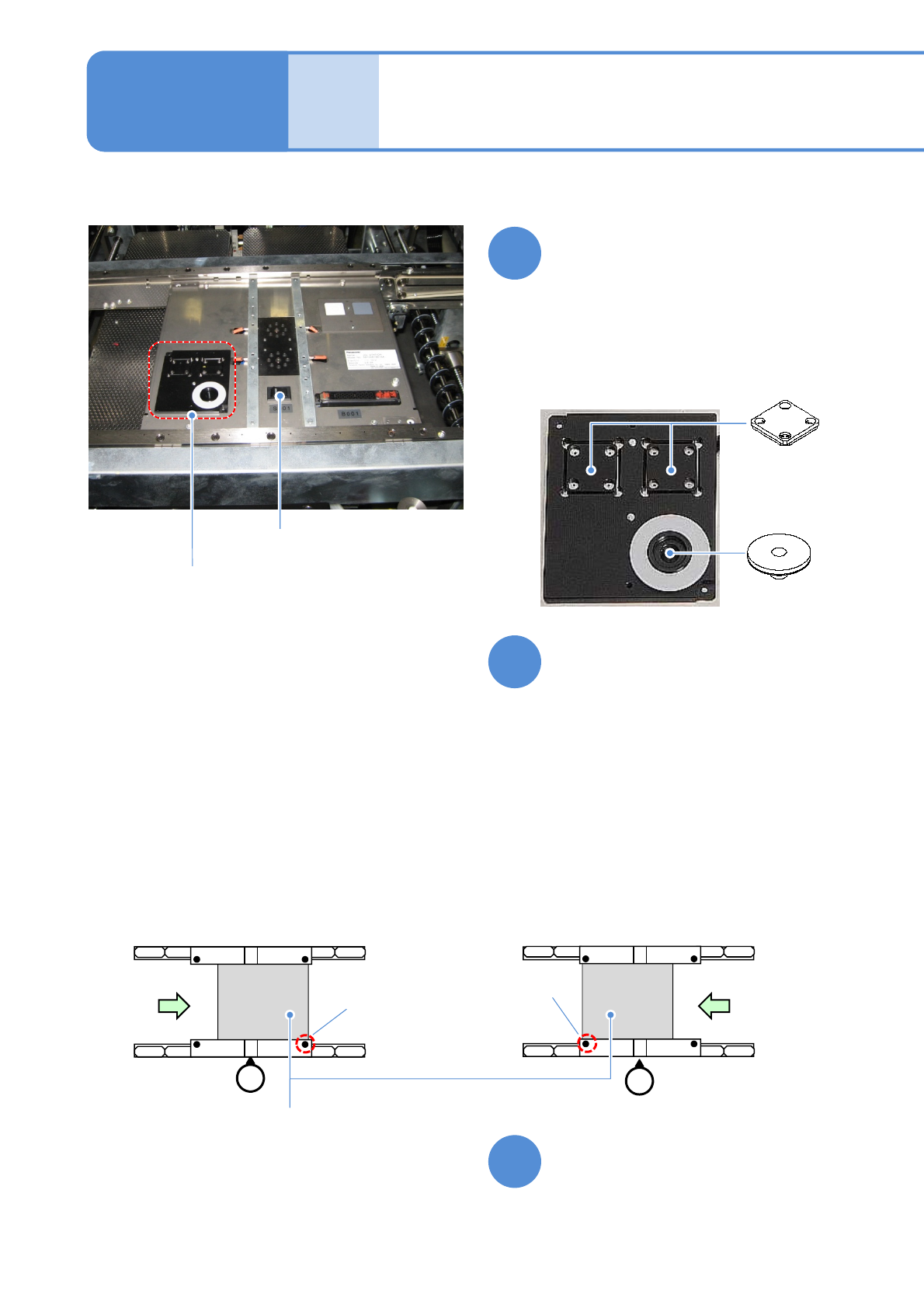

●Check that the LED lamp is
illuminated.
Turn ON the power of the jig
station
Place the jig station on the
transfer conveyor
●Align the end face of the jig station
with the reference mark on upper
surface of the front rail.
●Make sure to place it in the right
direction.
●If you cannot set a jig station,
manually load the PCB from the pre-
process machine and set the jig using
the workbench (please prepare
yourself).
●Left-to-right flow
Reference
mark
(φ1 hole)
Reference
mark
(φ1 hole)
●Right-to-left flow
Jig station
9
10
Set jig components and the
light luminosity jig to the jig
station
●Each of the two has no particular
orientation by itself.
Power supply
switch
Jig storage
unit
●Jig station
8
●Jig component, light and luminosity jig
storage unit
Light
luminosity jig
Jig components
NPM-TT2 EJM1EE-MB-13M-02
13-10-4
11
Calibration
Open the safety cover
Prepare to install nozzles
(The head moves to the work position)
16
17
15
Close the safety cover
+
Confirm the message
■To cancel
(The screen remains as it is
in )
12
13
2
13
Servo switch OFF
Servo switch ON
14
14
+
Confirm the message
■To cancel
(The screen remains as it is in )
2
