NPM-TT2 EJM1EE-MB-13M-02
13-10-4
11
Calibration
Open the safety cover
Prepare to install nozzles
(The head moves to the work position)
16
17
15
Close the safety cover
+

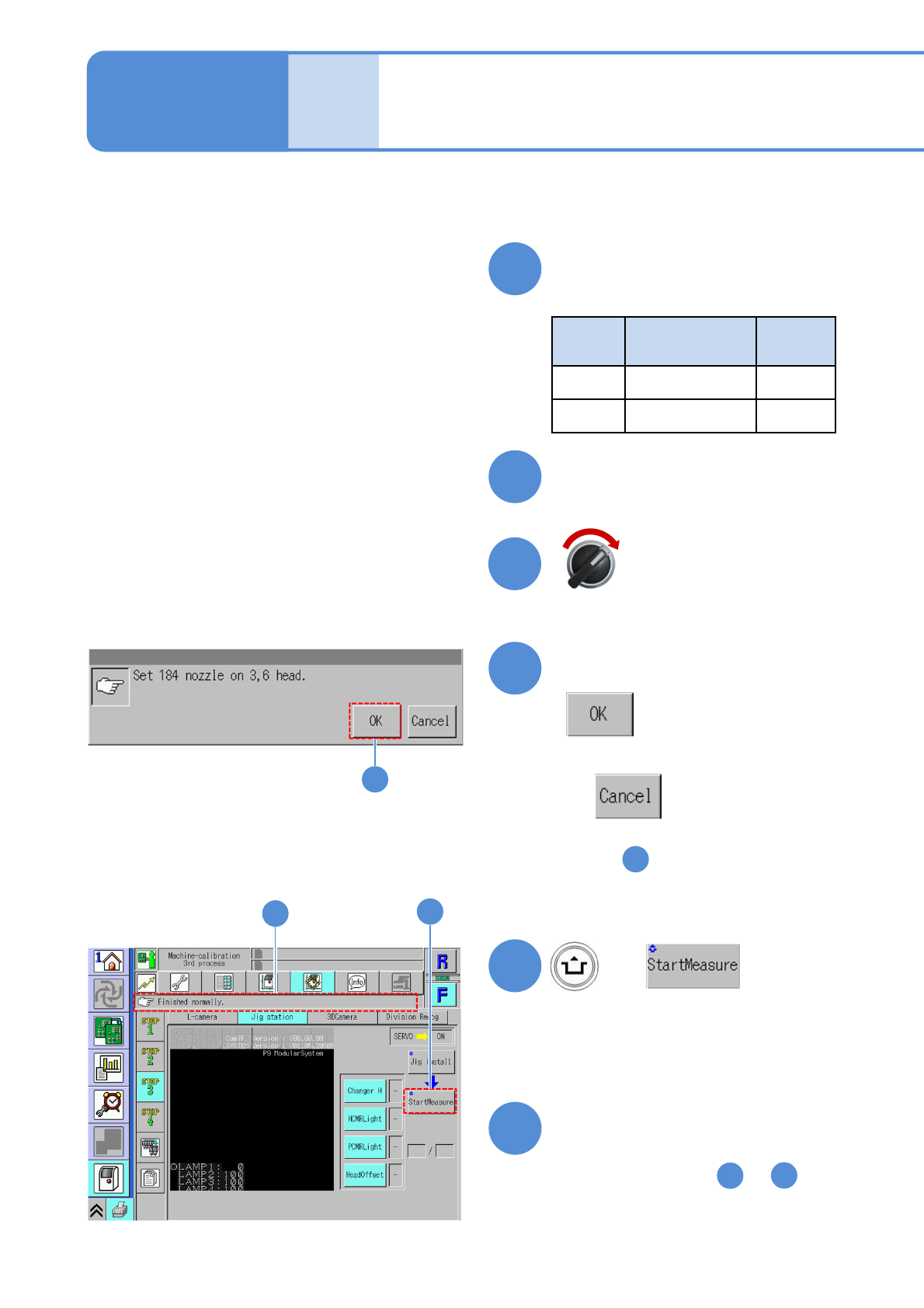

Confirm the message
■To cancel
(The screen remains as it is
in )
12
13
2
13
Servo switch OFF
Servo switch ON
14
14
+
Confirm the message
■To cancel
(The screen remains as it is in )
2
NPM-TT2 EJM1EE-MB-13M-02
Jig station 3
13-10-5
Maintenance
13-10
20
Confirm the message
■To cancel
(The screen remains as it is
in )
21
2
21
Confirm that it has been
successfully completed
●Repeat steps from to
from the other table.
23
1
23
(The selected measurement item is
calibrated)
22
23
22
+
Servo switch ON
Close the safety cover
Install nozzles
●Nozzle used
Head
type
Nozzle position
Nozzle
type
8 No. 3 and 6 184
3 No. 1 and 2 1003
18
19
NPM-TT2 EJM1EE-MB-13M-02
13-10-6
Calibration
24

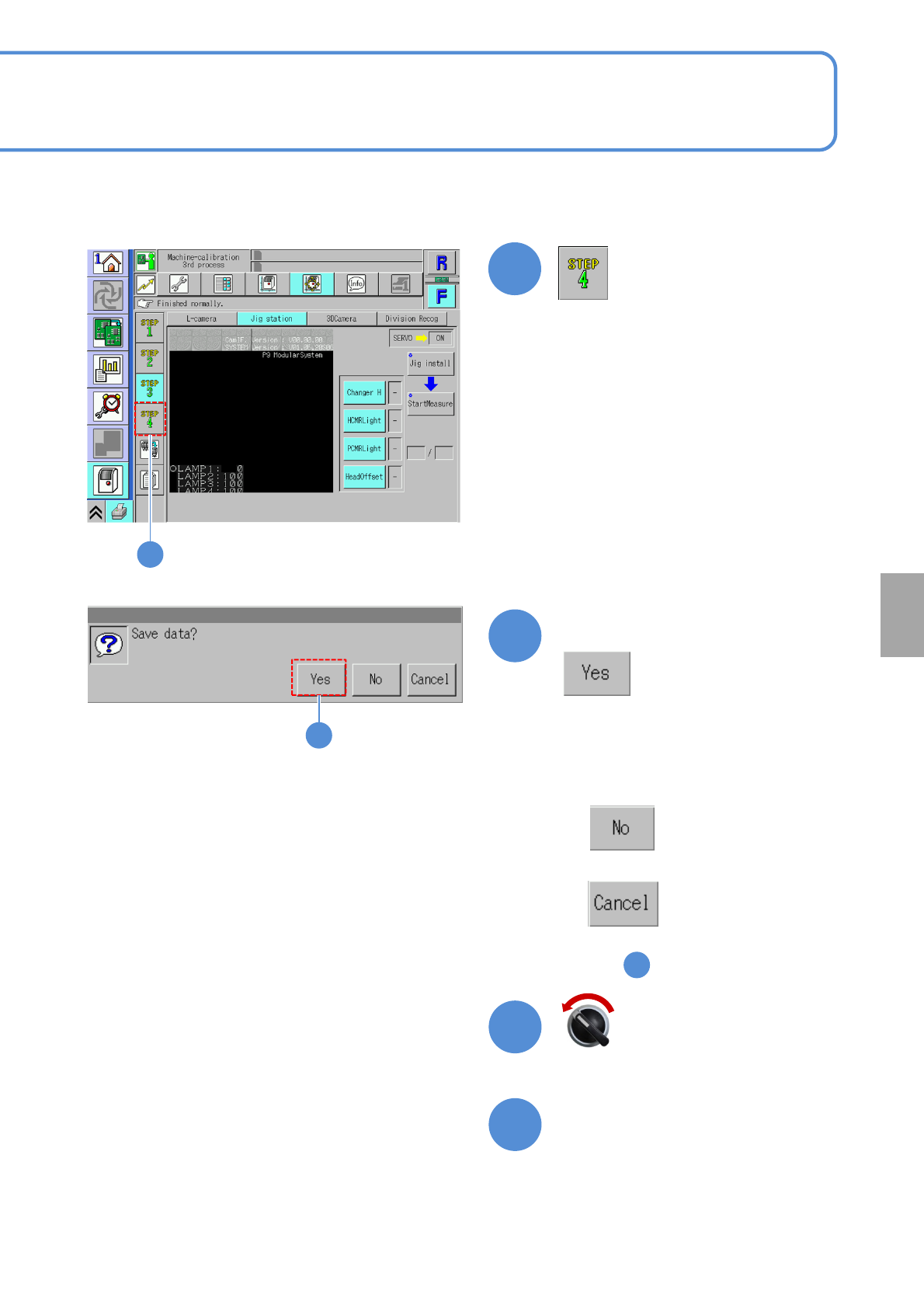

Confirm the message
(The calibration data is saved)
(The head moves to the retraction
position)
■When you do not save the data
■To cancel
(The screen remains as it is
in )
24
25
23
25
Open the safety cover
27
26
Servo switch OFF
