NPM- TT2 EJM1EE-MB-13 M-02 13-15-2 -7 Accuracy verifica- tion Detailed pr ocess 4 Maintenance 13-15-2 12 (The data is reflected and machine parameters are upda ted) ● Regardless of the table selected for data display ・ A…
NPM-TT2 EJM1EE-MB-13M-02
13-15-2-6
Calibration
8
9
Choose a nozzle to display
(Offset per nozzle is displayed)
Choose a table to display
10
6
Choose a table
(Displays the accuracy of the front and
the rear individually or the total
accuracy)
●Cpk prescribed values per component
(→ P.6-1-1 ‘Basic performance’ in
[Operating procedure] )
A
Cpk
●If the measurement result Cpk is lower
than the prescribed value, Angle Offset
is reflected.
7
■To reflect placement offset
Offset per nozzle is displayed
B
X[mm], Y[mm], θ[°]
■To reflect the verification data
11
■
For
■
For other than
8 910
11
B
6
7
A
12
13
To
To
Choose a placed part
●Displayed based on the part type.
●Confirm the message
To use accuracy verification MCDATA:
(→ P.13-15-1
-1 ‘■Reflection of
verification data’)
NPM-TT2 EJM1EE-MB-13M-02
13-15-2-7
Accuracy
verifica-
tion
Detailed process 4
Maintenance
13-15-2
12
(The data is reflected and machine
parameters are updated)
●Regardless of the table
selected for data display
・All heads
・Nozzle offset
are updated.

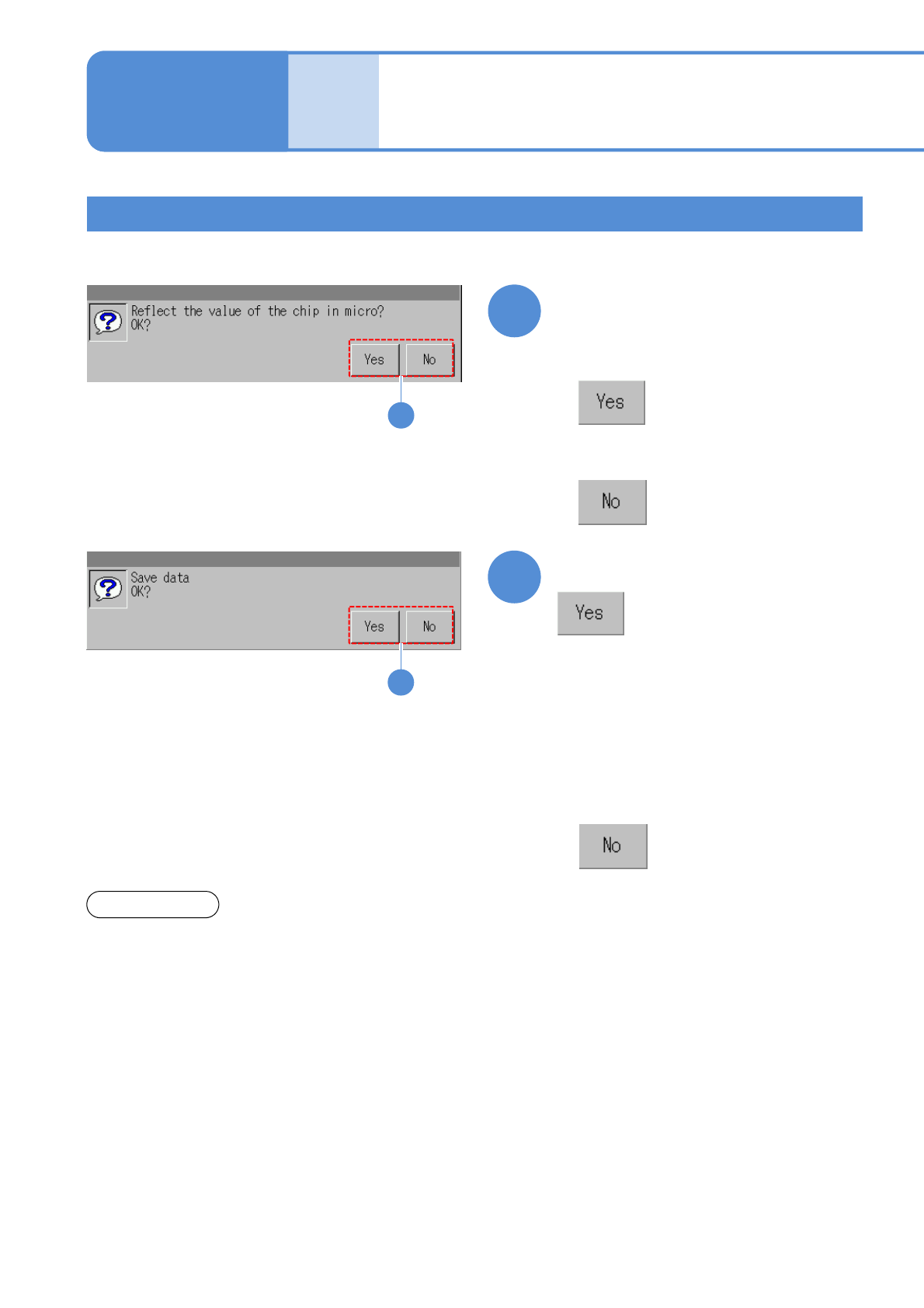

ATTENTION
12
Confirm the message
Confirm the message
13
●When you do not save the data
13
Checking the placement result (reflection of verification data, offset registration)
●It can be remounted so that you can check the placement accuracy.
In doing so, please do [Checking the placement result] . (→P.13-15-2
-8)
●For a part up to the size of the 0402
chip
●For a part larger in size than the
0402 chip
NPM-TT2 EJM1EE-MB-13M-02
13-15-2-8
Checking of placement result
Calibration
Cause Troubleshooting
The target components are
deteriorated.
Check for any flaws or foreign bodies on the surface of JIG_BGA.
The correct jig parts are not used. Check the jig parts.
Actual parts 1005C are used. Check the jig parts.
The head shaft is damaged. Check for unsmooth sliding of the shaft.
The illumination of the multi-
recognition camera is wrong.
Execute the lamp-value illumination calibration.
●If you perform above measures, but the accuracy verification result is not improved or you find any trouble
on the head shaft, please contact us.
Verifies the results registered as offsets in “Checking and reflection of placement.” The procedure is the
same as the one used in “Checking and reflection of placement.”
Though not necessarily required, this procedure will be used as a guideline for measuring the level of
accuracy of the machine.
The following causes are cited as possible causes when no improvements are seen in accuracy verification
results.
●As for MCDATA (production program), use accuracy verification MCDATA.
(→ P.13-15-1
-1 ‘■MCDATA type’)
●Accuracy verification MCDATA is intended for accuracy verification use, so refrain from reflecting in it the
each-position-angle offsets obtained from measurement results.
(→ P.13-15-1
-1 ‘■Reflection of verification data’)
