Before installation
■Primary power supply
14-1
Maintenance
14-1
Condensation
free environment
●Temperature: 10 to 35℃
●Humidity: 25 to 75 %RH
Adequate space
for maintenance
work
Draw a layout
baseline on the
floor
■Air source
●Use clean air provided by an air dryer.
●Air pressure: 0.5 to 0.8 MPa
After air is supplied, adjust the air pressure to
0.500 to 0.505 MPa with the regulator.
●Amount of air supply: 200 L/min(A.N.R.)
●Hose connection inlet size: 3/8 inch
Flat concrete
floor
●Withstand load of the
installation place:
4903 N/m
2
or higher
●Supply from power equipment managed by the plant.
(Public low-voltage power distribution system: Do
not connect directly to the commercial power
supply)
Normal power
supply
3-phase AC 200 ±10 V/ 220
±10 V
380/400/420/480 ±20 V
Frequency
50 / 60 Hz ±5%
Rated capacity 2.5 kVA
Checking installation location
Check primary power supply and air source specifications
Flat place
●PCB transfer height: 900 to
920mm (Both single and line
connection)
●[Outside dimensions and working area] (→[Operating procedure] P.6-1-3), [Altitude] (→[Operating
procedure] P.6-1-1)
NPM-TT2 EJM1EE-MB-14M-02
Transportation
14-2
Maintenance
14-2

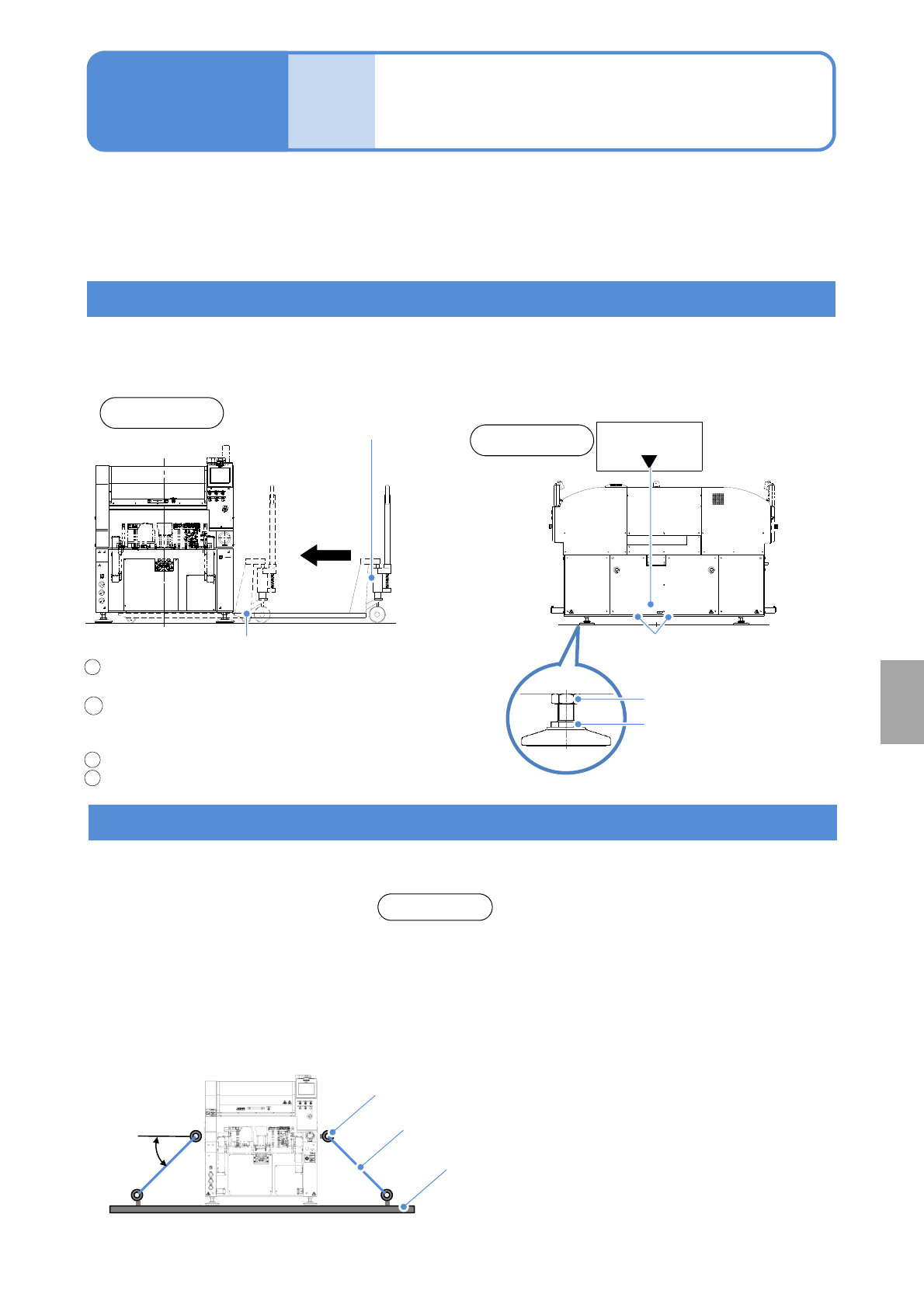

Using a forklift or a pallet truck
Handle the machine with extreme care when transporting.
The feeder cart and the tray feeder, if connected to the main body, should be removed before transportation.
In addition, for the machine with the extension conveyor installed, the cable attached to the conveyor must be
removed from the machine to prevent it from getting stuck by the fork.
Keep turning the adjustment bolt’s adjustment bolt until
the bottom of the machine is raised higher than the forks.
Insert the forks under the machine from the right side
(facing the front of the machine).
●Align the center of two forks to ▼ shown on the sticker.
Raise the forks and lift the machine.
Convey the machine to the destination and set it down.
Tool used: 65 mm spanner (2 pcs)
Pallet truck or forklift
Lock nut
Adjustment bolt
Fork insertion
position
Forks
■Fork insertion position
●Insert the forks from the side
Using a crane
Please consult a specialized delivery company.
Eye bolts
(four)
●Use eyebolts for fixing the machine to a cart or others. An angle
θ that the fixing rope makes with a horizontal line should be 45
degrees or less.
●Do not use eyebolts to lift the machine.
●Store eyebolts after transport.
ATTENTION
θ
Fixing rope
Cart
MASS:2650 kg
CENTER
1
2
3
4
Installation
Adjustment bolt
Front side
Right side
NPM-TT2 EJM1EE-MB-14M-02
14-3-1
Tool used: Convex, Allen wrench (3 mm, 4 mm), metal ruler, Level gauge, 65 mm spanners (2 pcs)
Installation 1
Maintenance
14-3
1
Install

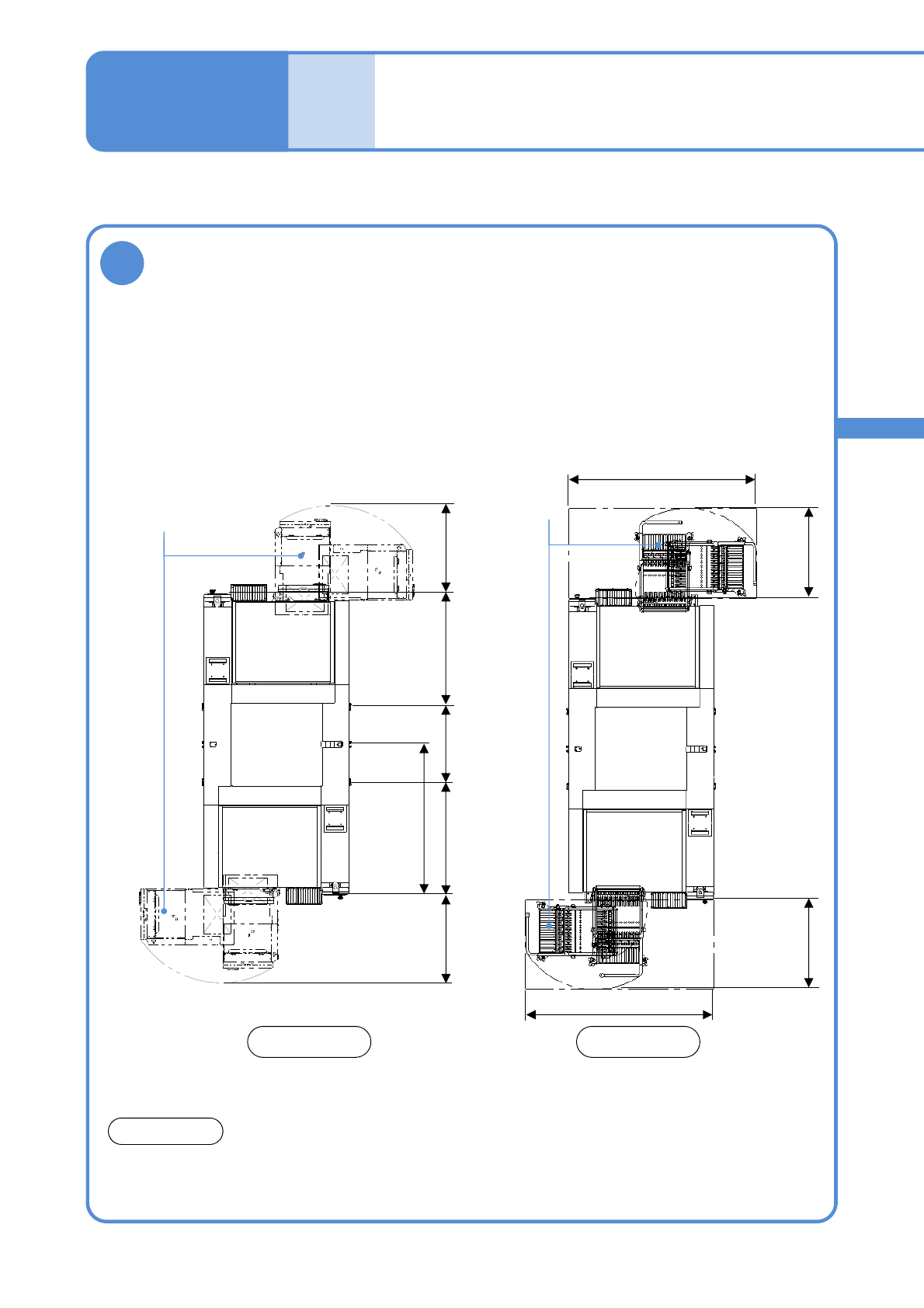

Temporarily locate the machine along the baseline drawn on the floor and adjust the installation
position.
●Adjust the height and facing of the machine to guarantee a smooth PCB transfer between the
machine and adjacent equipment.
●Keep a 1 to 5 mm space between the machine and adjacent equipment.
●If running a vent under the machine, keep a 40 mm or more space between the machine and the
vent.
(The below figure shows the minimum space and is measured in millimeters (mm))
NOTICE
Front side
781
1 639
781
1 639
763
971
686
1 314
971
763
Feeder cart
(Option)
Single tray
feeder
(Option)
Front side
●Regarding installation, follow the instructions of a specialist.
●Regarding relocation, contact us, please.
