NPM- TT2 EJM1EE-MB-14 M-02 14-3 -3 Maintenance 14-3 Installa tion 2 3 Detach fixing brackets (red) for supply unit ■ Fixing brackets for feeder cart (2 locations) ● Store the detached fixing brackets. ● Bracket: 6 locati…

100%1 / 502
NPM-TT2 EJM1EE-MB-14M-02
14-3-2
To
3
AB
Single tray feeder (Option) 763 1 831
Feeder cart (Option) 781 1 639

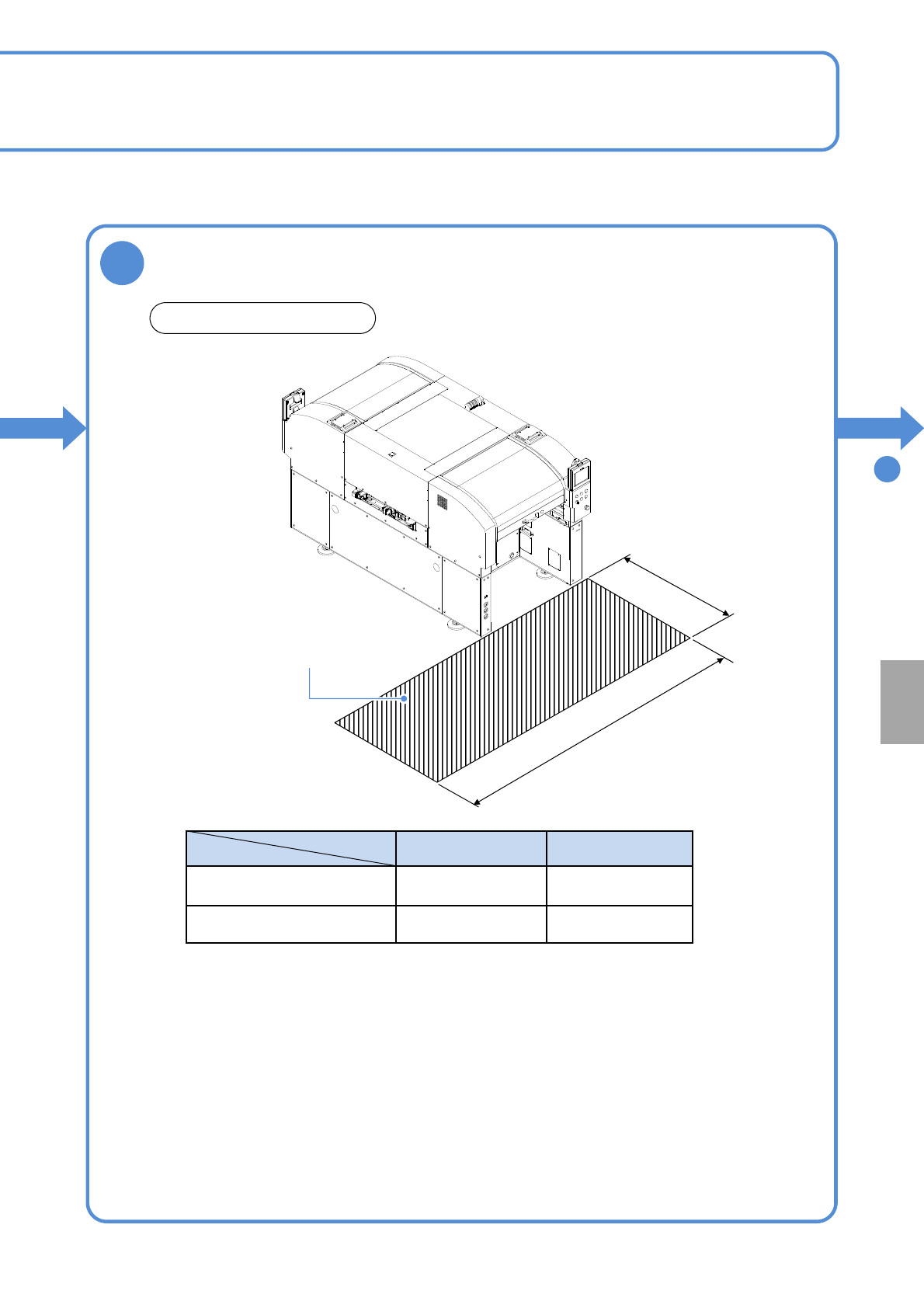

Check the working area
Front and rear sides
A
B
Working area
(Unit: mm)
Installation
2
NPM-TT2 EJM1EE-MB-14M-02
14-3-3
Maintenance
14-3
Installation 2
3

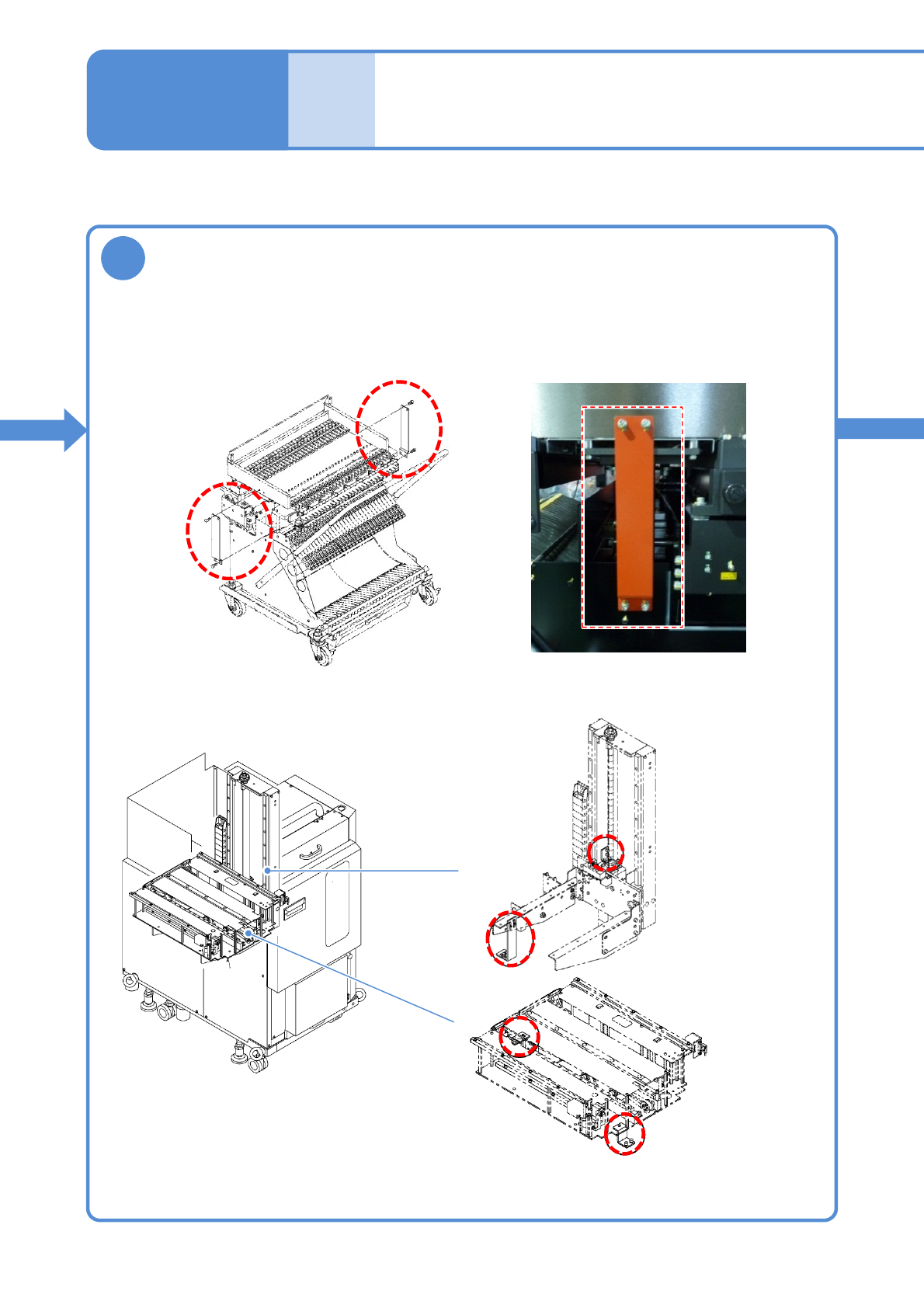

Detach fixing brackets (red) for supply unit
■Fixing brackets for feeder cart (2 locations)
●Store the detached fixing brackets.
●Bracket: 6 locations
■ Fixing brackets for single tray feeder (option) (4 locations)
NPM-TT2 EJM1EE-MB-14M-02
14-3-4
Installation
●Store the detached brackets.
●Bracket: 6 locations

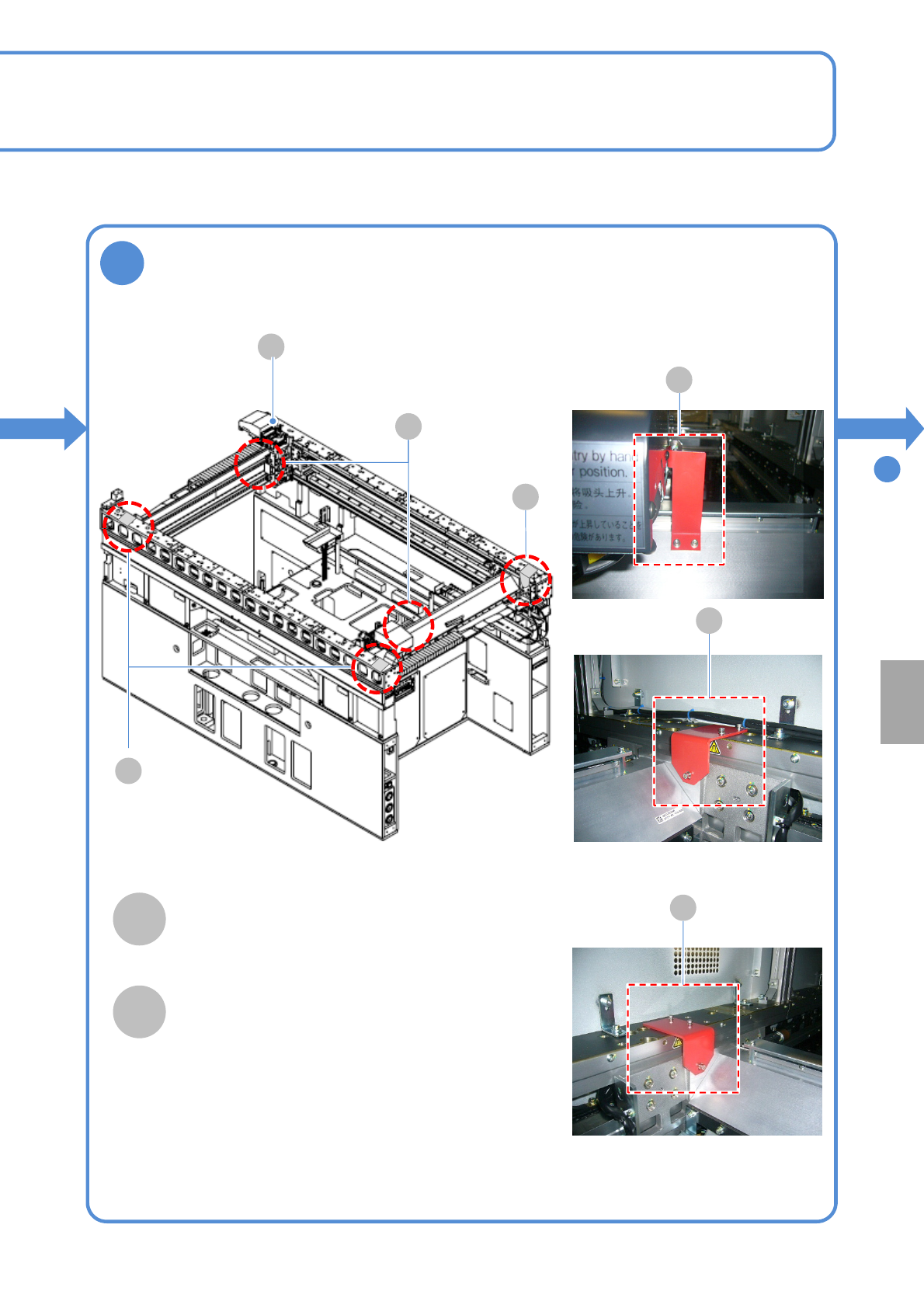

Detach fixing brackets (red color) for the main unit
X-axis fixing bracket (2 pcs)
Y-axis fixing bracket (4 pcs)
A
B
B
B
A
B
B
B
4
5
To
A
