NPM- TT2 EJM1EE-MB-14 M-02 14-8 -2 Installation 5 Remove the joint screw A and install it to the temporary installation location Temporary installation location 4 Remove the cables and pipes and fix them using a cable ti…
NPM-TT2 EJM1EE-MB-14M-02
14-8-1
How to handle the tray
feeder
(option) 1
Maintenance
14-8
How to detach
Describes how to handle the single feeder.
Time required : 5 minutes
1
Turn OFF the
power and lock
the machine
OFF
2 3
6
Release the safety switch of the tray feeder
Keep the released handle in
contact with the joint screw B
Slide the handle of the safety
switch to the left
1
2
Safety switch
Handle
7
Remove the joint screw B and install it to the
temporary installation location
8
Detach the tray
feeder
Push it until it goes inward
from the multi-recognition
camera
Push the X-axis
inward
Joint screw B
Joint screw B
Temporary installation
location
NPM-TT2 EJM1EE-MB-14M-02
14-8-2
Installation
5
Remove the joint screw A and install it to the
temporary installation location
Temporary installation location
4

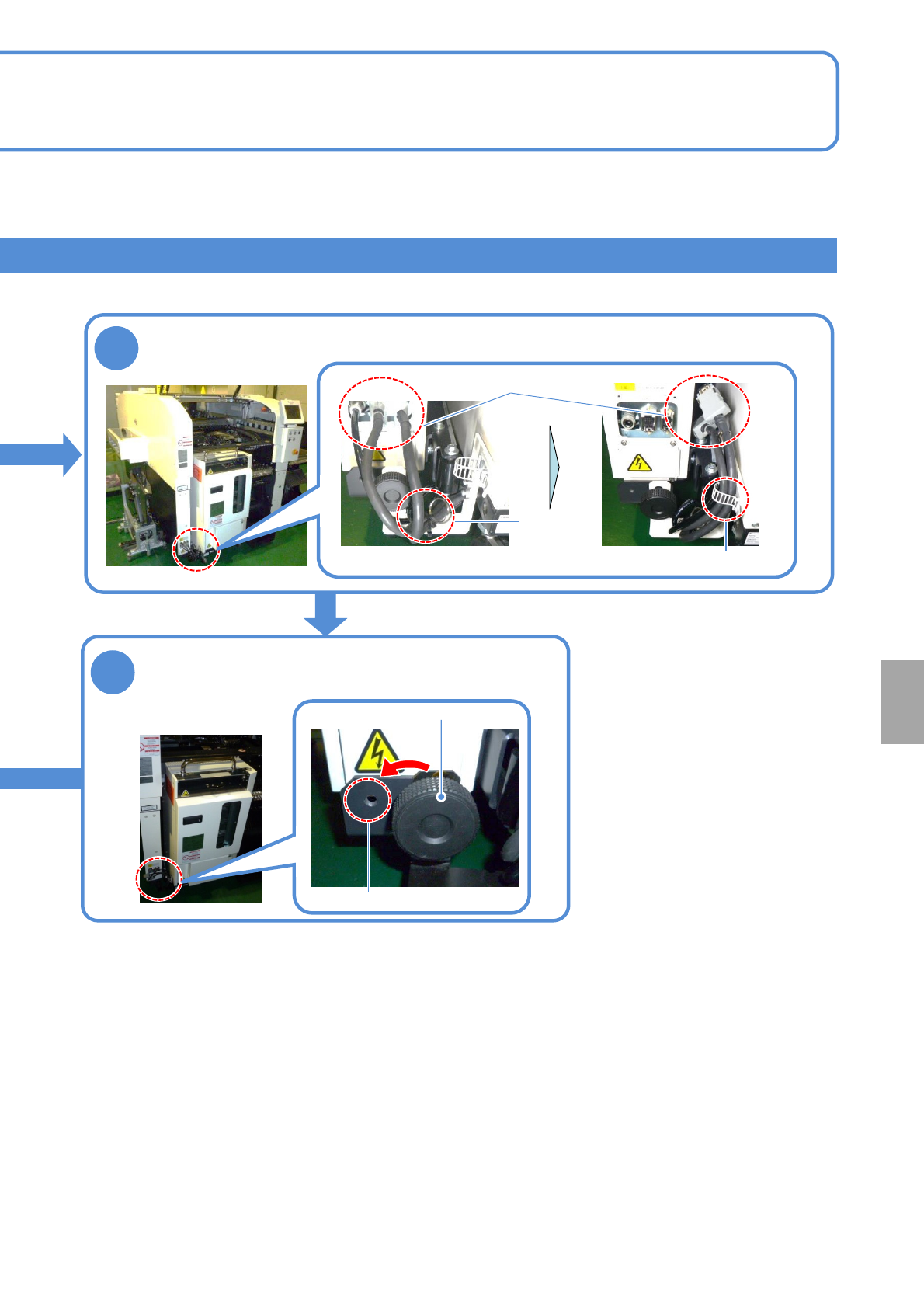

Remove the cables and pipes and fix them using a cable tie
Cable tie
Clamping
band
Joint screw A
Cable, pipe
●Do not remove the clamping band
NPM-TT2 EJM1EE-MB-14M-02
14-8-3
How to handle the tray
feeder
(option) 2
Maintenance
14-8
How to attach 1
2
4
1
Turn OFF the
power and lock
the machine
OFF
3
●Be careful not to bump it
against the main unit.
Attach the tray
feeder
Time required : 5 minutes
7
Turn ON the safety switch of the tray feeder
Slide the handle to the right and
insert the metal fitting to the
safety switch
Turn the handle 45 degree
clockwise in such a way that it
does not come into contact with
the joint screw B
1
2
Safety switch
Hand
le
Joint screw B
Joint screw B
Fix position
6
Remove the joint screw B and install it to the fix position
The tray feeder is fixed to the machine
