NPM- TT2 EJM1EE-MB-14 M-02 14-9 -2 Installation Installation location This explains the installation location of the units used for s witching. For details, see the switch procedure described later. (d) Safety cover (Fee…
NPM-TT2 EJM1EE-MB-14M-02
14-9-1
Maintenance
14-9

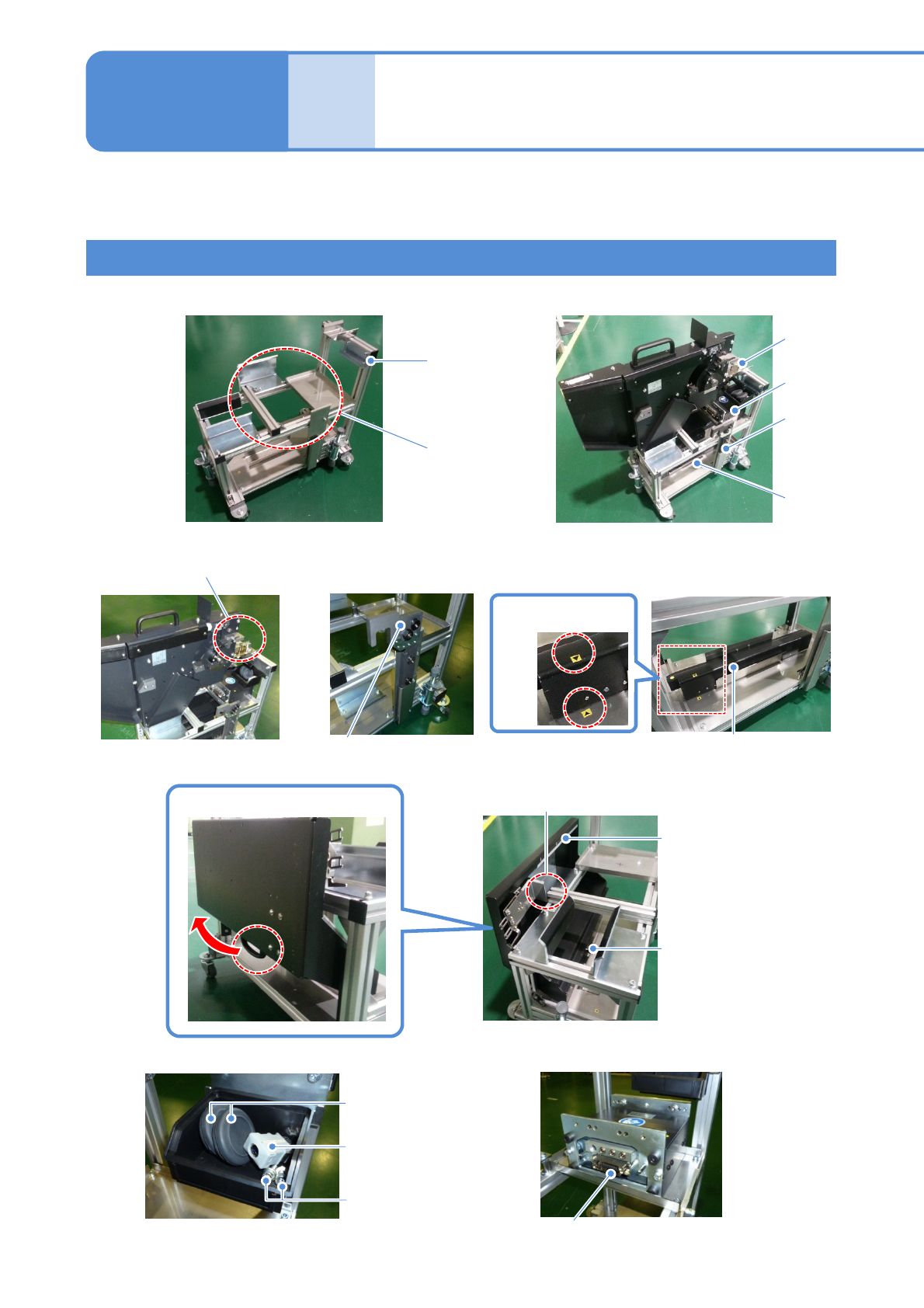

How to switch the 17-slot
feeder cart and the single
tray feeder 1
Unit name and storage location
(e) Extension drawer
(Feeder cart)
●Grommet (2 pieces)
(Feeder cart)
● Short connector
(Tray feeder)
(b) Drive guide (Feeder cart)
(c) Cart guide (Feeder cart)
(d) Safety cover
(Feeder cart)
Switch cart
(a) Cart drive unit (Feeder cart)
Be careful not to pinch the
wire and pipe
Be careful that the metal fitting does not come
into contact with the frame
The state that switch units are
stored in the switch cart
●Screw: M6 (2 pieces)
(Tray feeder)
This explains unit names used for switching and their storage location.
(f) Others
(a)
(b)
(c)
(d)
(e)
(f)
Hook it
Attach to the magnet
Align the position of
seals
Lift up the handle to remove
NPM-TT2 EJM1EE-MB-14M-02
14-9-2

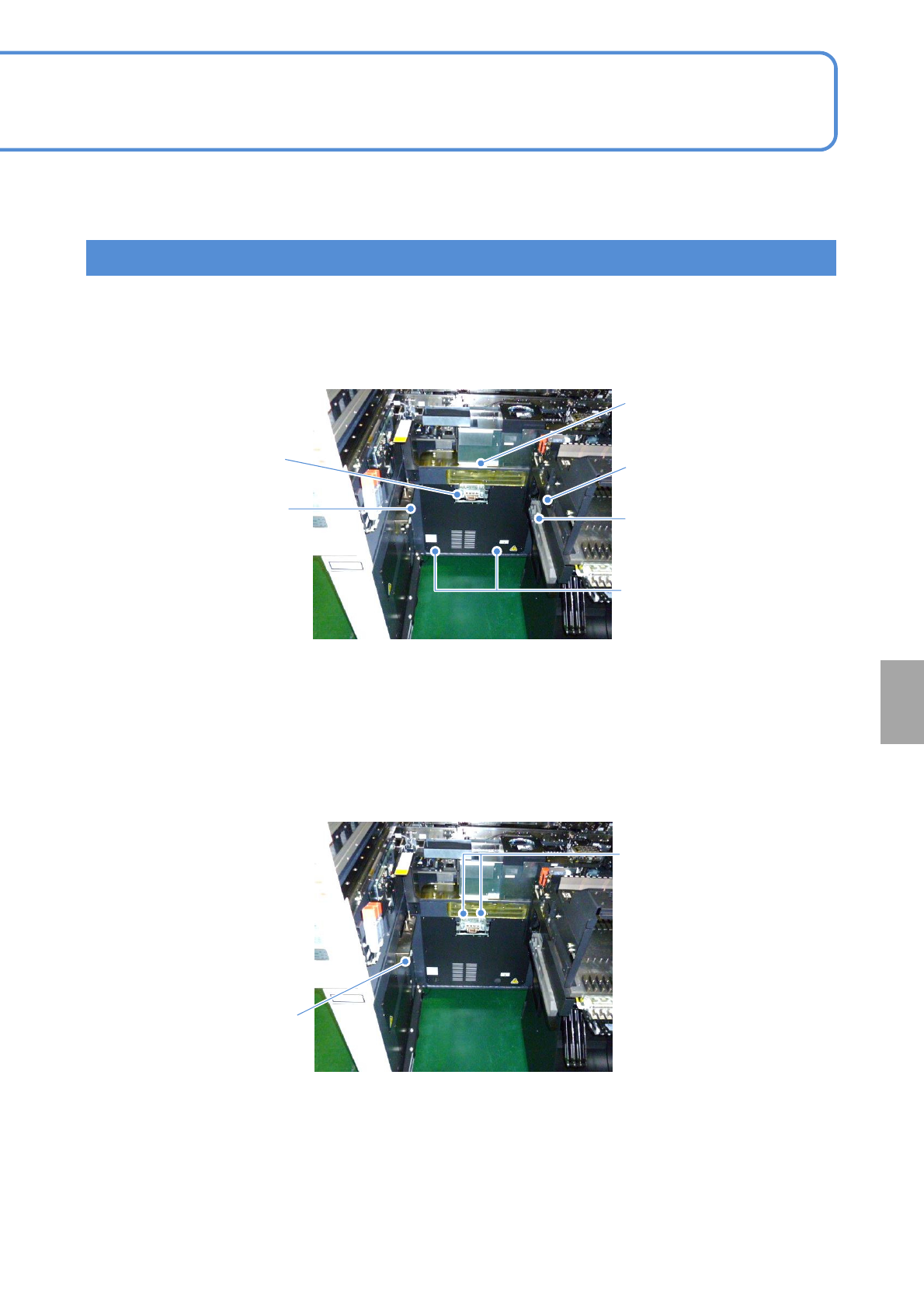

Installation
Installation location
This explains the installation location of the units used for switching.
For details, see the switch procedure described later.
(d) Safety cover
(Feeder cart)
(e) Extension drawer
(Feeder cart)
(a) Cart drive unit
(Feeder cart)
(f) Grommet
(Feeder cart)
(b) Drive guide
(Feeder cart)
■Installation location of the units used for feeder cart switch
■Installation location of the units used for tray feeder switch
(f) M6 screw
(Tray feeder)
(Short connector
(Tray feeder)
(c) Cart guide
(Feeder cart)
NPM-TT2 EJM1EE-MB-14M-02
14-9-3
Maintenance
14-9
How to switch the 17-slot
feeder cart and the single
tray feeder 2

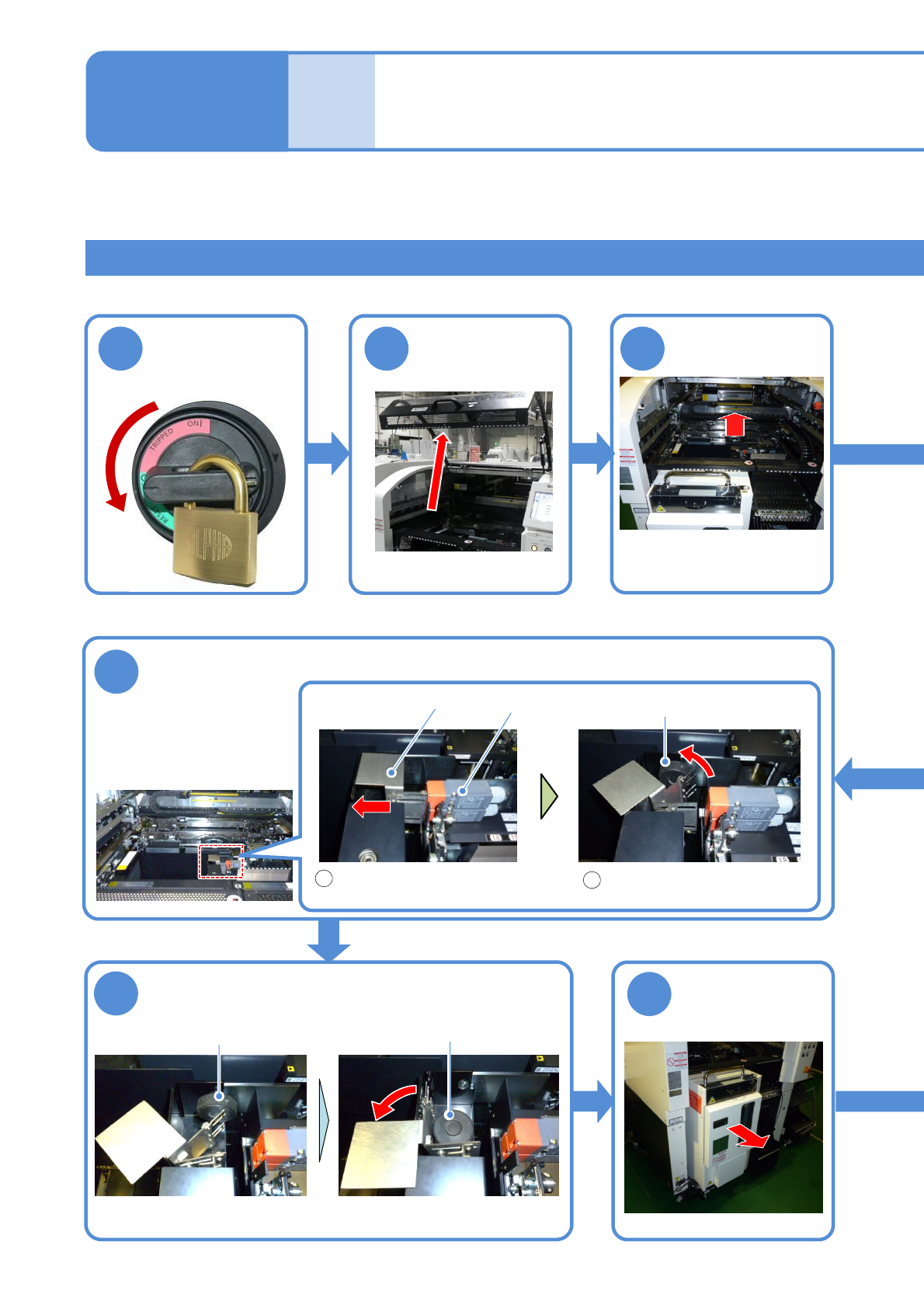

①Switching the single tray feeder to the 17-slot feeder cart 1
This explains how to switch between the 17-slot feeder cart and the single tray feeder.
Time required: 30 minutes
Tool used: Spanner 30 mm (2), Allen wrench (3 mm, 4 mm, 5 mm, 8 mm)
1
Turn OFF the
power and lock
the machine
OFF
2 3
6
Release the safety switch of the tray feeder
Keep the released handle in
contact with the joint screw B
Slide the handle of the safety
switch to the left
1
2
Safety switch
Handle
7
Remove the joint screw B and install it to the
temporary installation location
8
Detach the tray
feeder
Push it until it goes inward
from the multi-recognition
camera
Push the X-axis
inward
Joint screw B
Joint screw B
Temporary installation
location
