NPM-TT2 EJM1EE-MB-14M-02
14-9-11
Maintenance
14-9

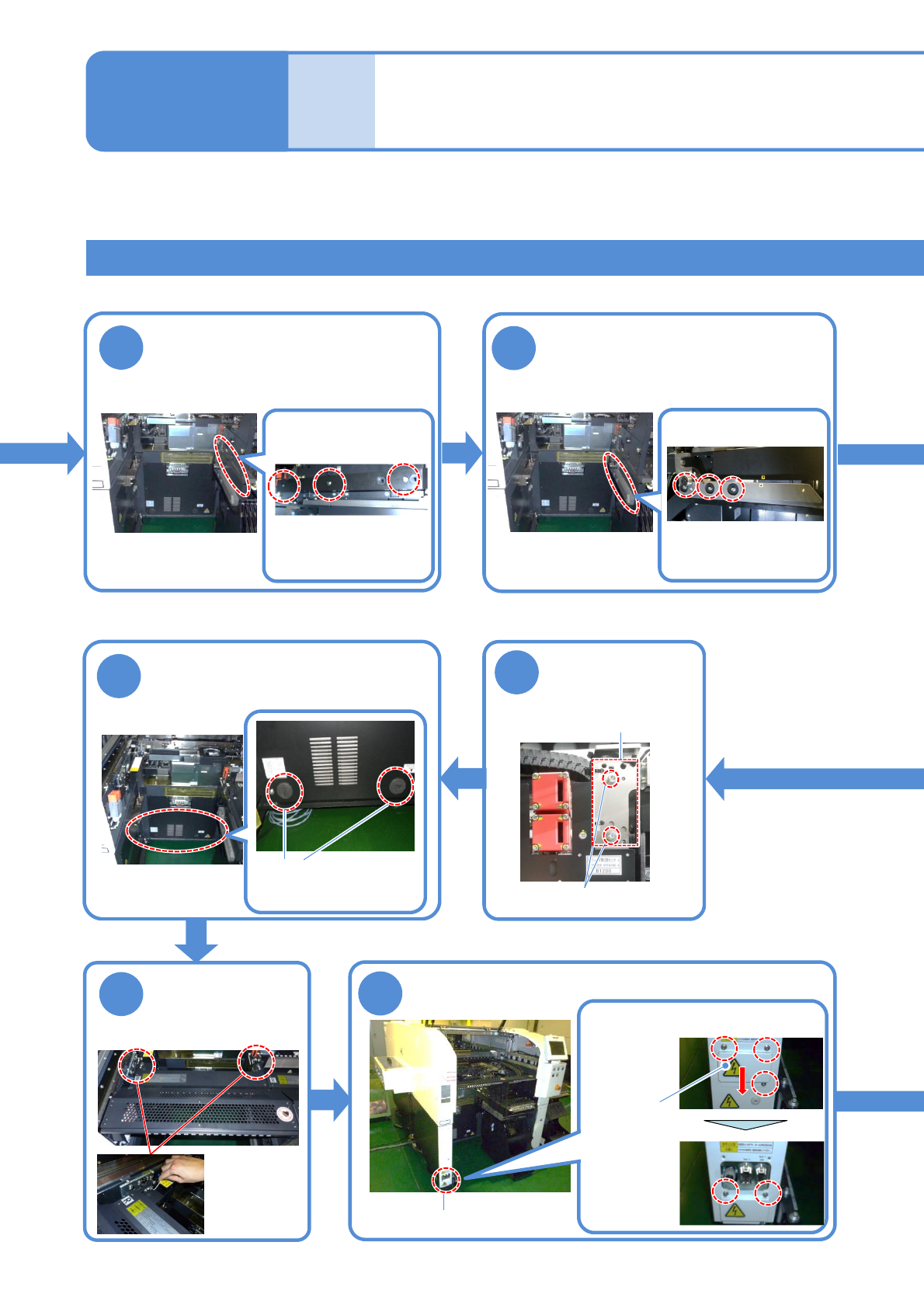

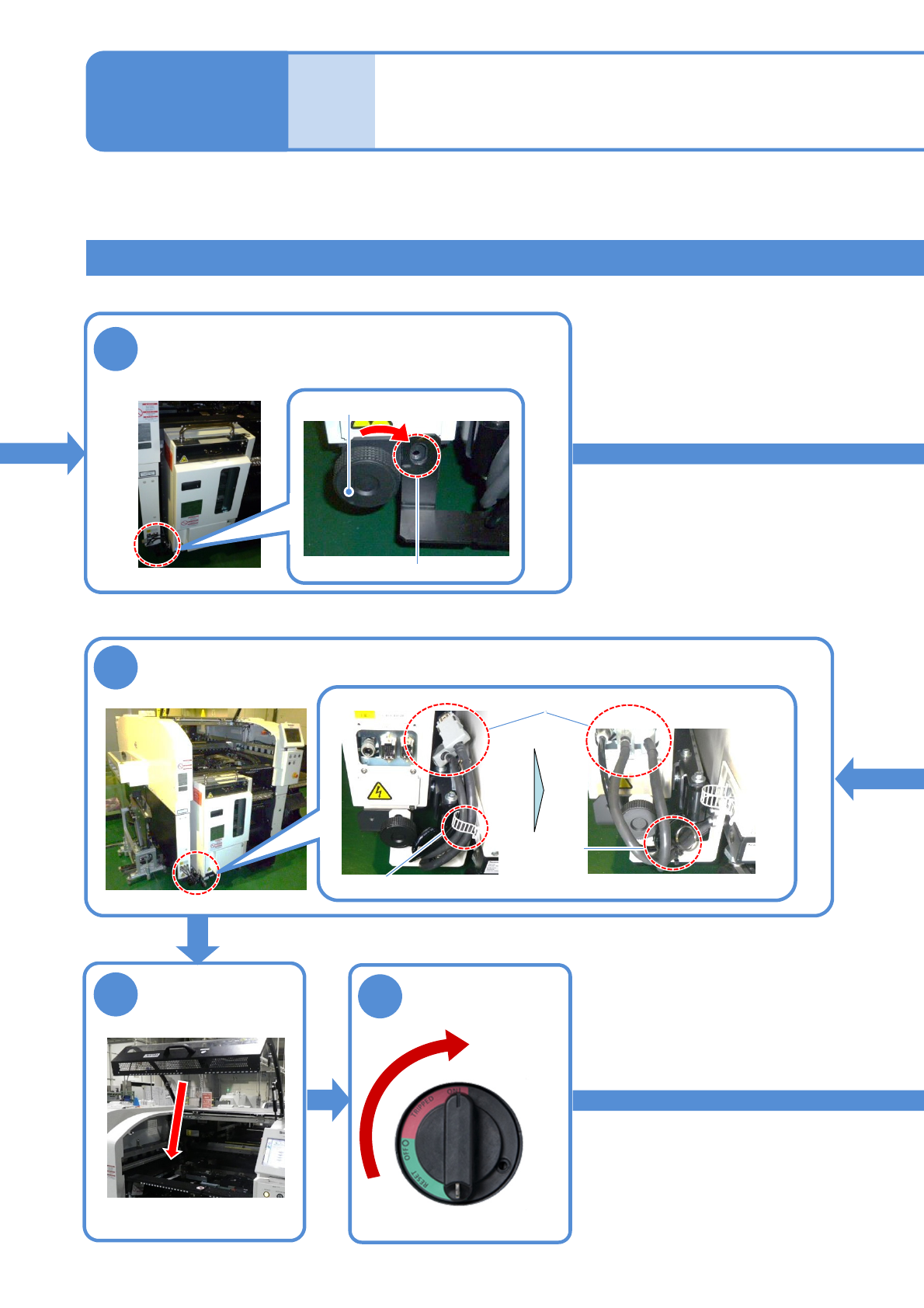

How to switch the 17-slot
feeder cart and the single
tray feeder 6
②Switching the 17-slot feeder cart to the single tray feeder 2
11
12
Detach the drive guide
Detach the cart guide
18
●Screw: M4
2 locations
Attach the feeder
table cover
19
Connector unit
Store the removed drive guide to the switch cart
(→P.14-9-1)
●Screw: M5
3 locations
Store the removed grommet to
the switch cart
(→P.14-9-1)
16
Loosen the
screws of the
sensor bracket
Loosen the screws and slide the
cover lower
●Screw: M4
Loosen
3 screws
Fix the cover
●Screw: M4
Loosen
2 screws
Cover
Remove the cover of the connector unit
Store the removed cart guide to the switch cart
(→P.14-9-1)
●Screw: M5
3 locations
Detach the grommet
Tray feeder joint section
2 locations
17
●Screw: M4 2 locations
Sensor bracket
NPM-TT2 EJM1EE-MB-14M-02
14-9-12

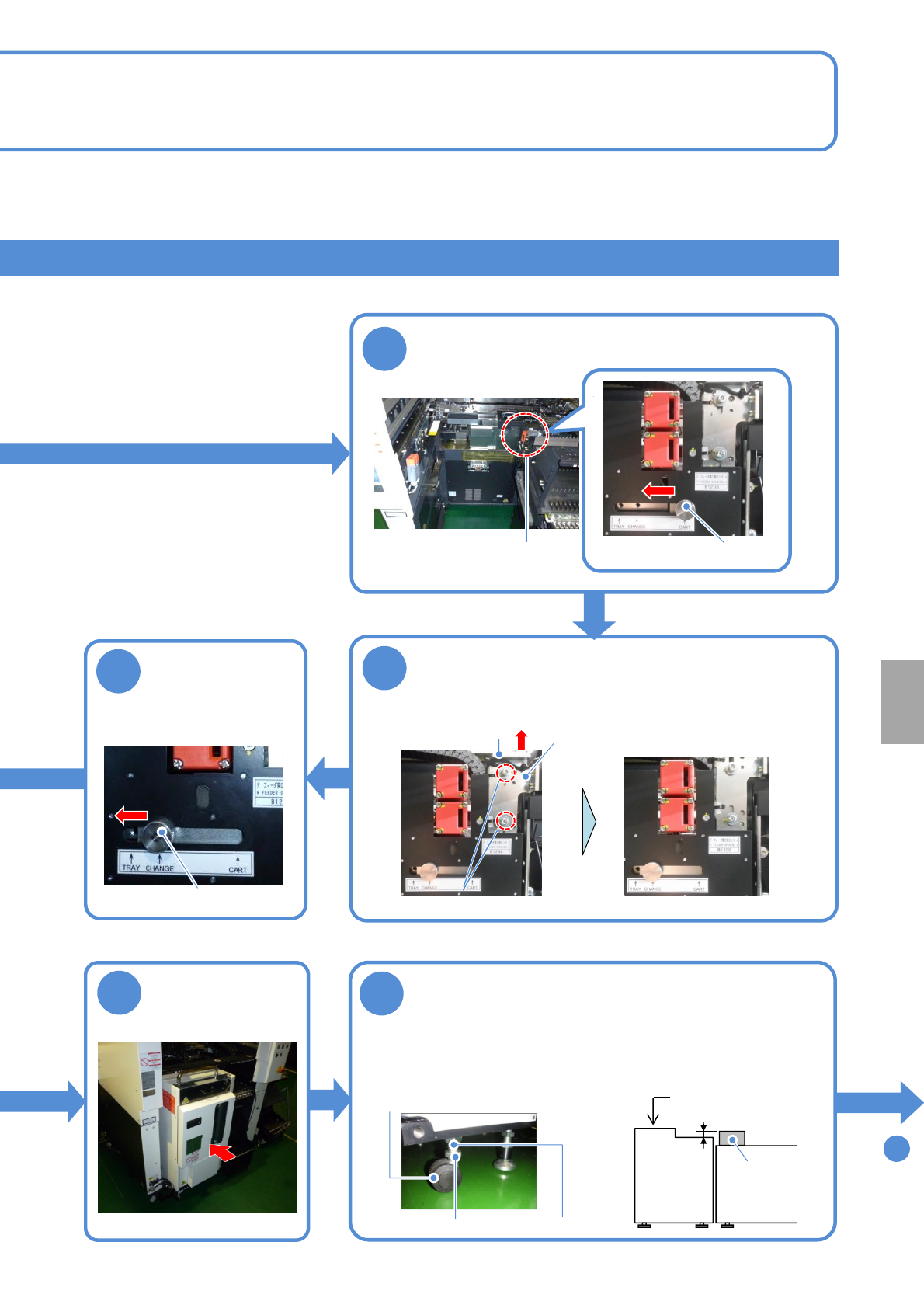

To
22
13
Loosen the knob, move it from “TRAY” to
“CHANGE” and fix
Knob
14
19 2 mm
20
Attach the tray
feeder
21
Sensor switch
Installation
Adjust the height
1. Loosen the lock nuts.
2. Adjust the height using the
adjustment nuts.
3. Tighten the lock nuts.
Tray feeder
Mult-
recognition
camera
Level gauge
●Adjust the height/level of the feeder
as shown in the figure below
The bubble should stay within 1
division (0.1 mm/m)
Lock nut
Adjustment nut
●Casters: 4 pcs
15
Loosen the knob,
move it from
“CHANGE” to
“TRAY” and fix
Knob
Loosen the screws, pull the knob, move the
sensor bracket upward and temporarily fix the
screws
Sensor switch
Sensor bracket
●Screw: M4 2 locations
Loosen the screws all the way
knob
NPM-TT2 EJM1EE-MB-14M-02
14-9-13
Maintenance
14-9
How to switch the 17-slot
feeder cart and the single
tray feeder 7
Fix location
Joint screw A
26
27
ON
Unlock the
machine and
22
Remove the joint screw A and install it to the
fix position
Remove the cable and pipe from the cable tie and install to the machine
25
The tray feeder is fixed to the machine
②Switching the 17-slot feeder cart to the single tray feeder 3
Cable tie
Clamping
band
Cable pipe
●Do not remove the clamping band
