NPM- TT2 EJ M1EE-MB-14M-0 2 14-9 -13 Maintenance 14-9 Ho w to s witch the 17-slot f eeder car t and the single tr ay f eeder 7 Fix location Joint screw A 26 27 ON Unlock the machine and 22 Remove the joint screw A and in…
NPM-TT2 EJM1EE-MB-14M-02
14-9-12
To
22
13
Loosen the knob, move it from “TRAY” to
“CHANGE” and fix
Knob
14
19 2 mm
20
Attach the tray
feeder
21
Sensor switch
Installation
Adjust the height
1. Loosen the lock nuts.
2. Adjust the height using the
adjustment nuts.
3. Tighten the lock nuts.
Tray feeder
Mult-
recognition
camera
Level gauge
●Adjust the height/level of the feeder
as shown in the figure below
The bubble should stay within 1
division (0.1 mm/m)
Lock nut
Adjustment nut
●Casters: 4 pcs
15
Loosen the knob,
move it from
“CHANGE” to
“TRAY” and fix
Knob
Loosen the screws, pull the knob, move the
sensor bracket upward and temporarily fix the
screws
Sensor switch
Sensor bracket
●Screw: M4 2 locations
Loosen the screws all the way
knob
NPM-TT2 EJM1EE-MB-14M-02
14-9-13
Maintenance
14-9
How to switch the 17-slot
feeder cart and the single
tray feeder 7
Fix location
Joint screw A
26
27
ON
Unlock the
machine and
22
Remove the joint screw A and install it to the
fix position
Remove the cable and pipe from the cable tie and install to the machine
25
The tray feeder is fixed to the machine
②Switching the 17-slot feeder cart to the single tray feeder 3
Cable tie
Clamping
band
Cable pipe
●Do not remove the clamping band
NPM-TT2 EJM1EE-MB-14M-02
14-9-14
エア圧の確認
24

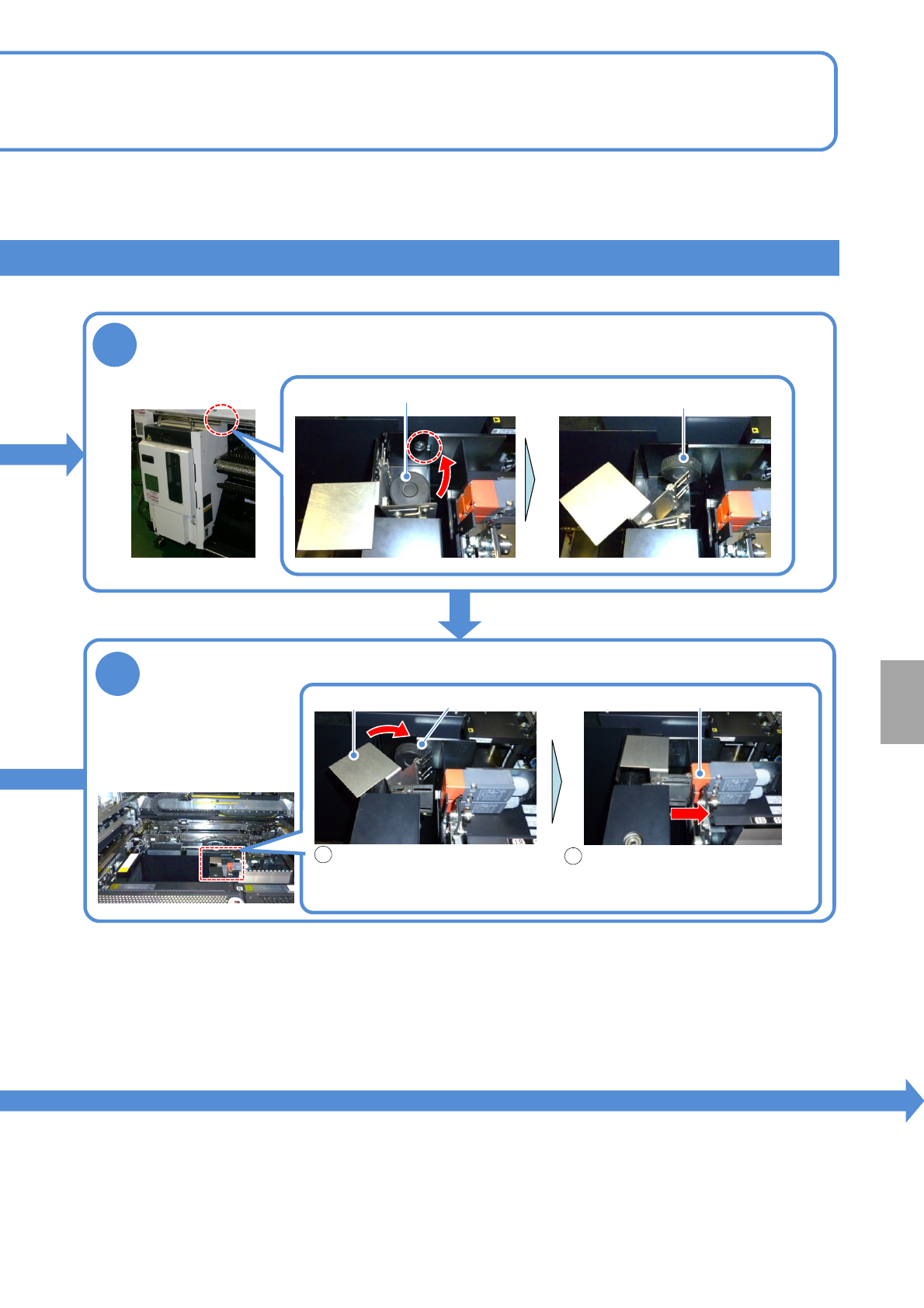

Turn ON the safety switch of the tray feeder
Slide the handle to the right and
insert the metal fitting to the
safety switch
Turn the handle 45 degree
clockwise in such a way that it
does not come into contact with
the joint screw B
1
2
Safety switch
Hand
le
Joint screw B
Joint screw B
Fix position
23
Remove the joint screw B and install it to the fix position
To the air
pressure check
The tray feeder is fixed to the machine
Installation
