NPM-TT2 EJM1EE-MB-14M-02
14-9-13
Maintenance
14-9
How to switch the 17-slot
feeder cart and the single
tray feeder 7
Fix location
Joint screw A
26
27
ON
Unlock the
machine and
22
Remove the joint screw A and install it to the
fix position
Remove the cable and pipe from the cable tie and install to the machine
25
The tray feeder is fixed to the machine
②Switching the 17-slot feeder cart to the single tray feeder 3
Cable tie
Clamping
band
Cable pipe
●Do not remove the clamping band
NPM-TT2 EJM1EE-MB-14M-02
14-9-14
エア圧の確認
24
Turn ON the safety switch of the tray feeder
Slide the handle to the right and
insert the metal fitting to the
safety switch
Turn the handle 45 degree
clockwise in such a way that it
does not come into contact with
the joint screw B
1
2
Safety switch
Hand
le
Joint screw B
Joint screw B
Fix position
23
Remove the joint screw B and install it to the fix position
To the air
pressure check
The tray feeder is fixed to the machine
Installation
NPM-TT2 EJM1EE-MB-14M-02
14-9-15

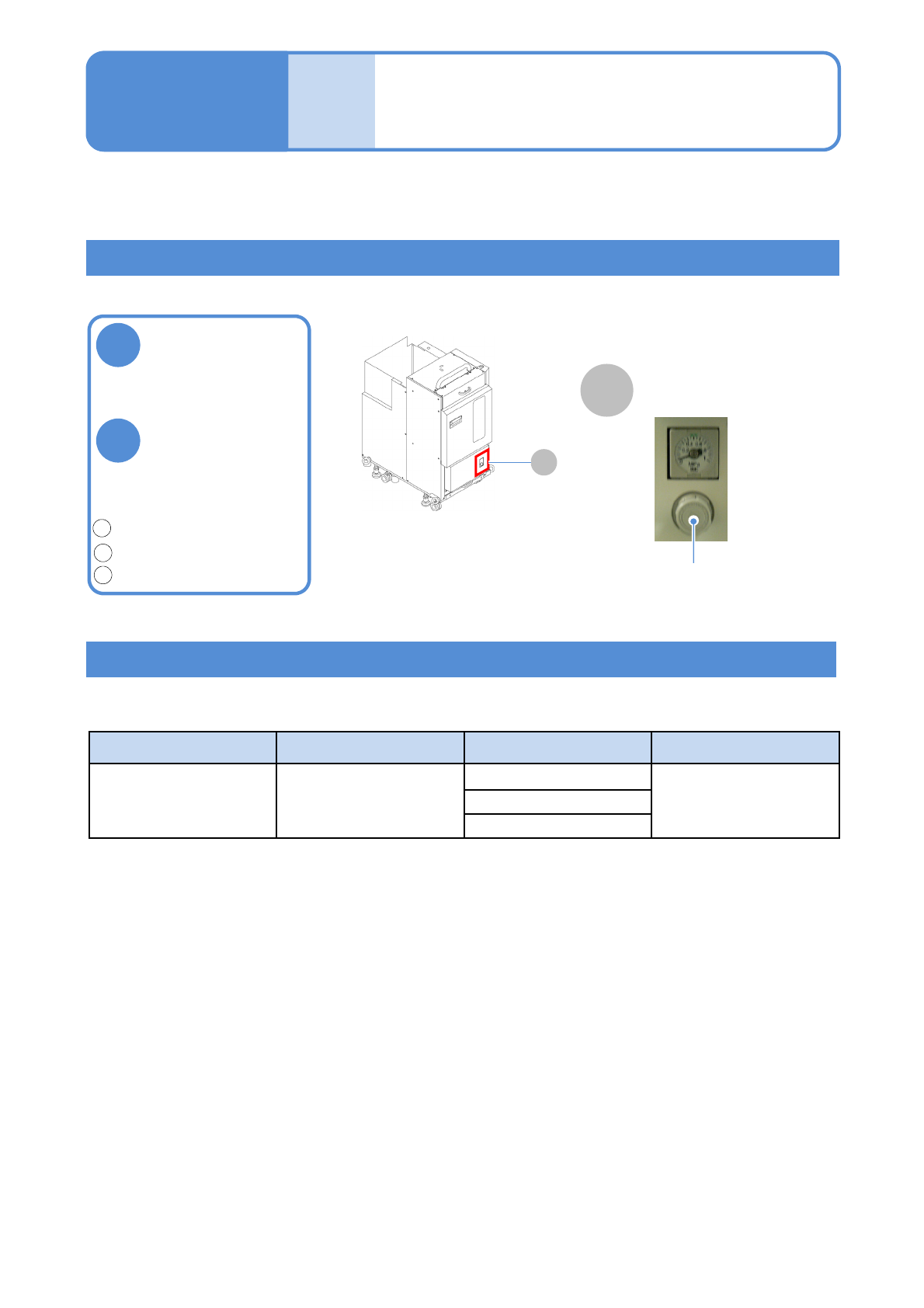

Checking the air pressure
A
A
How to switch the 17-slot
feeder cart and the single
tray feeder 8
Maintenance
14-9
1
2
Check the air
pressure
●Air pressure:
0.30 to 0.35 MPa
If it is outside the
specified range,
adjust the air
pressure by
turning the
regulator knob
1
2
3
Regulator
■Single tray feeder
Air pressure gauge
Calibration
STEP Item Action Reference
STEP4 Tray
Pickup height
(→P.13-1-2、13-13)
Pickup position 1
Pickup position 2
If the tray feeder is removed or installed, calibration must be performed.
Unlock.(pull it forward)
Adjust the pressure.(rotate)
Lock.(push it rearward)
