NPM- TT2 EJM1E E-MB-17M-00 17-1 Maintenance 17-1 Switc h pr oce ss T ime required ： Single tray feeder ⇔ 17-slot feeder cart 30 minutes each T ool used ： Spanner 30 mm (2) Allen wrench (3 mm, 4 mm, 5 mm, 8 mm) Wrench wid…
17 Appendix
NPM-TT2 EJM1EE-MB-17M-00
17-1
Maintenance
17-1
Switch process
Time required：Single tray feeder ⇔ 17-slot feeder cart 30 minutes each
Tool used：Spanner 30 mm (2)
Allen wrench (3 mm, 4 mm, 5 mm, 8 mm)
Wrench width
Spanner width
This chapter describes the summarized version of the procedure to switch between the cart and tray feeder.
Separate this chapter and use at the working site as necessary.
For details, see the followings.
(→ P.14-9)
NPM-TT2 EJM1EE-MB-17M-00
Maintenance
17-2-1
Prepara-
tion of
switch
17-2-1

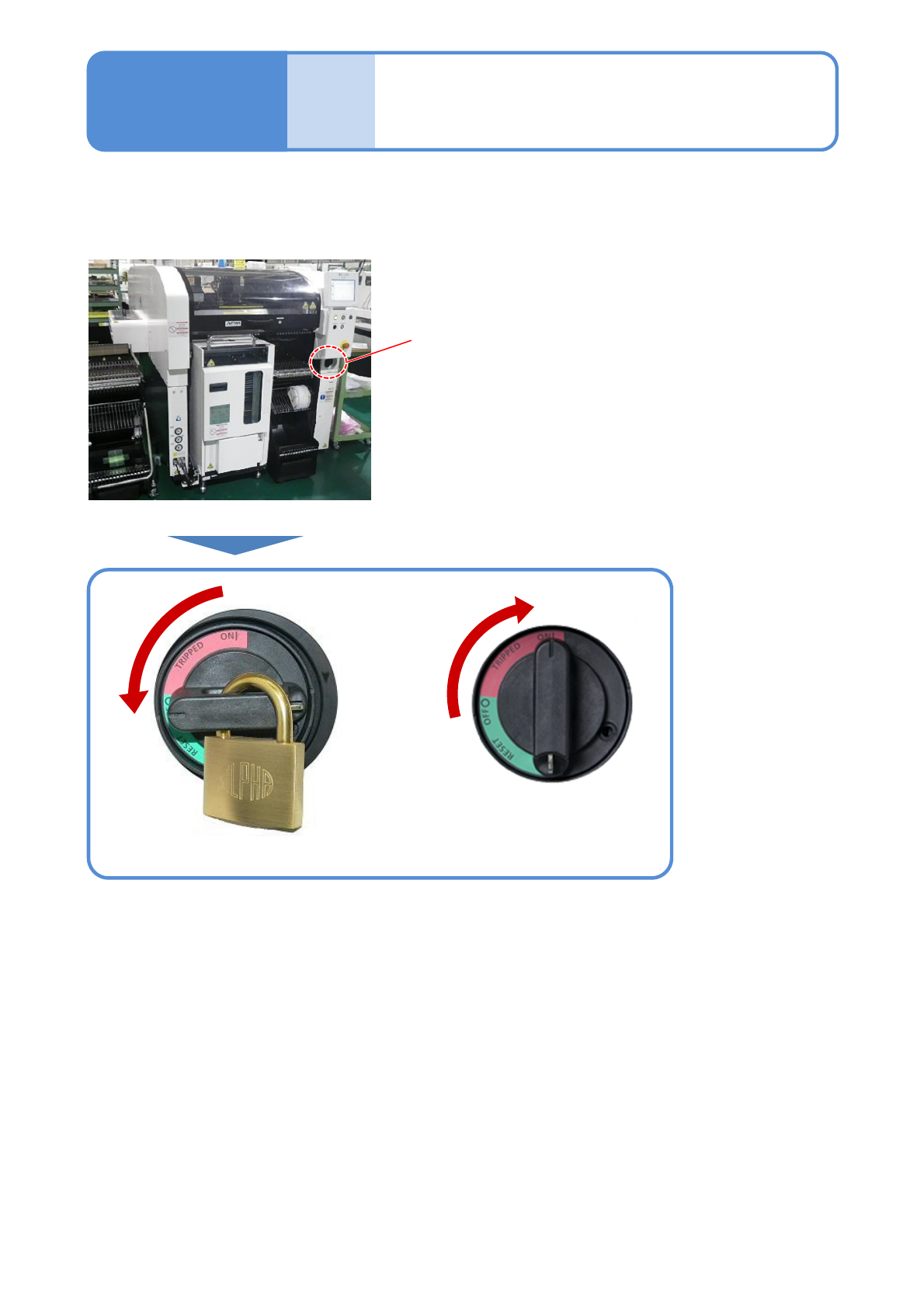

Power ON/OFF
OFF
ON
OFF state ON state
(Front side)
Describes the procedure of the common process for switching between the 17-slot feeder cart and tray
feeder.
Main power
supply switch
