NPM- TT2 EJM1 EE-MB-17M-00 Maintenance 17-2-3 17-2-3 Attac h and detach method of feeder table co v er Describes the proced ure of the common process for swit ching between the 17-slot feeder cart and tray feeder. (One e…
NPM-TT2 EJM1EE-MB-17M-00
Maintenance
17-2-2
Prepara-
tion of
switch
17-2-2

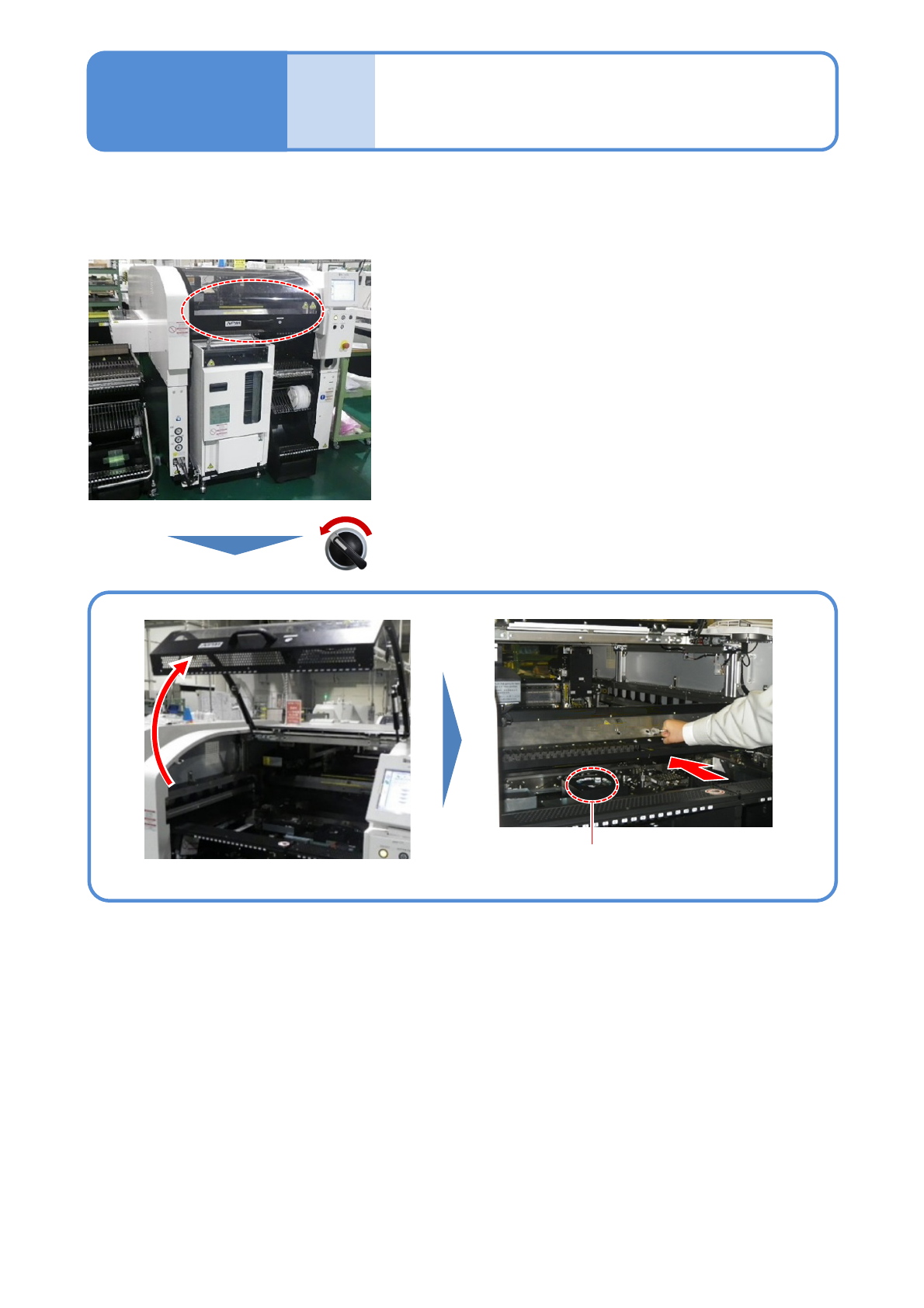

Pushing the X-axis
Open the cover
Hold the handle and push in
the X-axis further than the
multi-recognition camera
Describes the procedure of the common process for switching between the 17-slot feeder cart and tray
feeder.
After turning off the servo
NPM-TT2 EJM1EE-MB-17M-00
Maintenance
17-2-3
17-2-3

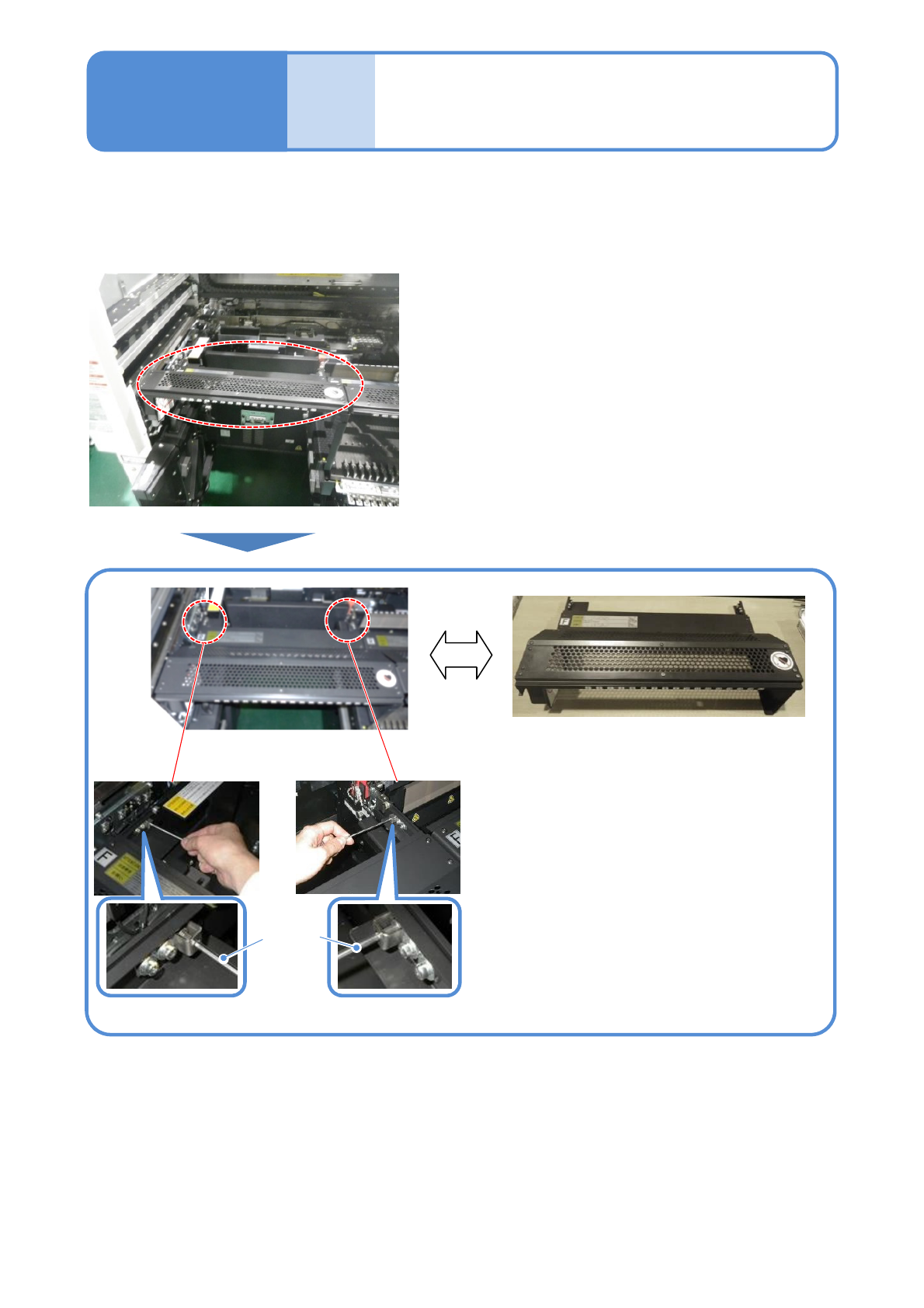

Attach and detach method
of feeder table cover
Describes the procedure of the common process for switching between the 17-slot feeder cart and tray
feeder.
(One each screw (M4) on each side
Allen
wrench
(3 mm)
Installed state of feeder
table cover
Removed state of feeder table cover
Prepara-
tion of
switch
NPM-TT2 EJM1EE-MB-17M-00
Maintenance
17-2-4
Prepara-
tion of
switch
17-2-4
Attach and detach
method of grommet
Describes the procedure of the common process for switching between the 17-slot feeder cart and tray
feeder.
When the 17-slot feeder cart is
attached, fit grommets into the
holes on the lower side of the main
unit
When the single tray
feeder is attached, store
them in (f) Part box of the
switch cart
