NPM- TT2 EJM1E E-MB-17M-00 Maintenance 17-3-1 Name and layout P ar ts layout installed to the f eeder car t Describes the proced ure of the common items for switching between the 17-slot feeder cart and tray feeder. (b) …
NPM-TT2 EJM1EE-MB-17M-00
Maintenance
17-2-4
Prepara-
tion of
switch
17-2-4

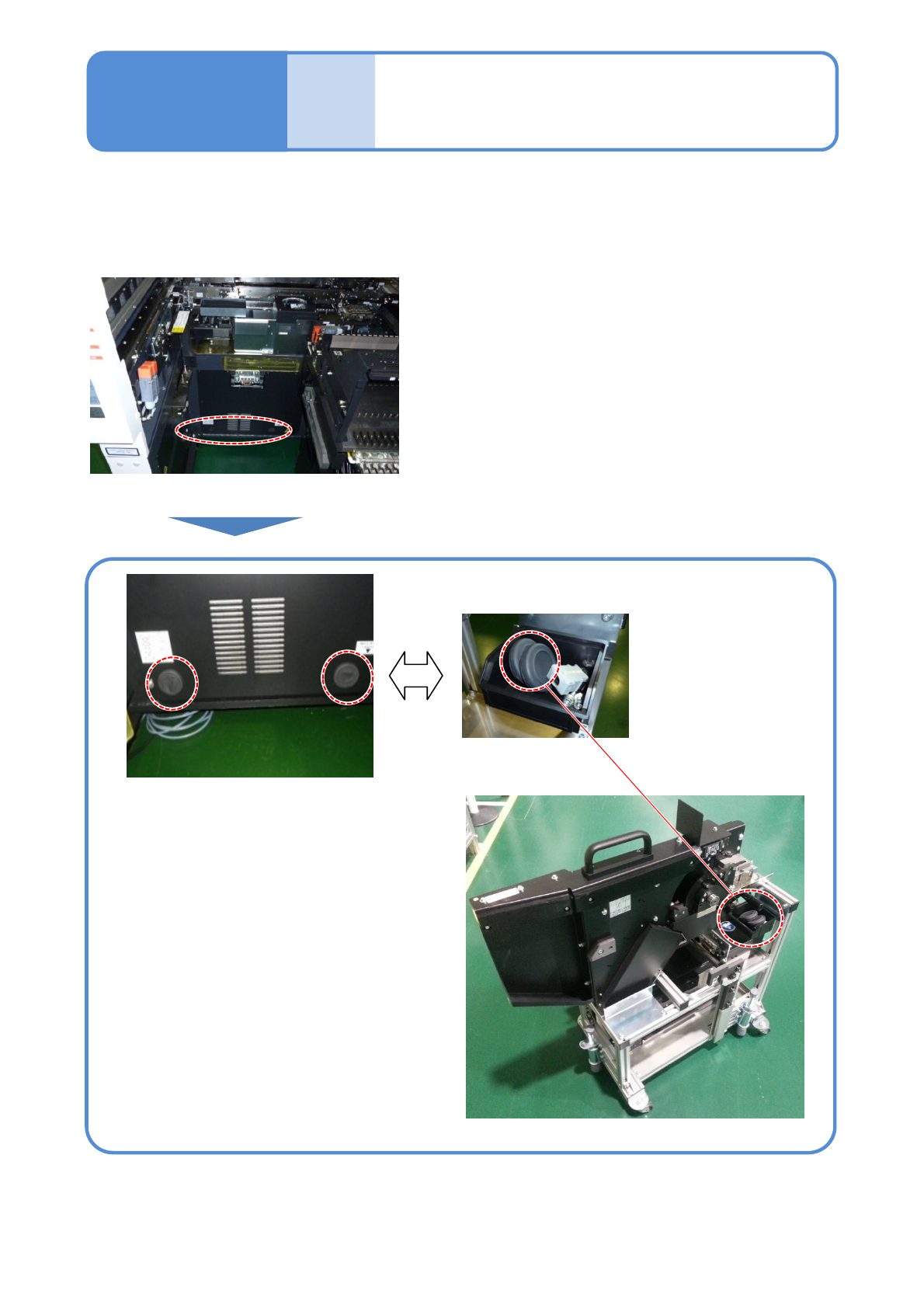

Attach and detach
method of grommet
Describes the procedure of the common process for switching between the 17-slot feeder cart and tray
feeder.
When the 17-slot feeder cart is
attached, fit grommets into the
holes on the lower side of the main
unit
When the single tray
feeder is attached, store
them in (f) Part box of the
switch cart
NPM-TT2 EJM1EE-MB-17M-00
Maintenance
17-3-1
Name
and
layout
Parts layout installed
to the feeder cart
Describes the procedure of the common items for switching between the 17-slot feeder cart and tray feeder.
(b) Drive guide
(a) Cart drive unit
(e) Extension drawer
(c) Cart guide
Switch parts are stored in the cart
(d) Safety cover
17-3-1
Grommet
(2 pieces)
Short
connector
Screw:M6
(2 pieces)
(f) Part box and stored parts in the box
NPM-TT2 EJM1EE-MB-17M-00
Maintenance
17-3-2
Name
and
layout
Parts layout when the
single tray feeder is used
Describes the procedure of the common items for switching between the 17-slot feeder cart and tray feeder.
(f) Short connector
(f) Screw:M6 (2 pieces)
17-3-2
