NPM- TT2 EJM1 EE-MB-17M-00 Switc h fr om the 17-slot f eeder car t to the sing le tr ay feeder 1 Descr ibes the pro cedure for switch ing from the 17-s lot feeder ca rt to the tray feeder. Maintenance 17-5 T urn OFF the …
NPM-TT2 EJM1EE-MB-17M-00

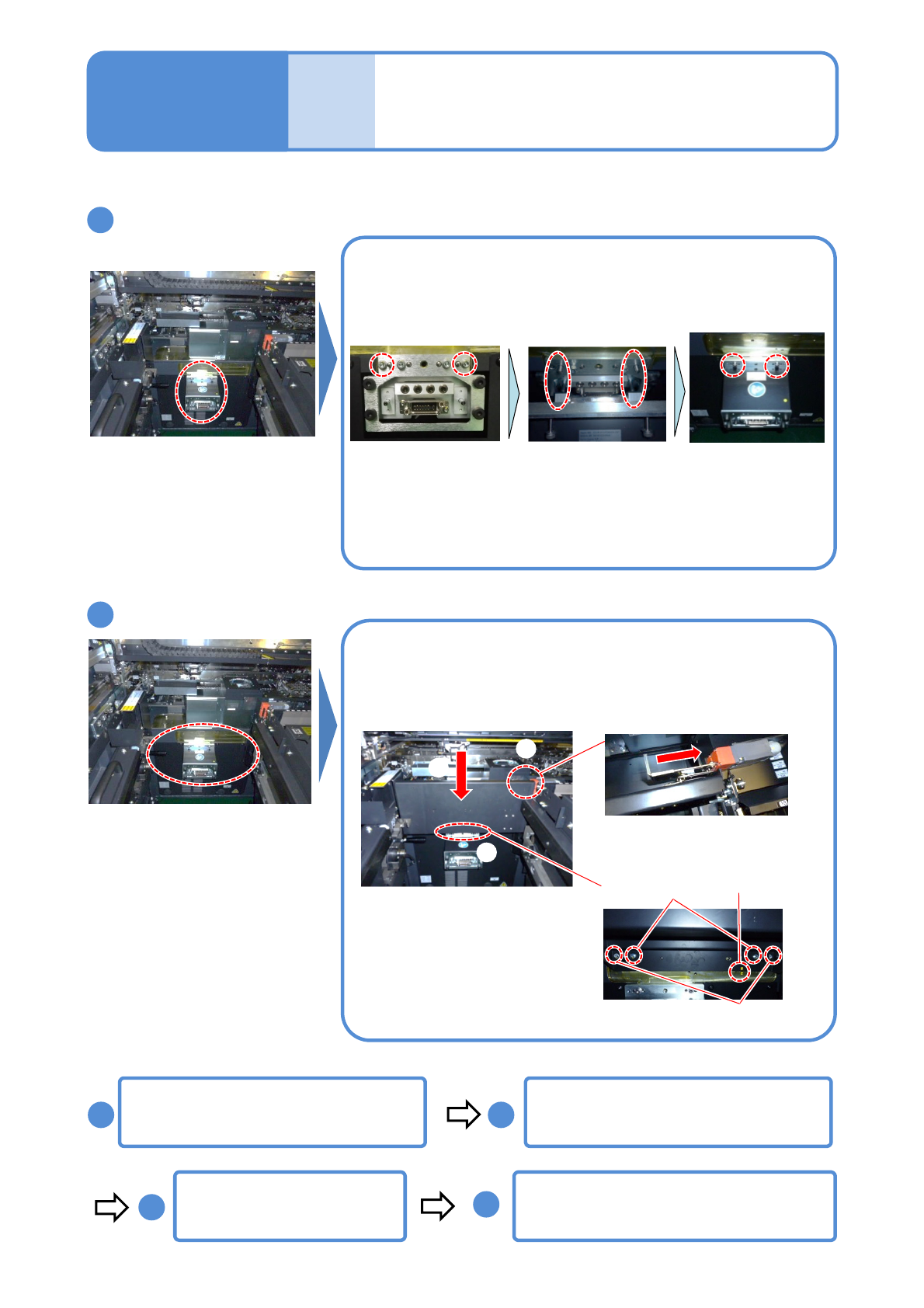

Attach the extension drawer
Attach the safety cover
①Remove the screws
(5 mm Allen wrench)
●2 locations
③Tighten the screws
(5 mm Allen wrench)
●2 locations
①Insert the safety cover from
the top
③Insert the metal part of the
safety cover to the safety
switch
②Adjust the pin and seal position s
and tighten the screws
(5mmAllen wrench) ●2 locations
②Place the
extension drawer
and adjust the
position with pins
Attach the feeder table
cover (→ P.17-2-3)
Close the safety cover
Power ON (→P.17-2-1)
Attach the 17-slot feeder cart
and switching is complete
Use (e) Extension drawer of the switch cart (→P.17-3-1)
Use (d) Safety cover of the switch cart (→P.17-3-1)
Store the removed screws in the switch cart (→P.17-3-1)
①
②
③
17-4-4
13
11
12
14
15
16
Pin
Screw
Seal
Switch from the single
tray feeder to the 17-slot
feeder cart 4
Maintenance
17-4
NPM-TT2 EJM1EE-MB-17M-00
Switch from the 17-slot
feeder cart to the single
tray feeder 1
Describes the procedure for switching from the 17-slot feeder cart to the tray feeder.
Maintenance
17-5
Turn OFF the power
(→ P.17-2-1)
Detach the feeder cart
Push the X-axis
inward (→P.17-2-2)
Detach the feeder table
cover (→P.17-2-3)
Detach the safety cover
③Pull the safety cover upward
to remove
①Release the safety switch
①
②
③
②Loosen the screw
(5 mm Allen wrench)
●2 locations
Store the removed (d) Safety cover in the switch cart (→P.17-3-1)
17-5-1
1 2
3
4
5
NPM-TT2 EJM1EE-MB-17M-00
Remove the extension drawer
Remove the cart drive unit
Store the removed (a) Cart drive unit in the switch cart
(→P.17-3-1)
C
①Remove the cable and
plug the connectors to ‘C’
Use (f) Short connector of the switch cart (→P.17-3-1)
②Loosen the screws
(8 mm Allen wrench)
③Rotate the cart drive unit in a
counterclockwise and pull it out toward you
●2 locations
17-5-2
6
③Put and tighten the screws
(5 mm Allen wrench)
●2 locations
①Loosen the screws
(5 mm
Allen wrench) ●2 locations
②Remove the extension
drawer
Use (f) Screw: M6 (two pieces) of the switch cart (→P.17-3-1)
Store the removed (e)Extension drawer in the switch cart
(→P.17-3-1)
7
Switch from the 17-slot
feeder cart to the single
tray feeder 2
Maintenance
17-5
