NPM- TT2 EJM1 EE-MB-17M-00 Remove the extension drawer Remove the cart drive unit Store the removed (a) Cart drive unit in the switch cart ( → P.17-3-1) C ① Remove the cable and plug the connect ors to ‘C’ Use (f) Short …
NPM-TT2 EJM1EE-MB-17M-00
Switch from the 17-slot
feeder cart to the single
tray feeder 1
Describes the procedure for switching from the 17-slot feeder cart to the tray feeder.
Maintenance
17-5
Turn OFF the power
(→ P.17-2-1)
Detach the feeder cart
Push the X-axis
inward (→P.17-2-2)
Detach the feeder table
cover (→P.17-2-3)
Detach the safety cover
③Pull the safety cover upward
to remove
①Release the safety switch
①
②
③
②Loosen the screw
(5 mm Allen wrench)
●2 locations
Store the removed (d) Safety cover in the switch cart (→P.17-3-1)
17-5-1
1 2
3
4
5
NPM-TT2 EJM1EE-MB-17M-00
Remove the extension drawer
Remove the cart drive unit
Store the removed (a) Cart drive unit in the switch cart
(→P.17-3-1)
C
①Remove the cable and
plug the connectors to ‘C’
Use (f) Short connector of the switch cart (→P.17-3-1)
②Loosen the screws
(8 mm Allen wrench)
③Rotate the cart drive unit in a
counterclockwise and pull it out toward you
●2 locations
17-5-2
6
③Put and tighten the screws
(5 mm Allen wrench)
●2 locations
①Loosen the screws
(5 mm
Allen wrench) ●2 locations
②Remove the extension
drawer
Use (f) Screw: M6 (two pieces) of the switch cart (→P.17-3-1)
Store the removed (e)Extension drawer in the switch cart
(→P.17-3-1)
7
Switch from the 17-slot
feeder cart to the single
tray feeder 2
Maintenance
17-5
NPM-TT2 EJM1EE-MB-17M-00
Switch from the 17-slot
feeder cart to the single
tray feeder 3
Maintenance
17-5

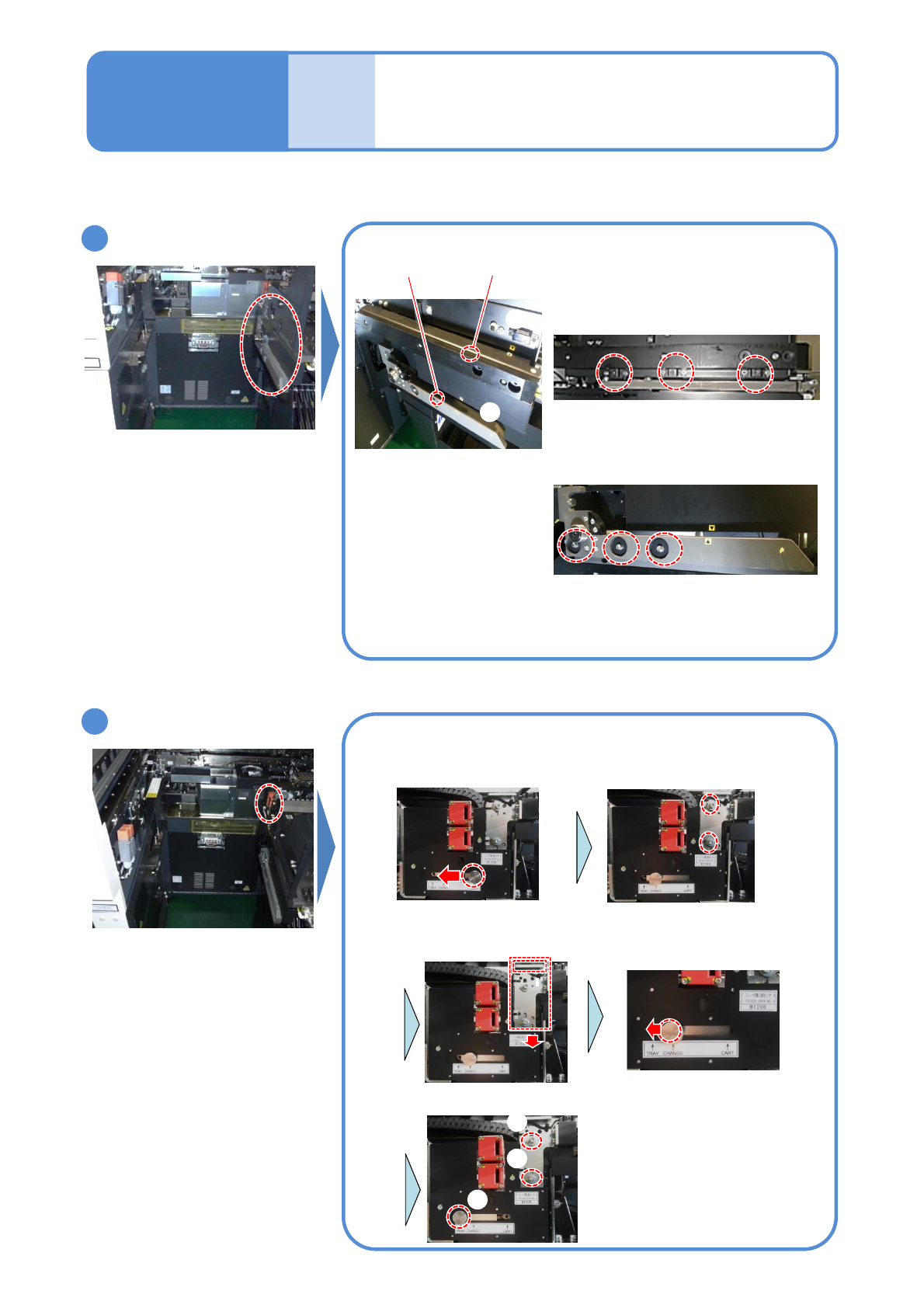

Switch the sensor
Loosen the knob and
fix it at the [CHANGE]
position
Tighten the screws all the way
Pull the knob and move
up the bracket approx. 10
mm
Loosen the knob and
temporarily fix it at the
[CART] position
①Tighten the screws
①
②
②Finally tighten the knob
①
17-5-3
Remove the guides
(two types)
Loosen the screws of (b) Drive guide and (c) Cart guide and
remove them
②Cart guide
①Drive guide
①
②
Store the (b) Drive guide and (c) Cart guide in the switch cart
(→P.17-3-1)
(4 mm Allen wrench) ●3 location
8
9
(4 mm Allen wrench) ●3 location
(3 mm Allen wrench) ●2 location
(3 mm Allen wrench)
●2 location
