Overview
Periodic inspection points
by unit 1
<Type in common>

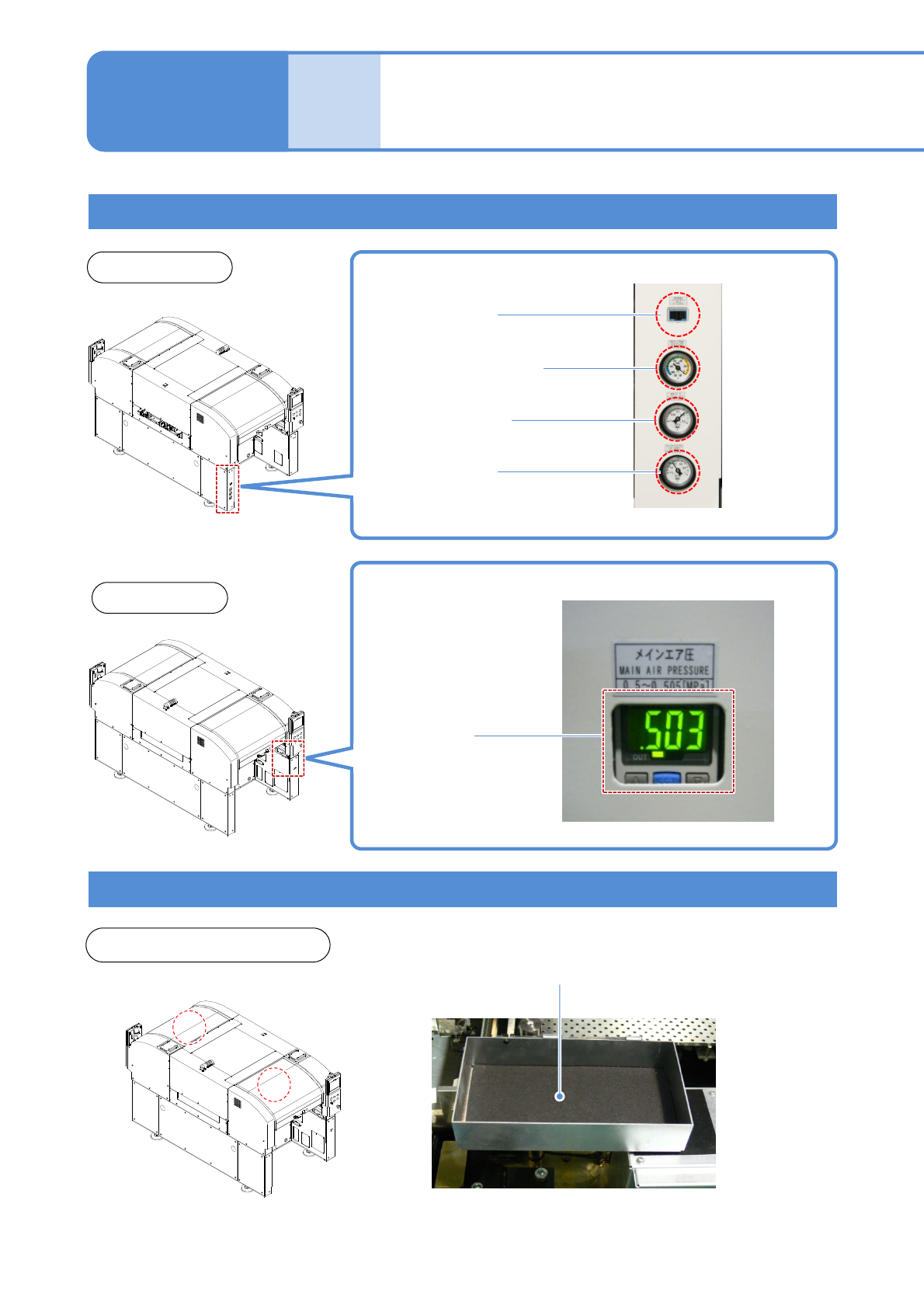

Pressure gauges
Components-ejection box
2-1-6-1
Maintenance
2-1-6
Front side
Rear side
Main air
pressure
Components-ejection box
Front and rear sides
Vacuum
break
pressure
Vacuum pump
supply pressure
Clean blow
pressure
Option air
pressure
NPM-TT2 EJM1EE-MB-02M-01
2-1-6-2
Color touchscreen
XY unit
Vacuum pump
Vacuum pump
Rear side
Front and rear sides
Front and rear sides
Touchscreen
Overview
Y-axis cable bearer
X-axis linear guide
X-axis cable bearer
Y-axis linear guide
NPM-TT2 EJM1EE-MB-02M-01
Overview
PCB conveyor
2-1-6-3
Maintenance
2-1-6
Front and rear sides
Extension conveyor
Front side
*Number of PCB detection sensors;
・4 for the transparency type
・2 for the reflection type
PCB transfer belt
PCB detection
sensor
Periodic inspection points
by unit 2
<Type in common>
PCB detection
sensor
Width-adjustment
ball screw
PCB transfer belt
PCB support block
Linear guide
Ball spline
PCB transfer
belt
