SIPLACE SX
UNBEATABLE FLEXIBILITY
THE SIPLACE SX ADAPTS TO YOUR NEEDS
The SIPLACE SX is the world’s leading placement platform for high-mix electronics
production. Its exibility begins with its huge component spectrum that is covered by three
improved placement heads: CP20, CPP, and TWIN. It also oers many feeder and con-
veyor options. Even odd-shaped components can be supplied with exceptional reliability.
Smaller boards with sizes of up to 450 mm by 260 mm can be moved with the ecient
dual conveyor, and with the optional Smart Transport Module you can process boards that
are up to 1,525 mm by 560 mm large.
OSC Package
Where others give up, the SIPLACE SX pushes the envelope with its OSC Package.
The enhanced component diversity minimizes manual labor, and the machine’s integrated
process controls maximize your yield.

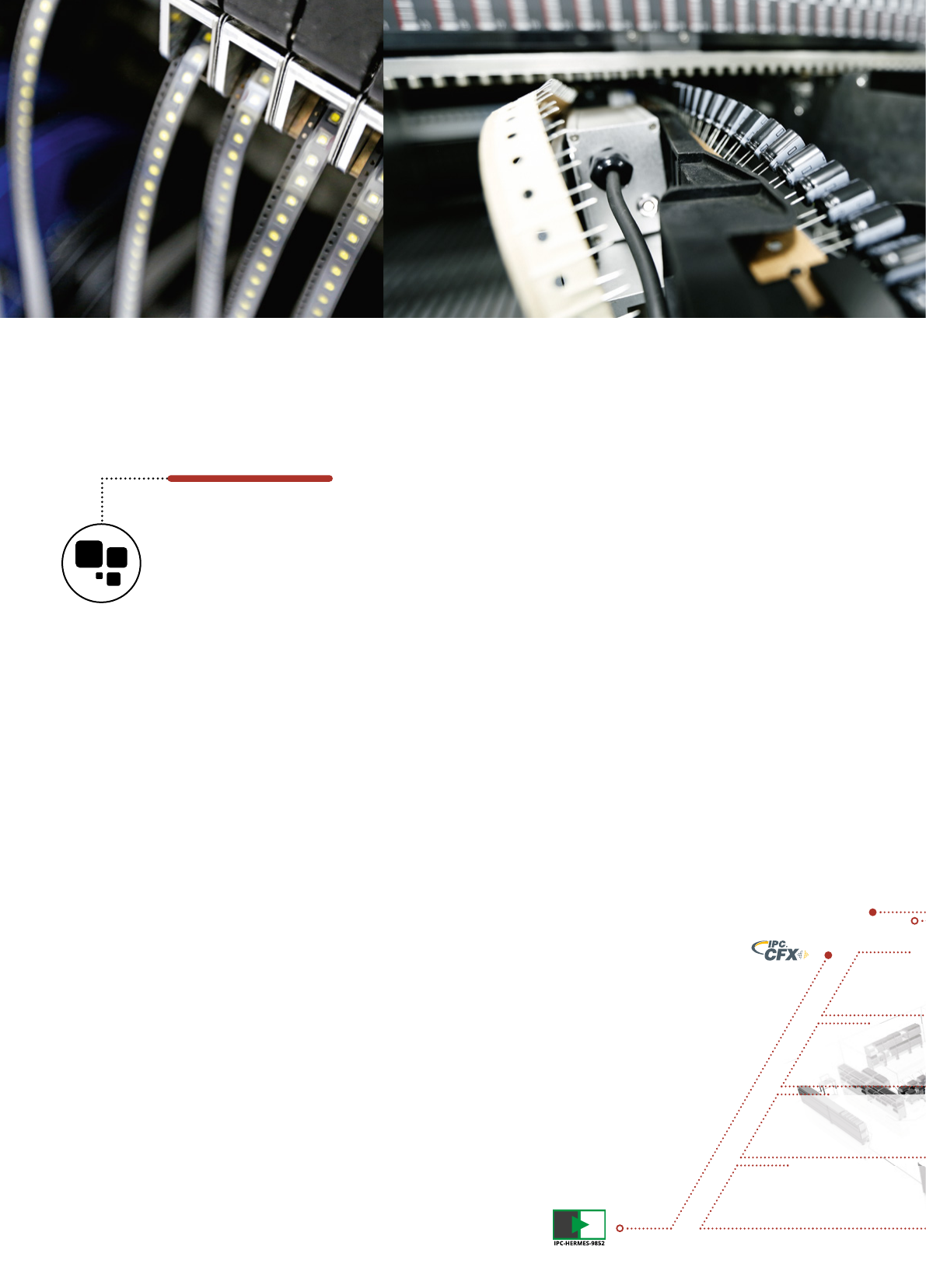

Third-Party Feeder
Open interfaces permit the use of a wide range of feeders – also from third-party
suppliers.
3D images
The SIPLACE SX generates 3D images by combining two oset images taken by the
high-resolution component camera. In this way, even damaged THT pins can be reliably
detected. It also performs targeted on-board checks of highly critical areas for correct
solder pads, missing components under shields, and correct positioning.
Snap-in detection
During the assembly process, the SIPLACE SX continuously checks the vertical position
of components to ensure their correct placement.
Placement force
The SIPLACE SX features total placement force control from touchless
placement and 0.5 N to 100 N, from the placement of sensitive LEDs to
that of robust connectors.
Acceleration
No unnecessary slow-downs: The SIPLACE SX
further improves your productivity by automatically
determining the best travel speeds for OSCs.
Equipment Level
Shop Floor Level
Factory Level
Multi Factory Level
Cloud Services
4
SIPLACE SX
UNBEATABLE FLEXIBILITY
SIPLACE SX
SIMPLY SMART
FEWER OPERATOR ASSISTS, MORE UTILIZATION
The latest generation of the SIPLACE SX features a whole series of intelligent functions
that relieve your sta from many manual adjustments or time-consuming assists and
turn them into what we call ‘smart operators’.
Nozzle ID
No more errors caused by wrong nozzles. The SIPLACE SX recognizes the nozzle ID
and reliably selects the right nozzle from the randomly lled magazine with up to
320 nozzles.
Nozzle management
The SIPLACE SX regularly analyzes each nozzle’s condition, cleans them automatically,
and discards damaged nozzles.
Feeder pitch
After each new setup, production job, feeder change or splice, the SIPLACE SX
automatically determines the correct pitch setting for 8-mm tapes.
Smart operator guidance
If you have to deal with insuciently described components, new ducials or doubts
regarding the correct placement height, the SIPLACE SX provides wizards that make
it easy to enter and/or verify information directly at the machine or remotely for faster
production starts.
Predictive maintenance
Sensors monitor the SIPLACE SX’s condition and support predictive maintenance
concepts.
Equipment Lev
el
Shop Floor Level
Factory Level
Multi Factory Level
Cloud Services
Open interfaces
The SIPLACE SX produces not
only electronic modules, but lots of
valuable status and process data.
Open interfaces like
WORKS Operator Information Broker,
IPC-CFX or IPC-HERMES-9852
provide access to this data and
integrate the SIPLACE SX into
workows, MES, traceability and
cloud solutions for the smart
integrated factory from ASMPT or
from other machine manufacturers.
5
Freely transfer
placement performance
between lines
Increase your feeder
slots and your exibility
where needed
Scale your SMT lines in
concert with ramp-ups
Accommodate demand
peaks quickly and
risk-free via attractive
rental terms
A
B
THE UNIQUE INTERCHANGEABLE GANTRIES OF THE
SIPLACE SX DELIVER SCALABILITY AND A NEW LEVEL
OF FLEXIBILITY.
Free yourself from the bonds of rigid line concepts and capacities.
Internal and external customers are becoming ever more demanding and set ever tighter
deadlines. Sales forecasts for a product are often wrong, both upward and downward,
resulting in wrongly congured lines with excess capacities or bottlenecks.
The SIPLACE SX provides an entirely new solution for volatile markets. Its interchangeable
gantries can be installed or removed in a few minutes. The resulting exibility allows you to
quickly increase the capacity of a line by adding more gantries or to move gantries from one
line to another to alleviate capacity bottlenecks.
The result: your production “breathes”, and your lines adapt their capacities to the demand.
CAPACITY ON DEMAND
PERFORMANCE WHERE IT’S NEEDED
SIPLACE SX
interchangeable
gantries
Capacity on demand by
fastest gantry exchange
