Freely transfer placement performance between lines Increase your feeder slots and your exibility where needed Scale your SMT lines in concert with ramp-ups Accommodate demand peaks quickly and risk-free via attractive …
SIPLACE SX
UNBEATABLE FLEXIBILITY
SIPLACE SX
SIMPLY SMART
FEWER OPERATOR ASSISTS, MORE UTILIZATION
The latest generation of the SIPLACE SX features a whole series of intelligent functions
that relieve your sta from many manual adjustments or time-consuming assists and
turn them into what we call ‘smart operators’.
Nozzle ID
No more errors caused by wrong nozzles. The SIPLACE SX recognizes the nozzle ID
and reliably selects the right nozzle from the randomly lled magazine with up to
320 nozzles.
Nozzle management
The SIPLACE SX regularly analyzes each nozzle’s condition, cleans them automatically,
and discards damaged nozzles.
Feeder pitch
After each new setup, production job, feeder change or splice, the SIPLACE SX
automatically determines the correct pitch setting for 8-mm tapes.
Smart operator guidance
If you have to deal with insuciently described components, new ducials or doubts
regarding the correct placement height, the SIPLACE SX provides wizards that make
it easy to enter and/or verify information directly at the machine or remotely for faster
production starts.
Predictive maintenance
Sensors monitor the SIPLACE SX’s condition and support predictive maintenance
concepts.
Equipment Lev
el
Shop Floor Level
Factory Level
Multi Factory Level
Cloud Services
Open interfaces
The SIPLACE SX produces not
only electronic modules, but lots of
valuable status and process data.
Open interfaces like
WORKS Operator Information Broker,
IPC-CFX or IPC-HERMES-9852
provide access to this data and
integrate the SIPLACE SX into
workows, MES, traceability and
cloud solutions for the smart
integrated factory from ASMPT or
from other machine manufacturers.
5
Freely transfer
placement performance
between lines
Increase your feeder
slots and your exibility
where needed
Scale your SMT lines in
concert with ramp-ups
Accommodate demand
peaks quickly and
risk-free via attractive
rental terms
A
B
THE UNIQUE INTERCHANGEABLE GANTRIES OF THE
SIPLACE SX DELIVER SCALABILITY AND A NEW LEVEL
OF FLEXIBILITY.
Free yourself from the bonds of rigid line concepts and capacities.
Internal and external customers are becoming ever more demanding and set ever tighter
deadlines. Sales forecasts for a product are often wrong, both upward and downward,
resulting in wrongly congured lines with excess capacities or bottlenecks.

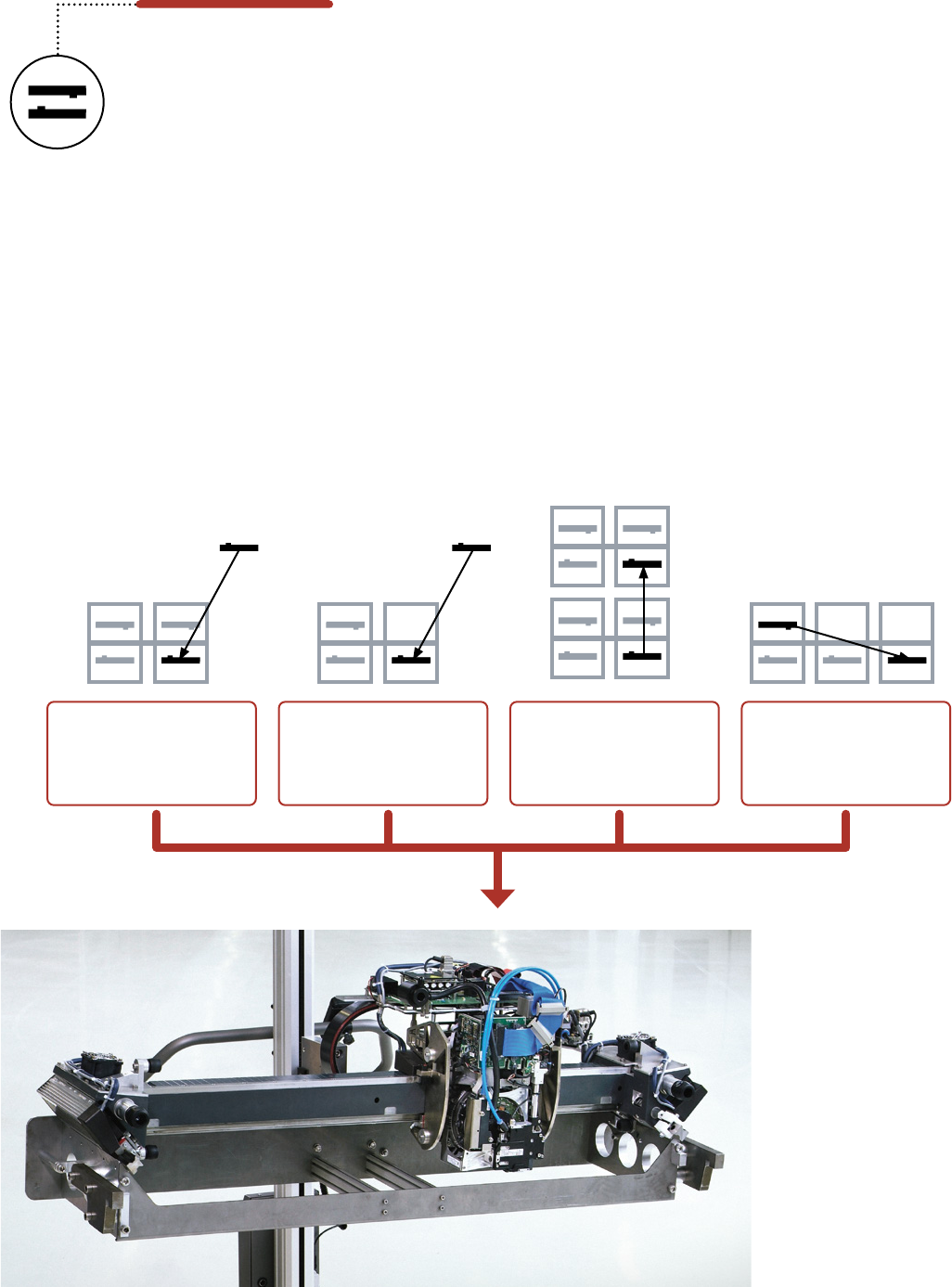

The SIPLACE SX provides an entirely new solution for volatile markets. Its interchangeable
gantries can be installed or removed in a few minutes. The resulting exibility allows you to
quickly increase the capacity of a line by adding more gantries or to move gantries from one
line to another to alleviate capacity bottlenecks.
The result: your production “breathes”, and your lines adapt their capacities to the demand.
CAPACITY ON DEMAND
PERFORMANCE WHERE IT’S NEEDED
SIPLACE SX
interchangeable
gantries
Capacity on demand by
fastest gantry exchange
6
CAPACITY ON DEMAND
PERFORMANCE WHERE IT’S NEEDED
SIPLACE SX

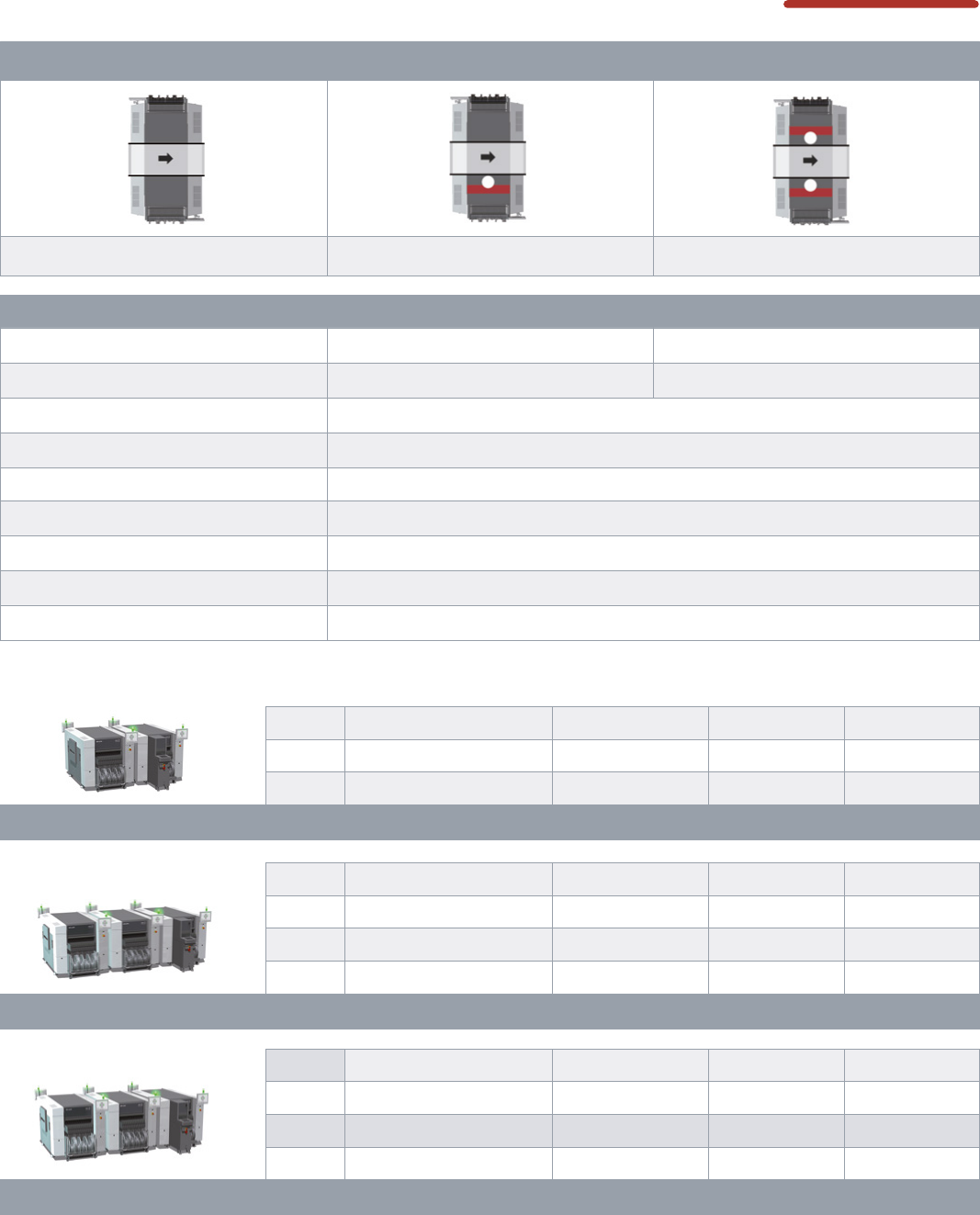

TECHNICAL DATA
Technical data* SIPLACE SX1 SIPLACE SX2
Placement speed** 43,000 cph 86,500 cph
Placement speed (IPC) 33,000 cph 66,000 cph
Feeder capacity 120 × 8-mm slots
Component spectrum 0201 (metric) to 200 mm × 110 mm × 50 mm
Board size 50 mm × 50 mm to 1,525 mm × 560 mm
Machine dimensions
(L x W x H) 1.5 m × 2.4 m × 1.6 m
Placement heads Placement Head CP20P2, Placement Head CPP, Placement Head TH
Placement accuracy 22 µm @ 3 σ (with Placement Head TH)
Conveyors Single-track conveyor, flexible dual-track conveyor
Sample lines
* Performing professional maintenance in the scope and intervals recommended by ASMPT ensures that your SIPLACE equipment will deliver the specified
performance and accuracy across its entire life cycle. Our maintenance contracts make this job even easier for you.
** SIPLACE benchmark
*** SIPLACE Waffle Pack Changer
SIPLACE SX+ SIPLACE SX1 SIPLACE SX2
Added feeder capacity Flexible production High-speed production
Placement Speed** Feeders Length
SX2 CP20P2/CP20P2 86,500 cph 120 1.5 m
SX1 CPP (low) 23,000 cph 120 1.5 m
SX2 TWIN/CPP (high) 27,000 cph 90 1.5 m
Automotive line (SIPLACE SX2 + SIPLACE SX1 + SIPLACE SX2 + SIPLACE WPC) 136,500 cph 330 4.5 m
Placement Speed** Feeders Length
SX2 CP20P2/CPP (low) 66,000 cph 120 1.5 m
SX1 CPP (high) 21,500 cph 120 1.5 m
SX1 TWIN 5,500 cph 90 1.5 m
EMS line (SIPLACE SX2 + SIPLACE SX1 + SIPLACE SX1 + SIPLACE WPC) 93,000 cph 330 4.5 m
Placement Speed** Feeders Length
SX2 CP20P2/CPP (low) 66,000 cph 120 1.5 m
SX2 TWIN/CPP (high) 27,000 cph 90 1.5 m
OEM line (SIPLACE SX2 + SIPLACE SX2 + SIPLACE WPC***) 93,000 cph 210 3 m
